Description

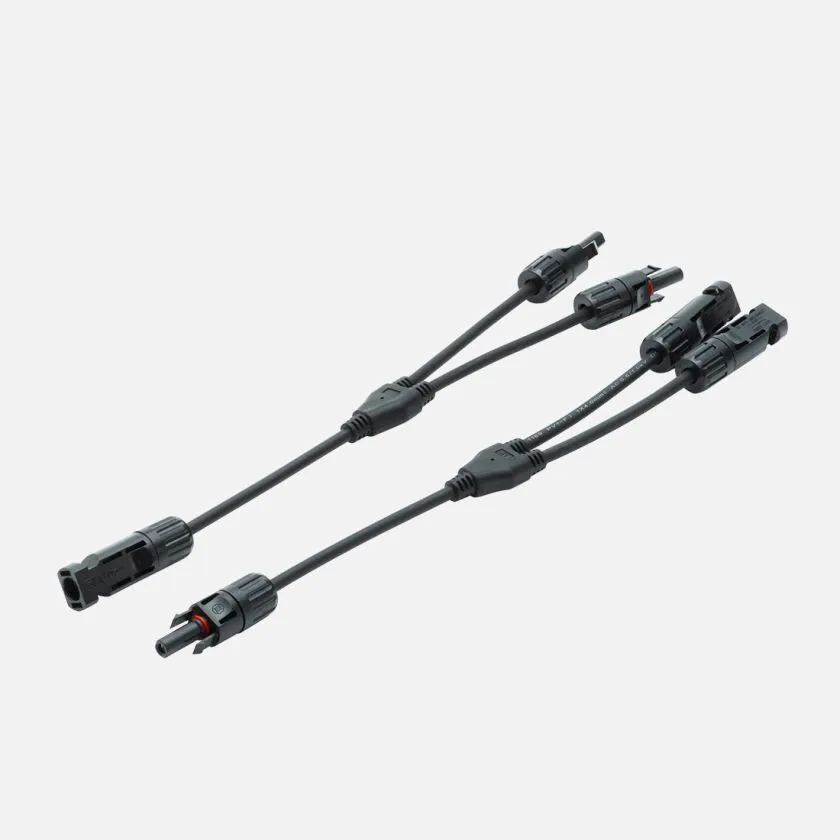

The Solar Connector Kit with MC4 style connection provides all the components needed to make one MC4 connection used in the installation of REDARC Monocrstyalline Solar Panels and Portable Solar Panels.

It connects Positive and Negative cables from two solar panels into two output for parallel connection to a regulator.

Specifications

  • Compatible with MC4 Solar connectors
  • Required for multiple solar panel installations
  • gtin_barcode : 9338628003228
  • brand : REDARC
  • Insulation/ Sheath : UV Stabilised PVC
  • Voltage Rating : 50V DC max
  • Conductor : Tinned Cooper
  • Current Rating : 30A
  • Wire Gauge : AWG 11 (Ø2.3 mm)
  • Cable Length : 300 mm (±30 mm)
  • Warranty : 2 Years
  • Connector Type : MC4-style 'Y' connectors

Compatibility

  • Universal Part

The Solar Connector Kit with MC4 style connection provides all the components needed to make one MC4 connection used in the installation of REDARC Monocrstyalline Solar Panels and Portable Solar Panels.

It connects Positive and Negative cables from two solar panels into two output for parallel connection to a regulator.

  • Compatible with MC4 Solar connectors
  • Required for multiple solar panel installations
  • gtin_barcode : 9338628003228
  • brand : REDARC
  • Insulation/ Sheath : UV Stabilised PVC
  • Voltage Rating : 50V DC max
  • Conductor : Tinned Cooper
  • Current Rating : 30A
  • Wire Gauge : AWG 11 (Ø2.3 mm)
  • Cable Length : 300 mm (±30 mm)
  • Warranty : 2 Years
  • Connector Type : MC4-style 'Y' connectors
  • Universal Part
