Description

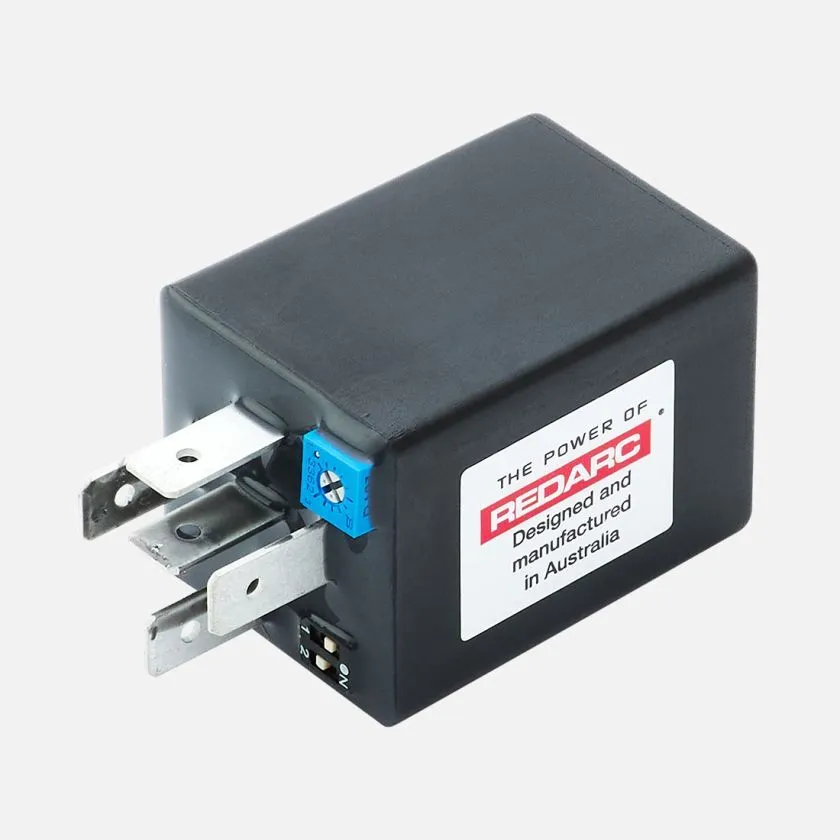

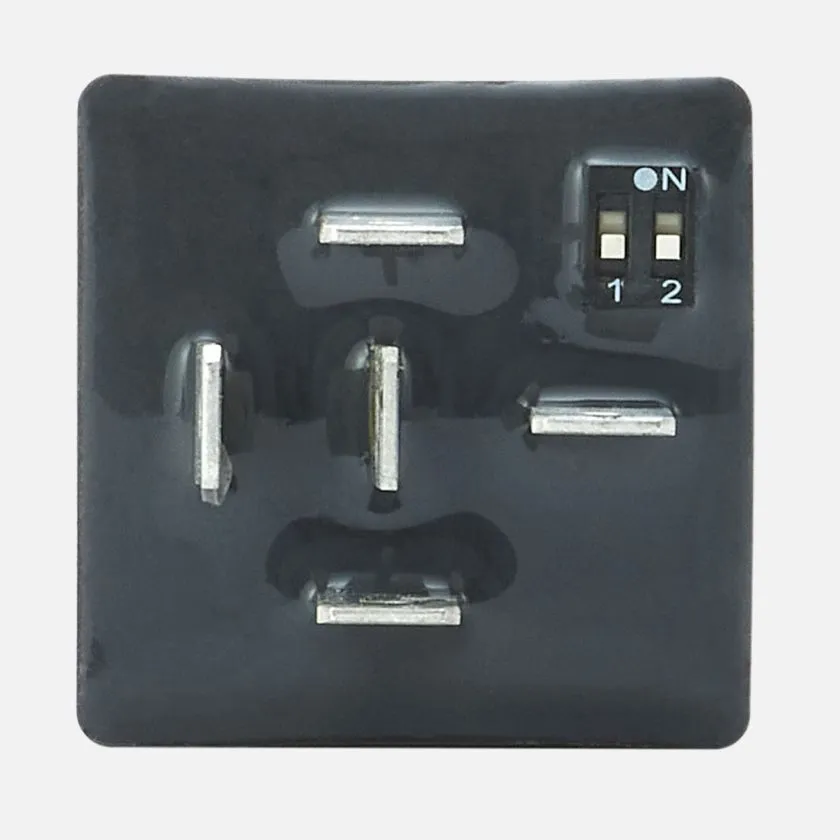

The TIM05 & TIM06 timers can be used in a 12V or 24V negative ground automotive system, are designed to plug into a standard automotive relay base and have the same pin numbers as a standard automotive relays (underside shown on diagram). Contacts operate in a similar way to a changeover relay.

The TIM05 & TIM06 can supply a maximum current of 10 AMPS.

Specifications

  • The timer switches the internal relay to provide output on PIN 87. (Positive output only)
  • The timer is started by switching pin PIN 86 ON or OFF (depending on Switch 1).
  • Use Switch 2 to select time range between SECONDS and MINUTES.
  • Use the potentiometer to adjust time (increasing in clockwise direction).
  • User adjustable 1- 60 seconds/minutes
  • Change over type relay
  • Standard automotive relay base
  • Fully customisable upon request
  • gtin_barcode : 9338628001682
  • brand : REDARC

Compatibility

  • Universal Part

The TIM05 & TIM06 timers can be used in a 12V or 24V negative ground automotive system, are designed to plug into a standard automotive relay base and have the same pin numbers as a standard automotive relays (underside shown on diagram). Contacts operate in a similar way to a changeover relay.

The TIM05 & TIM06 can supply a maximum current of 10 AMPS.

  • The timer switches the internal relay to provide output on PIN 87. (Positive output only)
  • The timer is started by switching pin PIN 86 ON or OFF (depending on Switch 1).
  • Use Switch 2 to select time range between SECONDS and MINUTES.
  • Use the potentiometer to adjust time (increasing in clockwise direction).
  • User adjustable 1- 60 seconds/minutes
  • Change over type relay
  • Standard automotive relay base
  • Fully customisable upon request
  • gtin_barcode : 9338628001682
  • brand : REDARC
  • Universal Part
