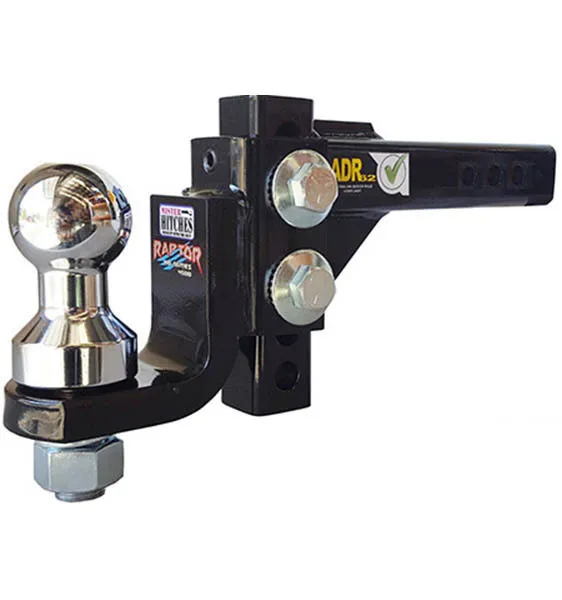

Description

  • 4500 kg Max Tow Capacity - 450kg Max T.W.
  • Tested and Compliant with ADR62/02
  • Tested up to 6750kg (Longitudinal Tension)
  • Solid Steel shank with dual gussets for superior strength
  • Suits 50mm or 70mm Tow Balls (sold separatly)
  • Reversible Shank & Ball Platform give greater drop or rise height
  • 16 Stage adjustments - Max Rise 188mm, Max Drop 210mm (32mm Increments)
  • Optional Shanks can give a drop of 370mm and rise up to 350mm
  • Multi-Pin holes give 3 length adjustments - 315-340-365mm
  • H.T. 3/4" bolts, Nyloc locking nuts and toothed conical washers give superior strength
  • Powder Coated Enamel Finish gives greater protection from the elements
  • Manufactured to Mister Hitches strict quality and specificaitons.



***NOTE***: This product only fit a 70mm receiver

Specifications

Compatibility

Suits 70mm Hitch Receivers ONLY

  • Compatible with Hitchmaster D035 & D045, Treg, McHitch, Hitch-Ezy, Alko, Oz Hitch 4.5T & Ark Couplings.
  • Also Suitable for the Ford Ranger Short Shank Tow Bar.
  • 4500 kg Max Tow Capacity - 450kg Max T.W.
  • Tested and Compliant with ADR62/02
  • Tested up to 6750kg (Longitudinal Tension)
  • Solid Steel shank with dual gussets for superior strength
  • Suits 50mm or 70mm Tow Balls (sold separatly)
  • Reversible Shank & Ball Platform give greater drop or rise height
  • 16 Stage adjustments - Max Rise 188mm, Max Drop 210mm (32mm Increments)
  • Optional Shanks can give a drop of 370mm and rise up to 350mm
  • Multi-Pin holes give 3 length adjustments - 315-340-365mm
  • H.T. 3/4" bolts, Nyloc locking nuts and toothed conical washers give superior strength
  • Powder Coated Enamel Finish gives greater protection from the elements
  • Manufactured to Mister Hitches strict quality and specificaitons.



***NOTE***: This product only fit a 70mm receiver

Suits 70mm Hitch Receivers ONLY

  • Compatible with Hitchmaster D035 & D045, Treg, McHitch, Hitch-Ezy, Alko, Oz Hitch 4.5T & Ark Couplings.
  • Also Suitable for the Ford Ranger Short Shank Tow Bar.
