Description

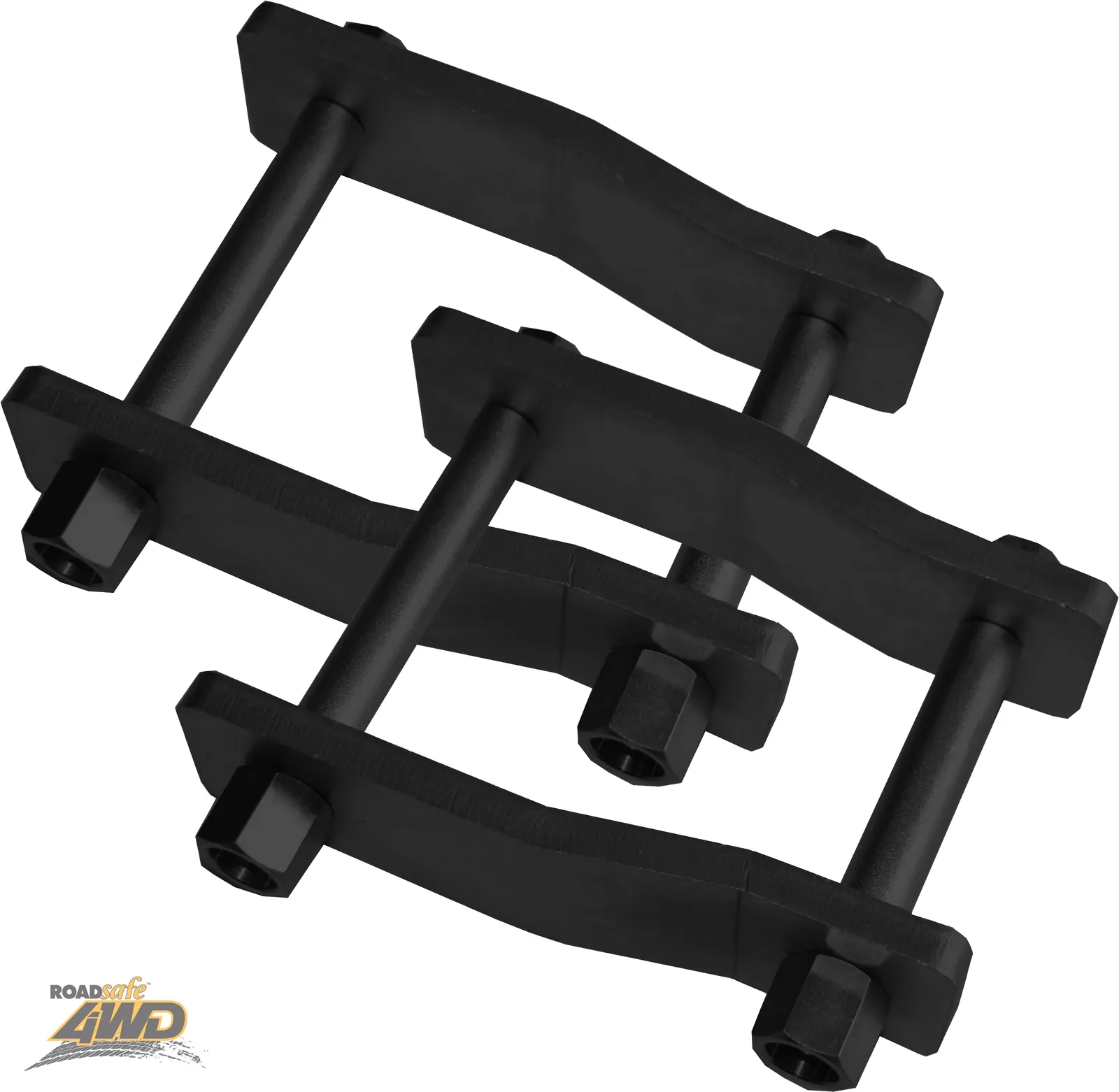

If you are after more flex in your vehicles rear end, then Extended Shackles are an easy way to achieve it. Basically the extended shackle creates a greater sweeping arc of the shackle which in turn provides for more wheel travel and a nicer ride. Roadsafe Extended Shackles are engineered to the highest standard, with factory size Greasable Pins (to allow installation of factory bushings) and 50mm extended plates. All Roadsafe extended shackles incorporate a stepped bolt design, ensuring that the shackles cannot be overtightened, to aid in bushing longevity.

Roadsafe extended shackles incorporate some great design features. Grease nipple protection is built in, to aid in avoiding grease nipple damage from rocks and debris that could be encountered in the installed position, in addition to offset grease holes for maximum grease dispersion, and improved bushing longevity. Giving 50mm more length than the factory shackle you will also see a lift of between approx. 25-30mm (Depending upon application). Sold in Pairs.

It is recommended to fit a 3degree wedge to the front when using Extended Shackles.

VSB14 states that Extended or adjustable shackle plates must not be used to raise vehicles on leaf spring suspensions.

Give your vehicle an easylift & fix that "nose dive" appearance by matching a pair of front coil strut spacers with rear extended shackles. the 25mm front coil spacers will give you approx 37mm of lift and the 50mm rear extended shackles will give approx 25-30mm, so you can slightly raise the vehicle, increase rear articulation and decrease the nose dive appearance.

Specifications

Compatibility

  • Mitsubishi Triton ML - MN - Rear Only
  • If you are after more flex in your vehicles rear end, then Extended Shackles are an easy way to achieve it. Basically the extended shackle creates a greater sweeping arc of the shackle which in turn provides for more wheel travel and a nicer ride. Roadsafe Extended Shackles are engineered to the highest standard, with factory size Greasable Pins (to allow installation of factory bushings) and 50mm extended plates. All Roadsafe extended shackles incorporate a stepped bolt design, ensuring that the shackles cannot be overtightened, to aid in bushing longevity.

    Roadsafe extended shackles incorporate some great design features. Grease nipple protection is built in, to aid in avoiding grease nipple damage from rocks and debris that could be encountered in the installed position, in addition to offset grease holes for maximum grease dispersion, and improved bushing longevity. Giving 50mm more length than the factory shackle you will also see a lift of between approx. 25-30mm (Depending upon application). Sold in Pairs.

    It is recommended to fit a 3degree wedge to the front when using Extended Shackles.

    VSB14 states that Extended or adjustable shackle plates must not be used to raise vehicles on leaf spring suspensions.

    Give your vehicle an easylift & fix that "nose dive" appearance by matching a pair of front coil strut spacers with rear extended shackles. the 25mm front coil spacers will give you approx 37mm of lift and the 50mm rear extended shackles will give approx 25-30mm, so you can slightly raise the vehicle, increase rear articulation and decrease the nose dive appearance.
  • Mitsubishi Triton ML - MN - Rear Only
