Description

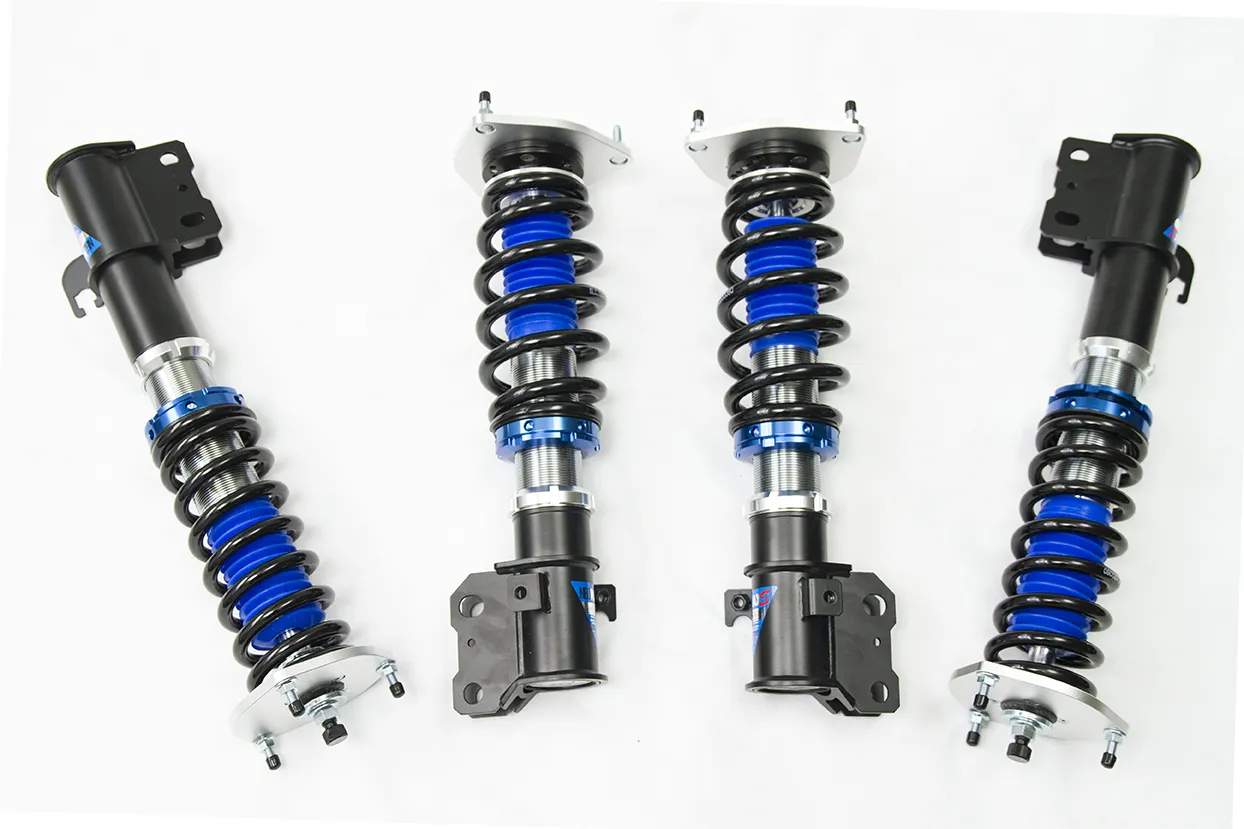

Silver's NEOMAX S Coilovers are perfect for street driving and still outperform most on the track. The Silver's NEOMAX Neomax S coilovers are a monotube shock, independently height adjustable, with 40 levels of dampening adjustment, and come with an 15-month warranty. The NEOMAX S are assembled with pre-selected springs and valve settings to suit a range of driving situations with a comfortable ride. For a more performance or track oriented ride, please look at the Neomax Black Edition. For custom spring rates and valving, please look at the NEOMAX R or NEOMAX 2-Way coilover options.

Neomax S Coilover Specific Features:

  • Front Camber Plates (If Applicable): Yes
  • Rear Camber Plates (If Applicable): No, Neomax Black/Neomax R/Neomax 2-Way Only
  • Custom Spring Option: No, Neomax R/Neomax 2-Way Only
  • Custom Setup: No, Neomax R/Neomax 2-Way Only
  • 2-Way Adjustment: No, Neomax 2-Way Only
  • External Reservoir: No, Neomax 2-Way Only

Silvers Coilover Features:

Adjustable Camber Plates (Where Applicable)

Our camber plates are made from T6 6061 Aluminum and are protected by an anodized finish. For NEOMAX S-Series they come standard on the front only of any McPherson style strut application and are designed to offer up to 3 degree's of camber adjustment at any ride height to dial in your aligment. If rear camber plates are required please look at the NEOMAX R-Series and NEOMAX 2-WAY coilover options.

Front Pillowball Top Mounts (Where Applicable)

Our pillowball mounts are comprised of two main parts: A SUJ2 Steel bearing, and a Chromoly Steel 2 piece case. Pillowball mounts provide bind free operation and precise feedback to the driver.

Fully Height Adjustable

Our coilovers are fully height adjustable via the lower mount with no need to change preload and sacrifice shock stroke. Simply loosening the lower locking ring and rotating the entire coilover you will be able to easily fine tune your ride height or weight distibution for corner balancing on track applications.
oem fit steel lower mounts

Our steel lower mounts are engineered extensively for strength with key area's reinforced. They are designed with all of the features of the OEM system to be sure every brake line and ABS sensor harness is securely mounted. This keeps installation simple and straight forward.

Aluminum Lower Brackets

T6 6061 Aluminum lower mounts are used on multilink suspension setups. These are CAD Designed to ensure oem fitment and are lighter than steel components which also help reduce unsprung weight.

Carbon Steel Shock Body

Our shock bodies are made from ultra high strength JIS G3445-STKM13C (DIN2393-ST44-2) carbon steel and are electroless nickel plated for resistence to corrosion and fatigue in harsh climates.

Linear Piston Design

We use a 44mm Linear type piston in our shocks. This style piston gives both excellent track benefits as well as maintains ride quality. Every single shock is hand assembled, and dyno tested to insure dampening and compression valving is within 5% variation from side to side. There is no random inspection or tests, every single shock is dyno tested. In the event the shock fails, the internals are discarded and it goes back to the assembly room.

Large Hardened Steel Shafts

We use the largest diameter necessary hardened steel with chrome plating for our piston shafts. With extensive research and development we have the perfect material and diameter needed to have the proper strength necessary to retain lateral rigidity and not bend or bind under heavy loads, which leads to pre-mature wear and lowering piston travel. Making it the perfect combination of strength and weight savings.

Unique Locking Collars

Our locking collars have a specific unique design compared to the other brands on the market. They perform the same as any other locking collar, though with the lower spring perch having dimples instead of slots you do not have to worry about the top spanner wrench slipping and sliding up or down the perch when making necessary adjustments. This makes adjusting the preload much less of a balancing act, leading to quicker and easier installation.

Radial Bearings

Made from T6 6061 Aluminum using the best Koyo Japan bearings our Radial Bearing upper perch (McPherson applications only) allows the springs to twist freely as they are compressed. As a spring compresses it may twist slightly which can produce a small noise as if the springs are binding. The same noise also occurs on mcpherson applications when the wheel is turned and the spring binds. Radial bearing upper perches will allow the piston shaft and tophat to rotate seperately from the spring and shock body allowing for a smotther and quieter rotation.

Specifications

  • Front Spring Rate: 9K
  • Rear Spring Rate: 5K-S

-S = Separated shock & spring assembly

  • 40 levels of dampening adjustability.
  • IP F.A. 20W damper oil.
  • Mono-tube shock design
  • JIS G3445-STKM13C(DIN2393-ST44-2) carbon steel 52mm diaseamless tube
  • 44mm linear characteristic internal piston
  • Cold-bent springs made from high strength SAE9252 steel.
  • Lower bracket height adjustability prevent the need to adjust the spring perch, offering the maximum shock-absorbing travel.
  • Powder painted steel lower bracket can match all design of brake line and ABS line holder, easy for intalling.

Compatibility

  • 2013 Audi S3 8V
  • 2014 Audi S3 8V
  • 2015 Audi S3 8V
  • 2016 Audi S3 8V
  • 2017 Audi S3 8V
  • 2018 Audi S3 8V
  • 2019 Audi S3 8V
  • 2020 Audi S3 8V
