Description

For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance.  The ST3303-PRO is an aggregation of all things that have made us the globally distributed, coveted brand born right here in Australia.


Unquestionably, ST3303 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakably STEDI.

Specifications

  • CREE XLamp XP-L HI undomed LEDs using CREE’s breakthrough SC5 Technology
  • RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
  • IP68 - Submersible to 3m
  • High Current Deutsch DTP-2 25A connectors
  • 32mm diameter parabolic reflectors
  • Spread and Spot beam pattern
  • 4mm thick 304 stainless steel side brackets included.
  • Cast Alloy adjustable sliding bracket included.

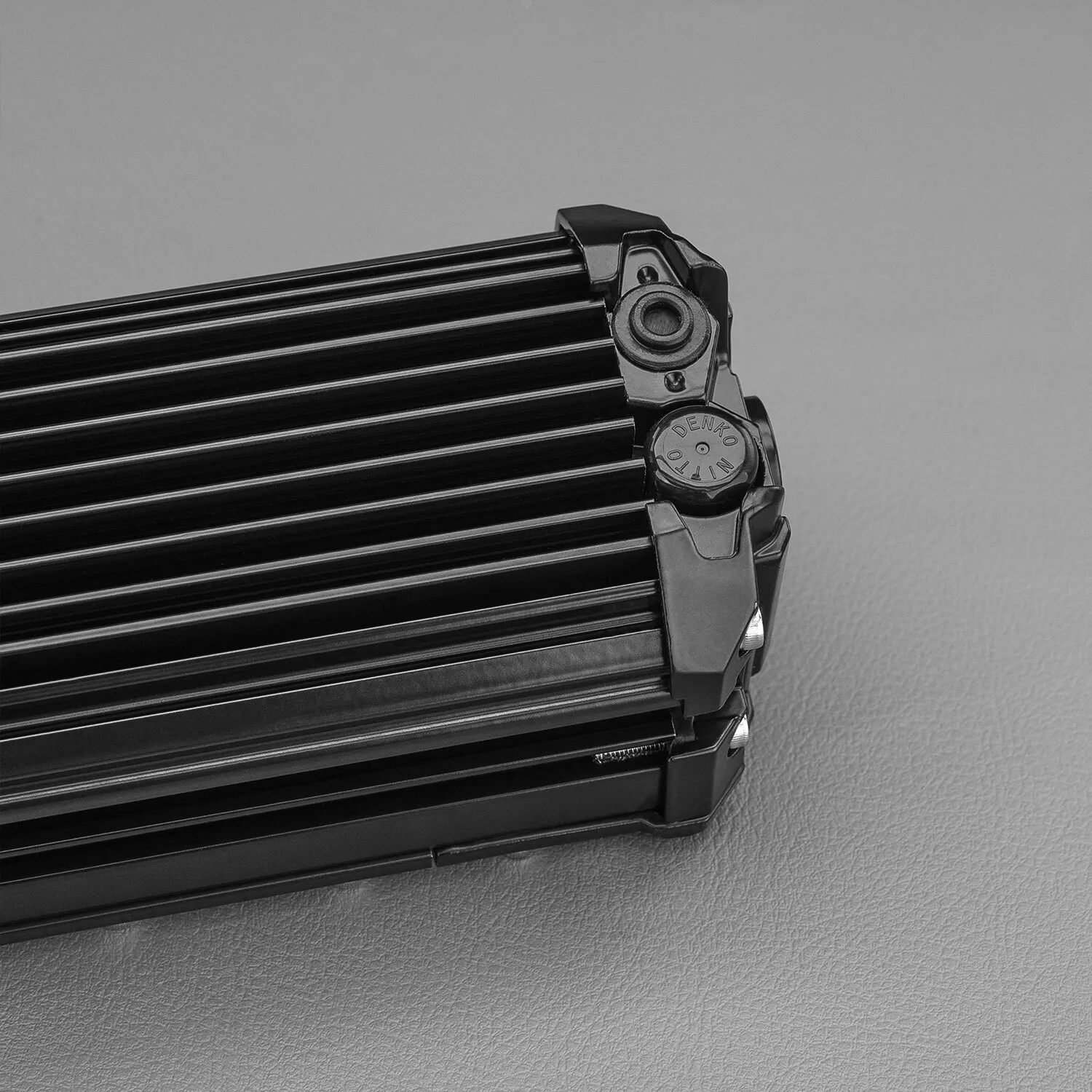

  • Nitto Denko Breather with PTFE microporous membrane

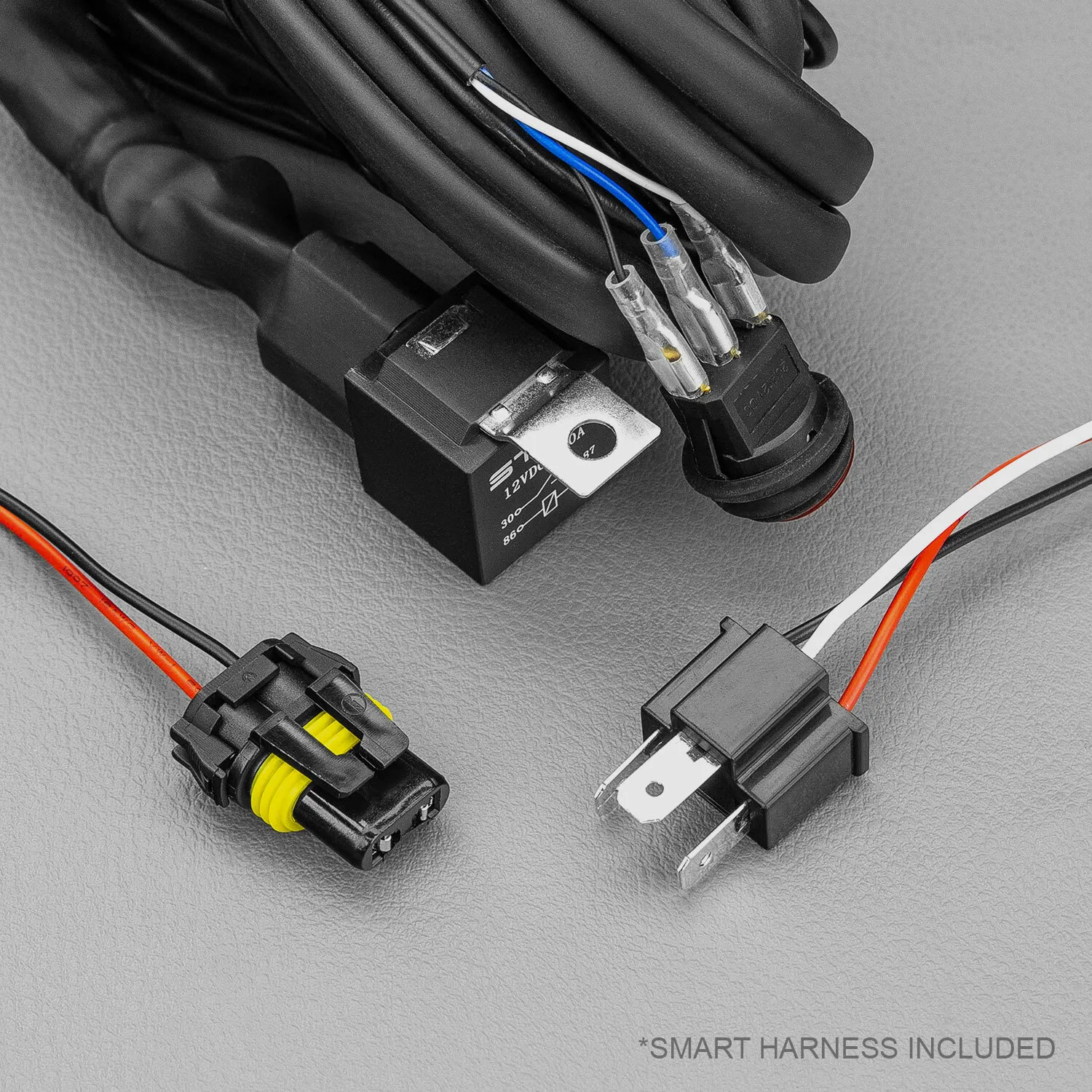

  • Very heavy-duty Smart Plug & Play ADR compliant Wiring Harness. (Switch, Fuse, Relay and HB3 and H4 Piggyback Adaptors) included
  • LED MANUFACTURER- CREE XPL Hi
  • LED COUNT - 32
  • VOLTAGE - 9V - 32V
  • CURRENT DRAW (AMPERES) - 16.4a @13.6v
  • LENS MATERIAL - OPTICAL GRADE, HARD COATED LEXAN
  • RAW LUMENS - 31,040Lm
  • EFFECTIVE LUMENS - 17,920Lm
  • PEAK INTENSITY (CANDELA) - 474,721cd
  • HOUSING MATERIAL - A360.0 Cast face plate, extruded Aluminum heat sink
  • LIFESPAN - 50,000
  • FLOOD BEAM - 50°
  • SPOT BEAM - 9°
  • INGRESS PROTECTION - IP68
  • OPERATING TEMP -40?C ~ +150?C
  • WEIGHT - 2.850kg

What's Included

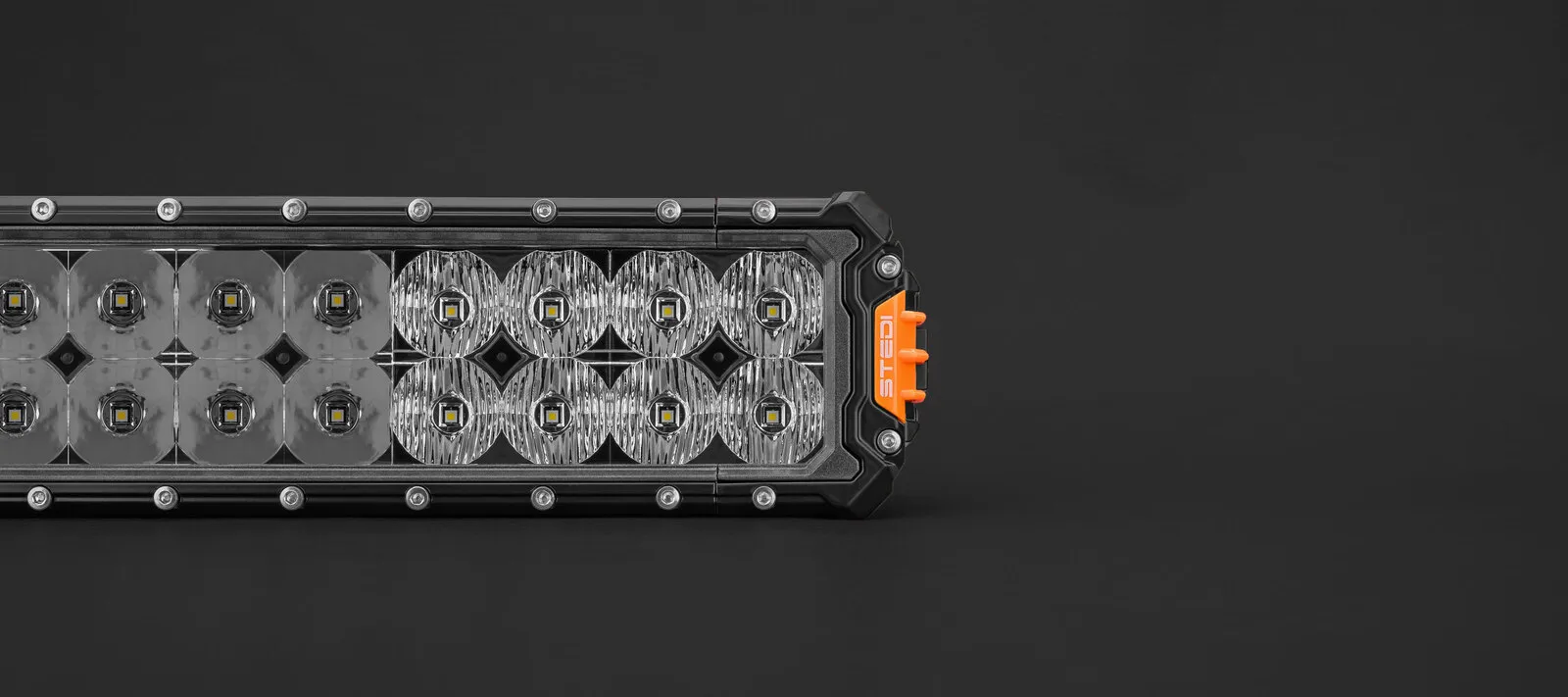

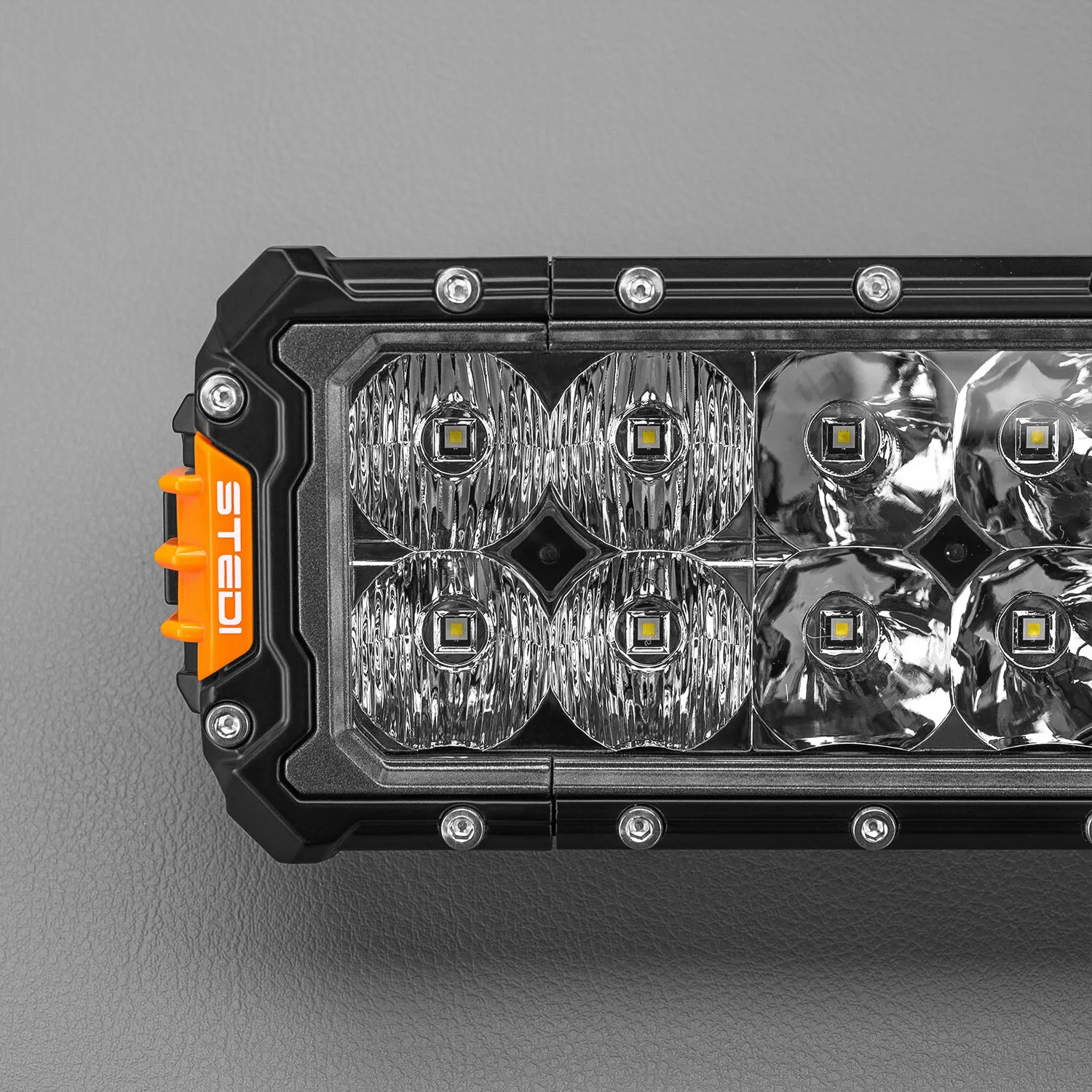

  • ST3303 PRO 32 LED Light Bar
  • Easy Fit High Beam Wiring Harness with H4 & HB3 adapters to High Beam
  • 2 x Lower Mountings Brackets with Stainless Steel Fasteners
  • 2 x 4mm thick Stainless Steel Brackets
  • 2 x Orange End Caps
  • 2 x Grey End Caps

Compatibility

  • Universal Part
