Description

Waterproof connectors

Specifications

  • Led - High Beam: 2X 10W Xml-2 , Ledlow Beam: 2X 15W, Led Drl: 30X 1.5W Osram
  • Raw Lumens - High Beam: 2000Lm, Low Beam: 1400Lm, Drl: 150Lm
  • Amp Draw - High Beam: 2.4A @ 13.6V, Low Beam: 1.6A @ 13.6V, Drl: 0.2A @ 13.6V
  • Lifespan - 50,000 Hours
  • Ingress Protection - Ip67
  • Operating Temperature - -30°C~+60°C
  • Lens Material - Lexan Polycarbonate
  • Colour Temp - 5700K
  • Voltage Compatibility - 12V & 24V
  • Peak Beam Distance @ 1 Lux - High Beam: 235M, Low Beam: 141M, Drl: 8M
  • Weight (Each) - 1.140Kg Each
  • Drop In Replacement For - #6014, 6015, 6016, H6024 And Par 56 Headlamp Designs

What's Included

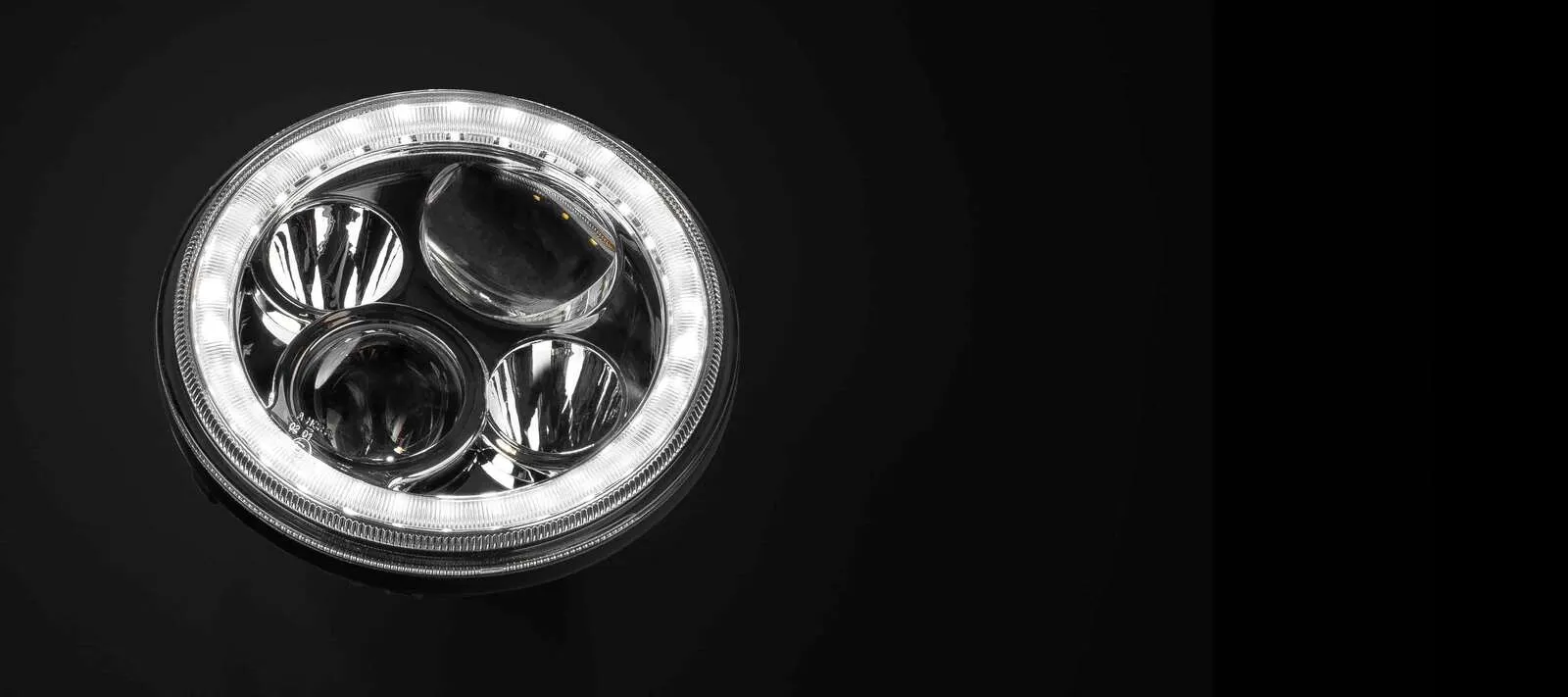

  • 1 x 7 inch STEDI IRIS LED Headlight

Compatibility

  • Universal Part

Waterproof connectors

  • Led - High Beam: 2X 10W Xml-2 , Ledlow Beam: 2X 15W, Led Drl: 30X 1.5W Osram
  • Raw Lumens - High Beam: 2000Lm, Low Beam: 1400Lm, Drl: 150Lm
  • Amp Draw - High Beam: 2.4A @ 13.6V, Low Beam: 1.6A @ 13.6V, Drl: 0.2A @ 13.6V
  • Lifespan - 50,000 Hours
  • Ingress Protection - Ip67
  • Operating Temperature - -30°C~+60°C
  • Lens Material - Lexan Polycarbonate
  • Colour Temp - 5700K
  • Voltage Compatibility - 12V & 24V
  • Peak Beam Distance @ 1 Lux - High Beam: 235M, Low Beam: 141M, Drl: 8M
  • Weight (Each) - 1.140Kg Each
  • Drop In Replacement For - #6014, 6015, 6016, H6024 And Par 56 Headlamp Designs
  • 1 x 7 inch STEDI IRIS LED Headlight
  • Universal Part
