Description

CERTIFIED E-MARK COMPLIANT.

Our new ST1K series is ECE approved, making it road-legal in Europe and New Zealand. Featuring our innovative hooded reflector design with rear-facing LEDs enables unprecedented beam control - not possible with more conventional optics. The 20 LED is ideal for stealth installations – think lower grill, behind the upper grille, or the STEDI number plate light mounting bracket.

HIGH-END DESIGN MEETS HIGH PERFORMANCE

The multi-faceted hooded reflectors distribute a wide beam in the mid-field, with no wasted light on treetops. The wide-horizontal beam patterns significantly reduce glare caused by road signs.  The beam pattern makes it an ideal companion to the vehicle's main beam, filling in the road shoulders and adding beam distance over and above your car's main-beam, ensuring you arrive at your destination in total comfort.

DISCOVER NEW HORIZONS.

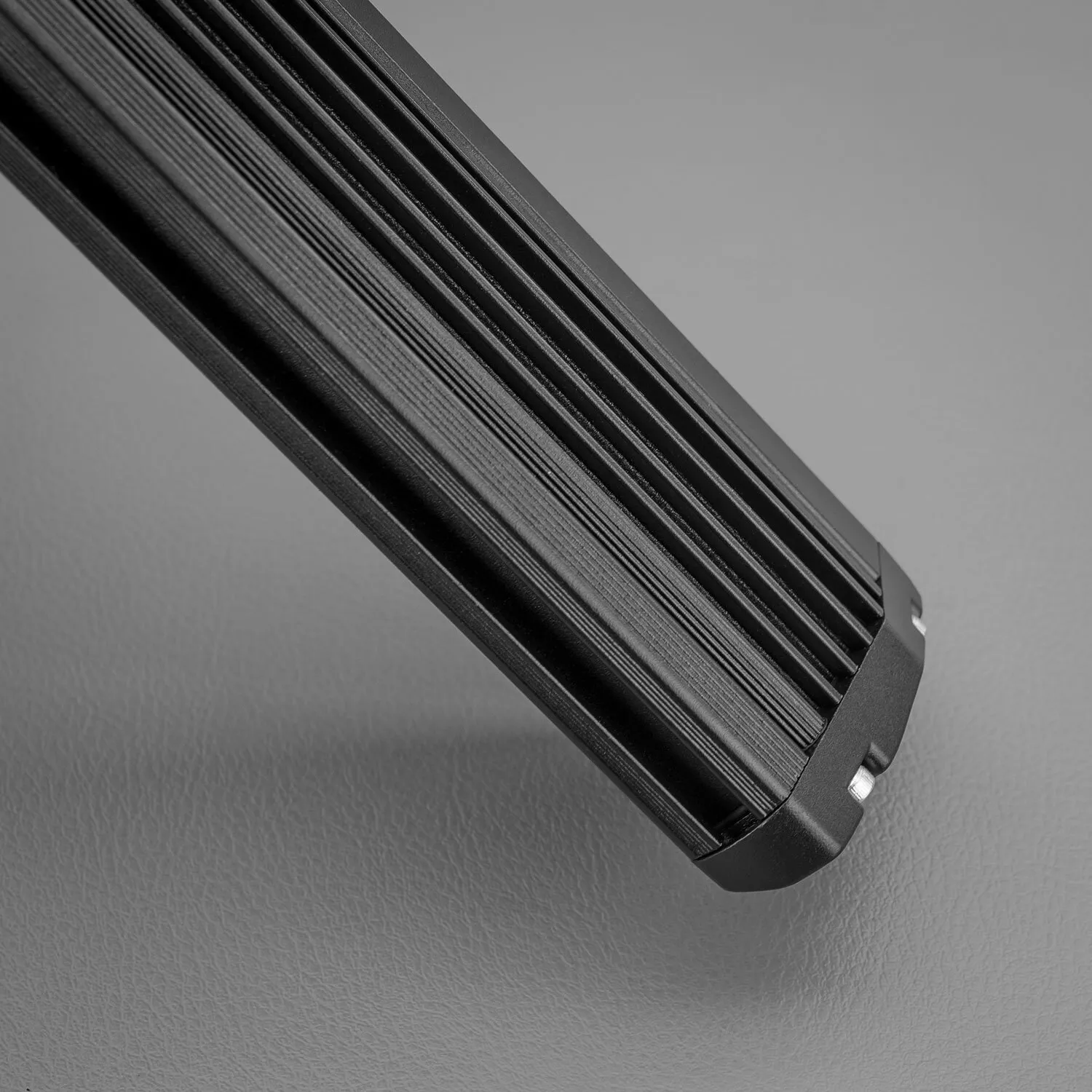

Urban adventure or journey into the wilderness – The ST1K will get you there. The unique geometry of the 6063 aluminium extrusion body measures at only 38mm in height. The ST1K is the first-ever light bar to feature or innovative edge-to-edge bonded lens, adding a new dimension in design. The design adds subtle yet high-end styling to any class of vehicle that needs a high performing stealth driving light.



Specifications

TECH SPECS

LED MANUFACTURER OSRAM
LED COUNT 12
VOLTAGE 9V - 32V
CURRENT DRAW (AMPERES) 4.0a @13.6v
LENS MATERIAL OPTICAL GRADE, HARD COATED LEXAN
RAW LUMENS 3,552Lm
PEAK INTENSITY (CANDELA) 134,435cd
HOUSING MATERIAL A360.0 Cast face plate, extruded Aluminum heat sink
LIFESPAN 50,000hrs
FLOOD BEAM 50°
SPOT BEAM 9°
INGRESS PROTECTION IP68
OPERATING TEMP -40°C ~ +150°C
WEIGHT 0.845kg













LUX GRAPH

DIMENSIONS

What's Included

THE NERDY STUFF

  • 20 x 5W OSRAM LEDs
  • RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
  • IP68 - Submersible to 3m

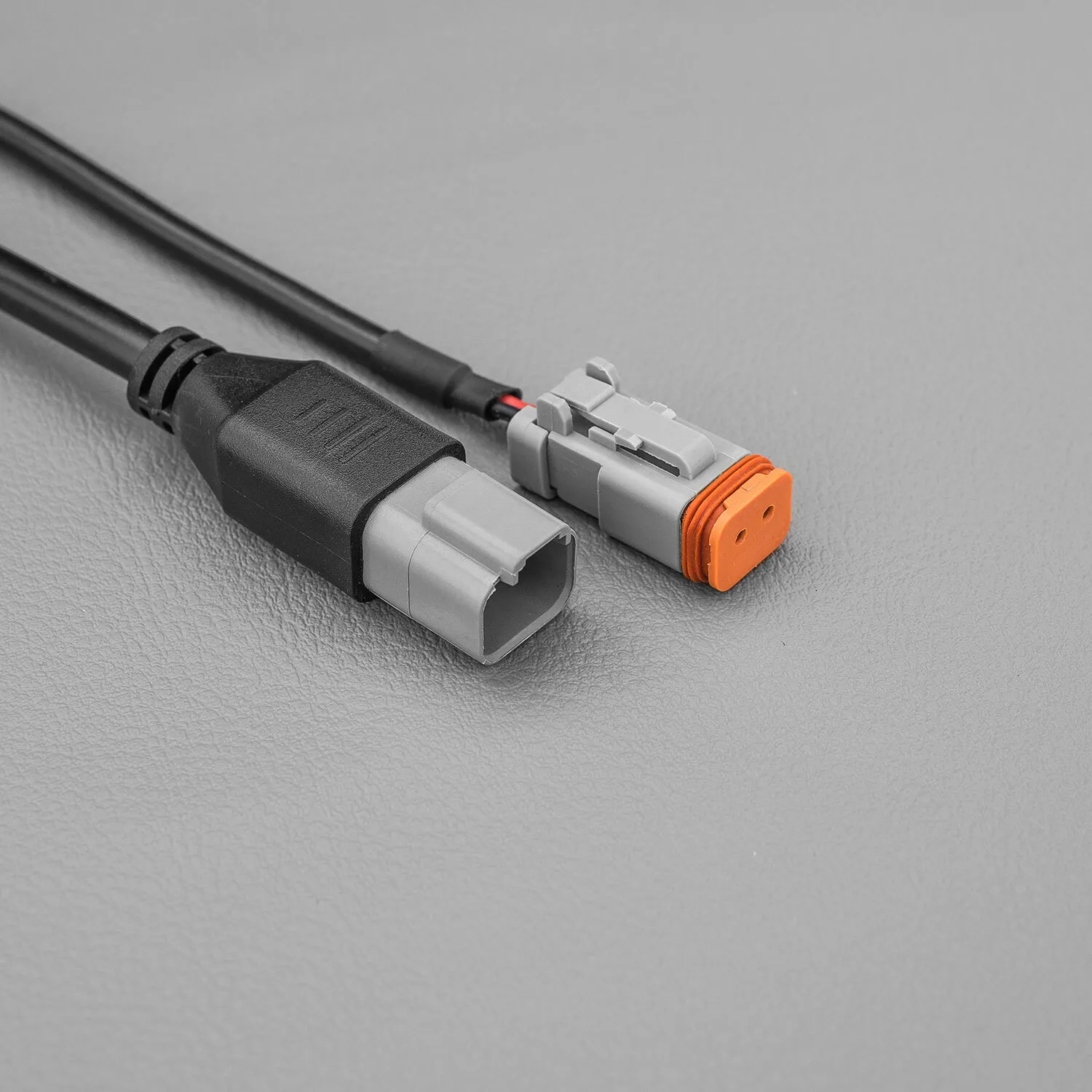

  • Environmentally sealed Deutsch DT-2 connectors

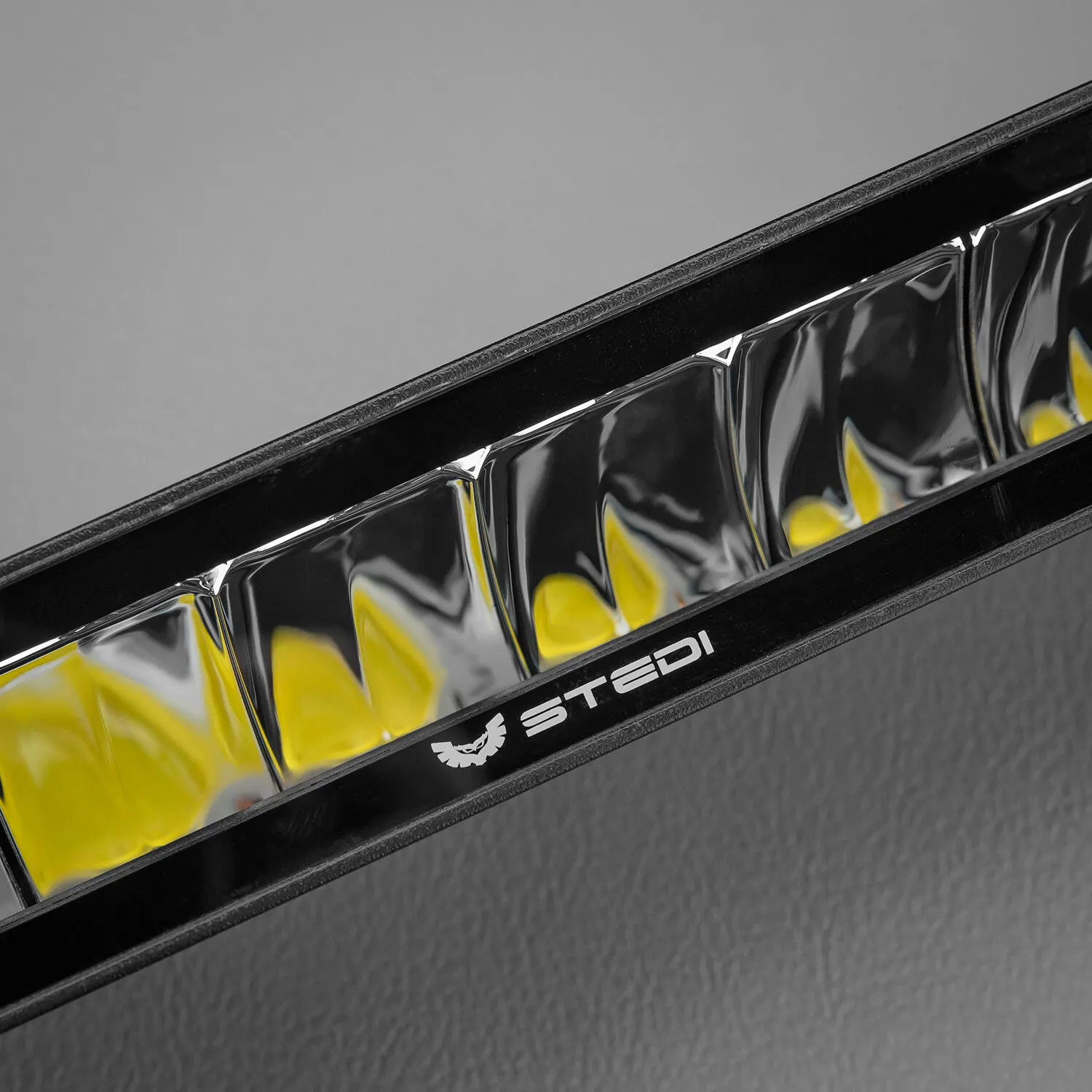

  • Innovative hooded optics
  • Driving Beam E mark compliant beam.
  • Heavy Duty Adjustable Bottom Mounts & Side bracket included.
  • Reverse Polarity Protected Circuit (RPPC)
  • Electronic Thermal Management
  • Built-in Voltage Surge Protection

Compatibility

  • Universal

CERTIFIED E-MARK COMPLIANT.

Our new ST1K series is ECE approved, making it road-legal in Europe and New Zealand. Featuring our innovative hooded reflector design with rear-facing LEDs enables unprecedented beam control - not possible with more conventional optics. The 20 LED is ideal for stealth installations – think lower grill, behind the upper grille, or the STEDI number plate light mounting bracket.

HIGH-END DESIGN MEETS HIGH PERFORMANCE

The multi-faceted hooded reflectors distribute a wide beam in the mid-field, with no wasted light on treetops. The wide-horizontal beam patterns significantly reduce glare caused by road signs.  The beam pattern makes it an ideal companion to the vehicle's main beam, filling in the road shoulders and adding beam distance over and above your car's main-beam, ensuring you arrive at your destination in total comfort.

DISCOVER NEW HORIZONS.

Urban adventure or journey into the wilderness – The ST1K will get you there. The unique geometry of the 6063 aluminium extrusion body measures at only 38mm in height. The ST1K is the first-ever light bar to feature or innovative edge-to-edge bonded lens, adding a new dimension in design. The design adds subtle yet high-end styling to any class of vehicle that needs a high performing stealth driving light.



TECH SPECS

LED MANUFACTURER OSRAM
LED COUNT 12
VOLTAGE 9V - 32V
CURRENT DRAW (AMPERES) 4.0a @13.6v
LENS MATERIAL OPTICAL GRADE, HARD COATED LEXAN
RAW LUMENS 3,552Lm
PEAK INTENSITY (CANDELA) 134,435cd
HOUSING MATERIAL A360.0 Cast face plate, extruded Aluminum heat sink
LIFESPAN 50,000hrs
FLOOD BEAM 50°
SPOT BEAM 9°
INGRESS PROTECTION IP68
OPERATING TEMP -40°C ~ +150°C
WEIGHT 0.845kg













LUX GRAPH

DIMENSIONS

THE NERDY STUFF

  • 20 x 5W OSRAM LEDs
  • RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
  • IP68 - Submersible to 3m
  • Environmentally sealed Deutsch DT-2 connectors
  • Innovative hooded optics
  • Driving Beam E mark compliant beam.
  • Heavy Duty Adjustable Bottom Mounts & Side bracket included.
  • Reverse Polarity Protected Circuit (RPPC)
  • Electronic Thermal Management
  • Built-in Voltage Surge Protection
  • Universal
