Description

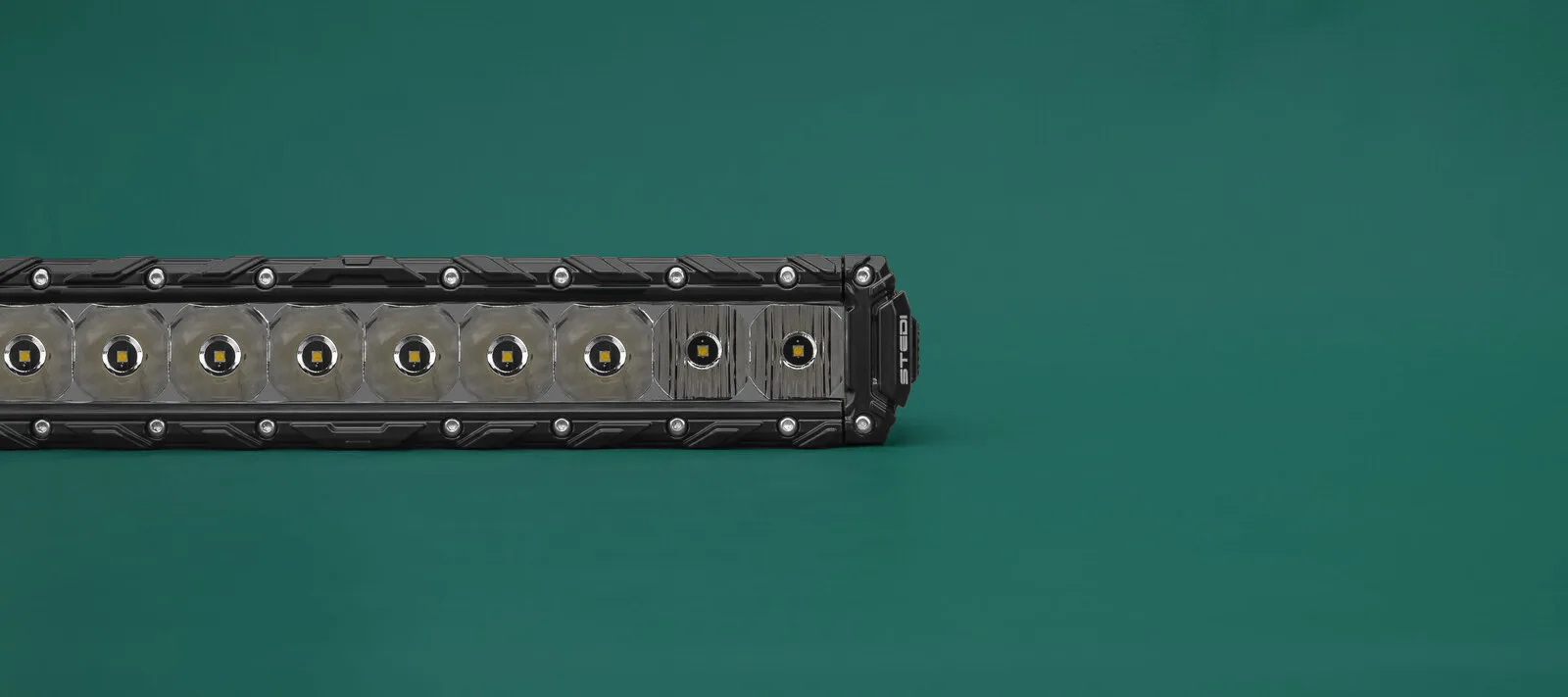

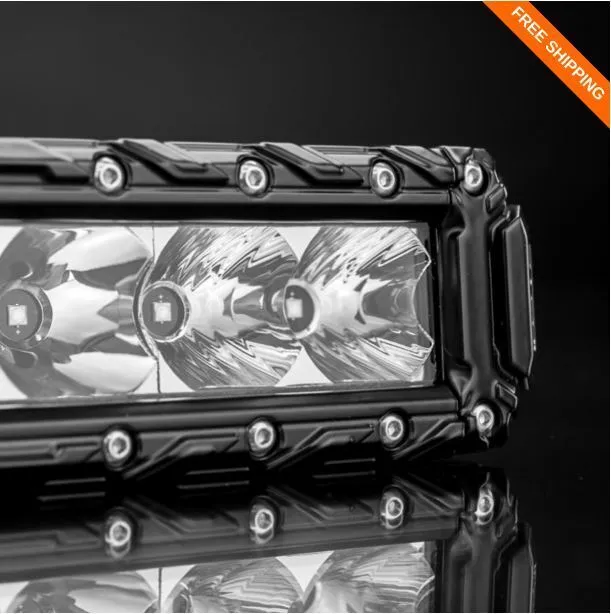

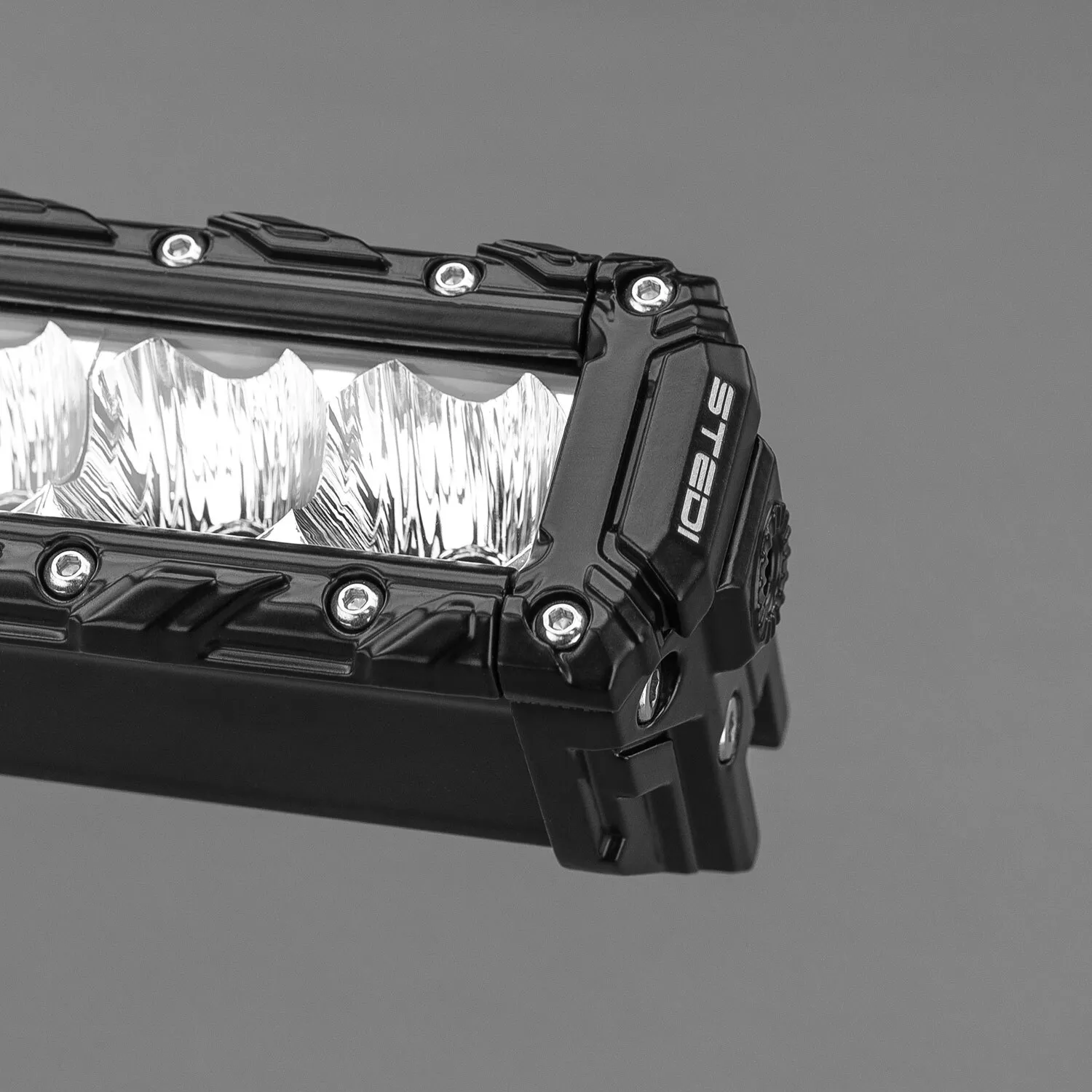

Introducing our ST3K Series 11.5 Inch LED Light Bar. Running 10 of OSRAM’s® finest OSLON® LEDs with a combination of 2 Flood + 6 Spot + 2 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 348m.

Built on our hugely successful ST(X)K LED & reflector platform but with a low profile design. Our ST3K range is designed specifically for application that are tight on clearance but still command maximum performance.

Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch ® DT-2 connector.

Protected against EMC and RFI.

Specifications

  • Led - 10 X Osram Oslon White
  • Effective Lumen - 2,050Lm
  • Peak Intensity (Candela) - 121,600Cd
  • Operating Voltage - 10-30V
  • Dcip Rating - Ip68
  • Current Draw - 2.1A @ 13.6V
  • Colour Temperature (Cct) - 5700 Kelvin
  • Housing Material - Aluminium Extrusion & Castlensgeâ„¢ Lexan
  • Mounting Bracket - Powder Coated 3Mm Stainess Steel
  • Bolts And Fittings - 3 Series Stainless Steel
  • Beam Type - Flood Spot Combo
  • Life Span - 50,000 Hours
  • Weight - 1.650
  • Operating Environment - -40 - +50° Celsius

What's Included

  • ST3K 11.5 inch LED LIGHT BAR

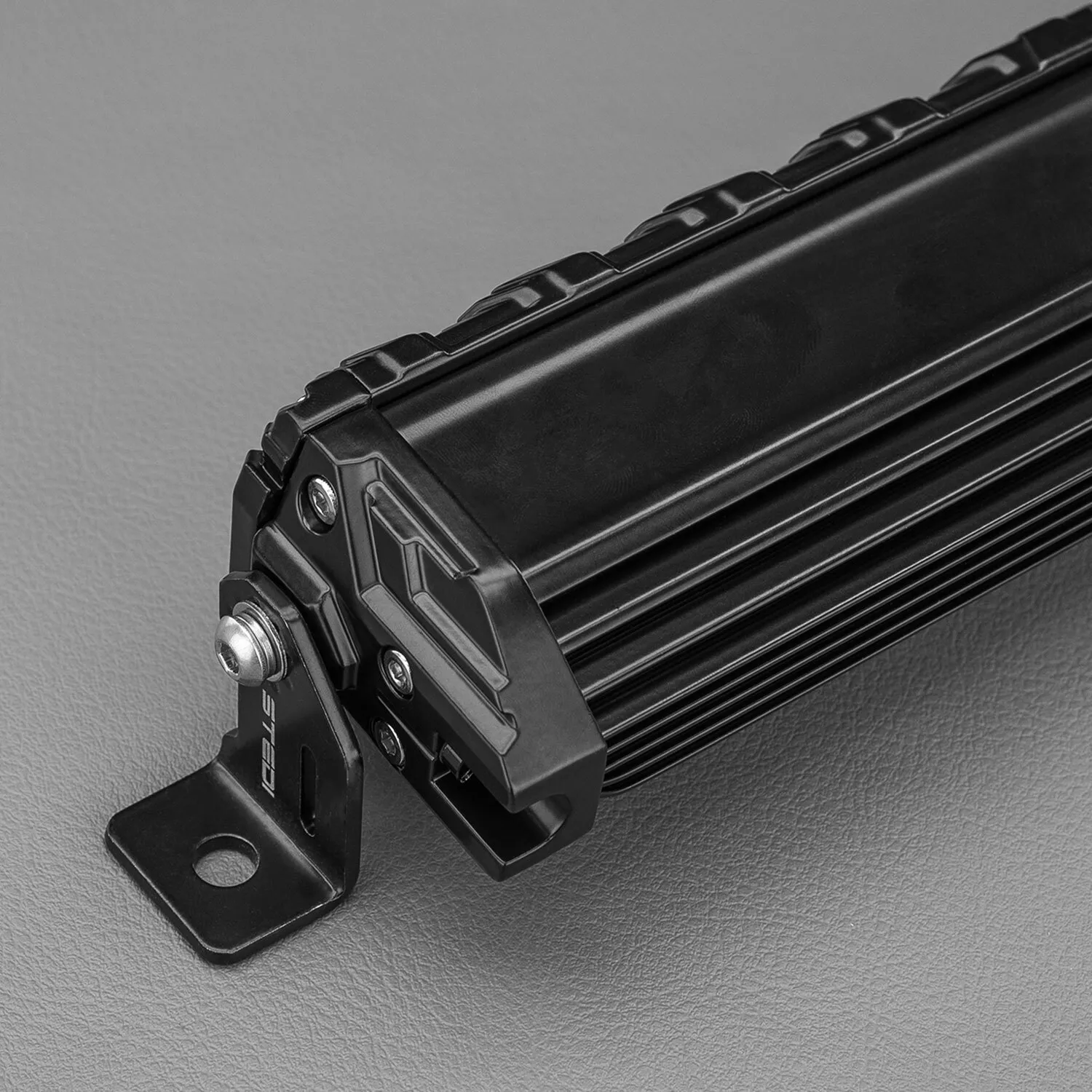

  • Low Profile Stainless Side Brackets
  • Stainless Fasteners

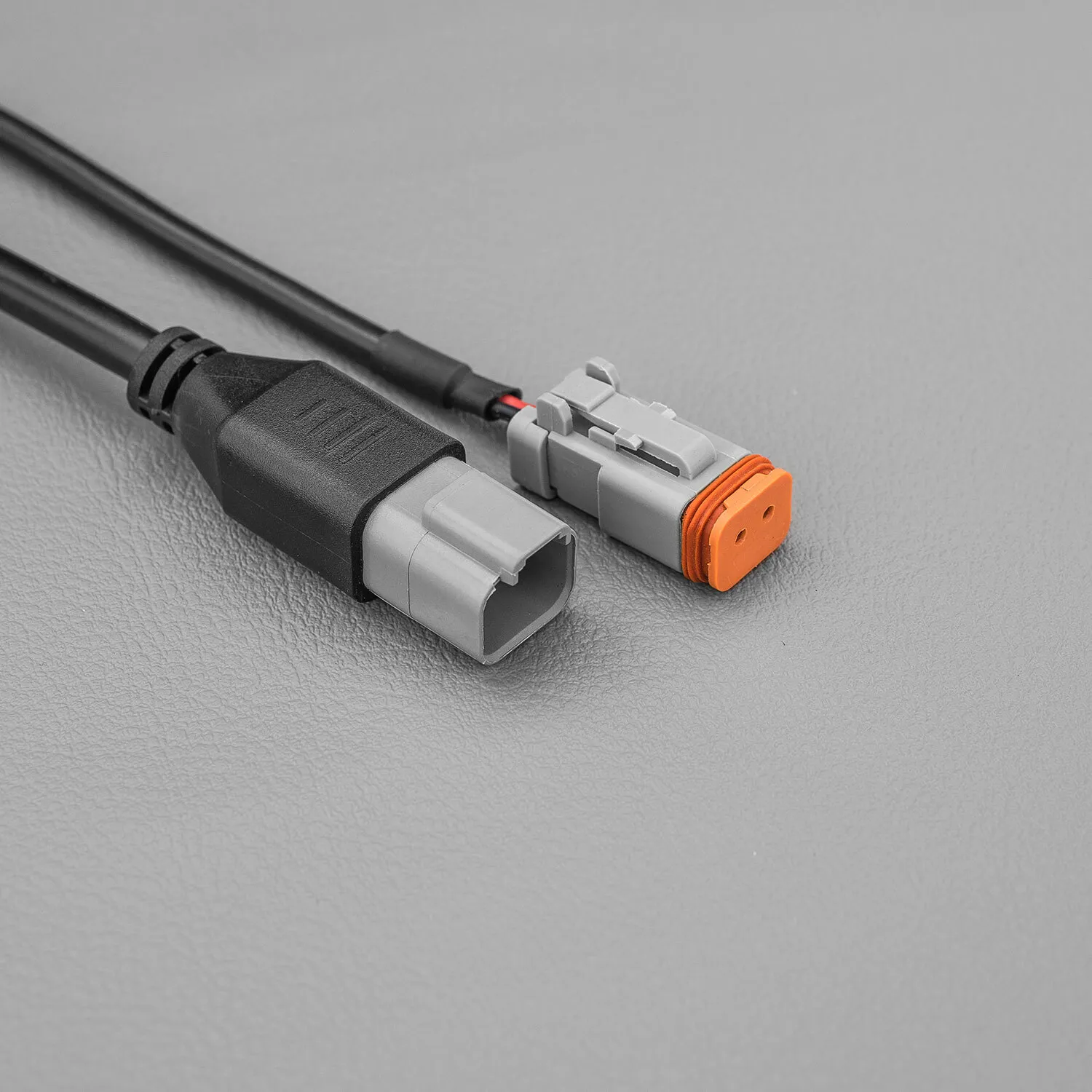

  • DT Wire Tail

Compatibility

  • Universal Part

Introducing our ST3K Series 11.5 Inch LED Light Bar. Running 10 of OSRAM’s® finest OSLON® LEDs with a combination of 2 Flood + 6 Spot + 2 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 348m.

Built on our hugely successful ST(X)K LED & reflector platform but with a low profile design. Our ST3K range is designed specifically for application that are tight on clearance but still command maximum performance.

Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch ® DT-2 connector.

Protected against EMC and RFI.

  • Led - 10 X Osram Oslon White
  • Effective Lumen - 2,050Lm
  • Peak Intensity (Candela) - 121,600Cd
  • Operating Voltage - 10-30V
  • Dcip Rating - Ip68
  • Current Draw - 2.1A @ 13.6V
  • Colour Temperature (Cct) - 5700 Kelvin
  • Housing Material - Aluminium Extrusion & Castlensgeâ„¢ Lexan
  • Mounting Bracket - Powder Coated 3Mm Stainess Steel
  • Bolts And Fittings - 3 Series Stainless Steel
  • Beam Type - Flood Spot Combo
  • Life Span - 50,000 Hours
  • Weight - 1.650
  • Operating Environment - -40 - +50° Celsius
  • ST3K 11.5 inch LED LIGHT BAR
  • Low Profile Stainless Side Brackets
  • Stainless Fasteners
  • DT Wire Tail
  • Universal Part
