Description

Introducing our ST3K Series 21.5 Inch LED Light Bar. Running 20 of OSRAM’s® finest OSLON® LEDs with a combination of 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m.

Built on our hugely successful ST(X)K LED & reflector platform but with a low profile design. Our ST3K range is designed specifically for application that are tight on clearance but still command maximum performance.

Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch ® DT-2 connector.

Protected against EMC and RFI.

Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!

Specifications

  • Led - 20 X Osram Oslon White
  • Effective Lumen - 4,100Lm
  • Peak Intensity - 243,200Cd
  • Operating Voltage - 10-30V
  • Dcip Rating - Ip68
  • Current Draw - 4.3A @ 13.5V
  • Colour Temperature (Cct) - 5700 Kelvin
  • Housing Material - Aluminium Extrusion & Castlensgeâ„¢ Lexan
  • Mounting Bracket - Powder Coated 3Mm Stainess Steel
  • Bolts And Fittings - 3 Series Stainless Steel
  • Beam Type - Flood Spot Combo
  • Life Span - 50,000 Hours
  • Weight - 1.855
  • Operating Environment - -40 - +50° Celsius

What's Included

  • ST3K 21.5inch LED LIGHT BAR
  • Stainless Fasteners
  • Stainless Steel Side Mounting Brackets

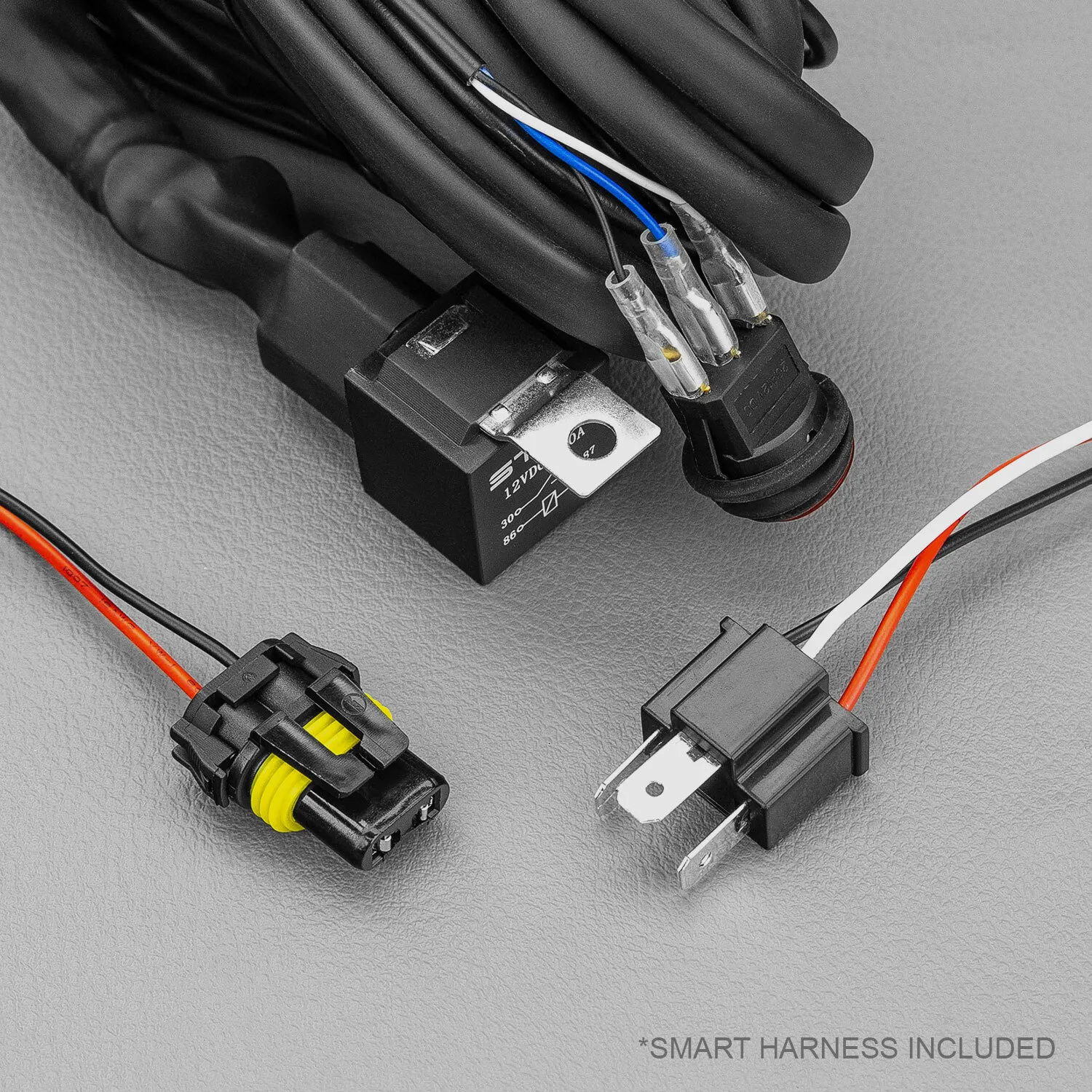

  • 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
  • H4 and HB3 adapters included
  • Wiring Instructions

Compatibility

  • Universal Part

Introducing our ST3K Series 21.5 Inch LED Light Bar. Running 20 of OSRAM’s® finest OSLON® LEDs with a combination of 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m.

Built on our hugely successful ST(X)K LED & reflector platform but with a low profile design. Our ST3K range is designed specifically for application that are tight on clearance but still command maximum performance.

Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch ® DT-2 connector.

Protected against EMC and RFI.

Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!

  • Led - 20 X Osram Oslon White
  • Effective Lumen - 4,100Lm
  • Peak Intensity - 243,200Cd
  • Operating Voltage - 10-30V
  • Dcip Rating - Ip68
  • Current Draw - 4.3A @ 13.5V
  • Colour Temperature (Cct) - 5700 Kelvin
  • Housing Material - Aluminium Extrusion & Castlensgeâ„¢ Lexan
  • Mounting Bracket - Powder Coated 3Mm Stainess Steel
  • Bolts And Fittings - 3 Series Stainless Steel
  • Beam Type - Flood Spot Combo
  • Life Span - 50,000 Hours
  • Weight - 1.855
  • Operating Environment - -40 - +50° Celsius
  • ST3K 21.5inch LED LIGHT BAR
  • Stainless Fasteners
  • Stainless Steel Side Mounting Brackets
  • 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
  • H4 and HB3 adapters included
  • Wiring Instructions
  • Universal Part
