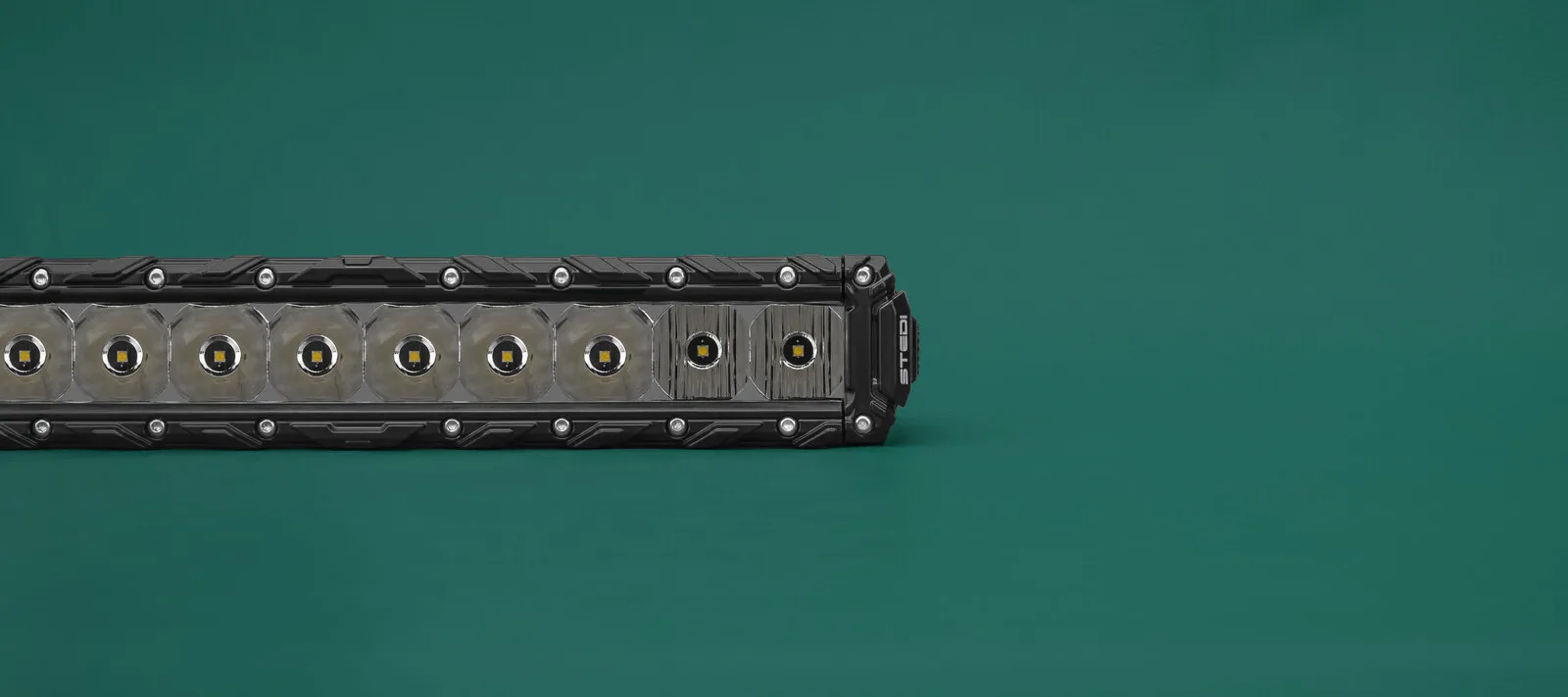

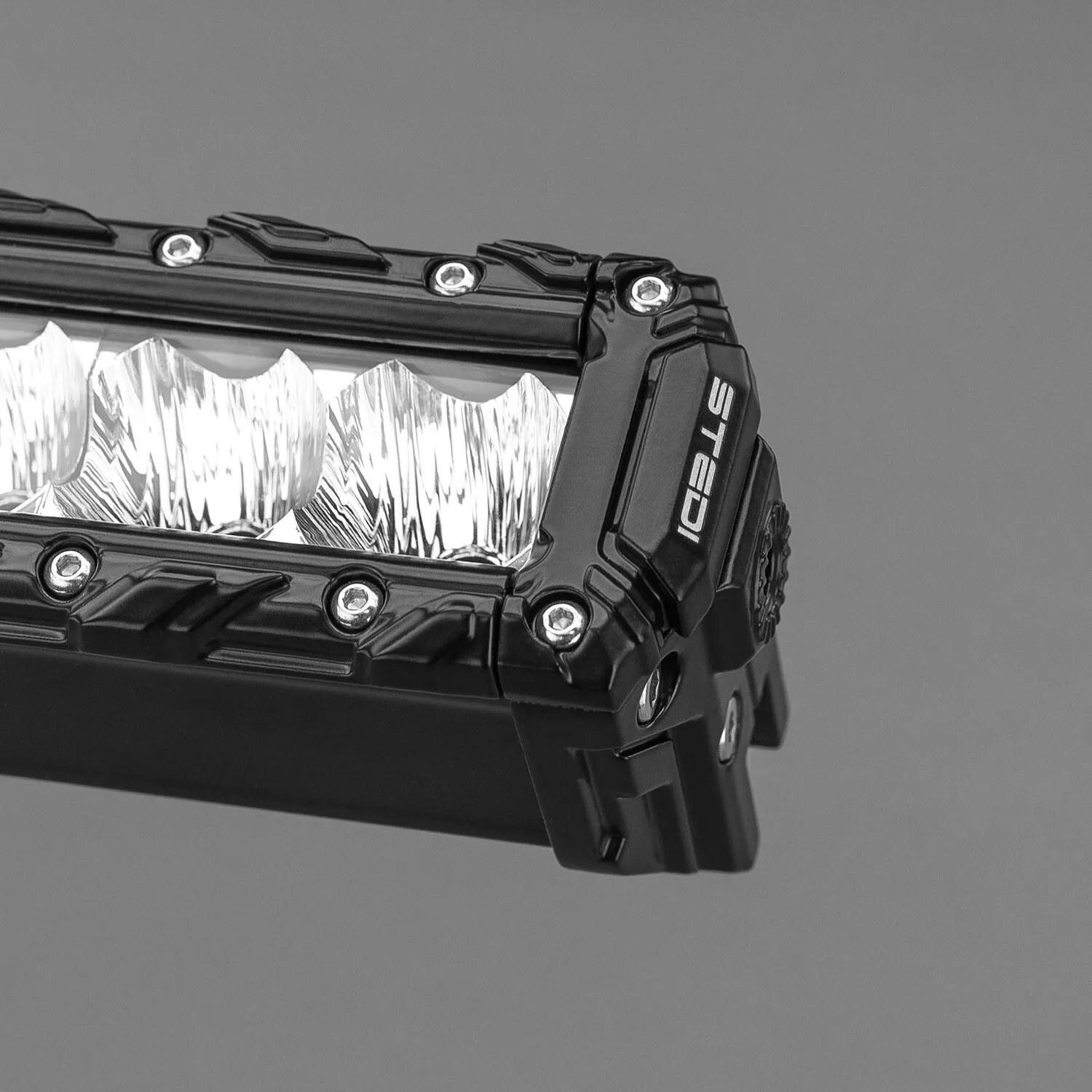

Stedi LEDST3K-30L ST3K 31.5Inch 30 LED Slim Light Bar

Parts Experts
Fast Shipping
Aussie Owned
Best Prices

Choose Your Car

Your Car

Find Your Part Clear Vehicle

Filter Search Results

Filter by Categories

Filter by Brand

Filter by Price

Description

Introducing our ST3K Series 31.5 Inch LED Light Bar. Running 30 of OSRAM’s® finest OSLON® LEDs with a combination of 6 Flood + 18 Spot + 6 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 601m.

Built on our hugely successful ST(X)K LED & reflector platform but with a low profile design. Our ST3K range is designed specifically for application that are tight on clearance but still command maximum performance.

MARKET LEADING PERFORMANCE.

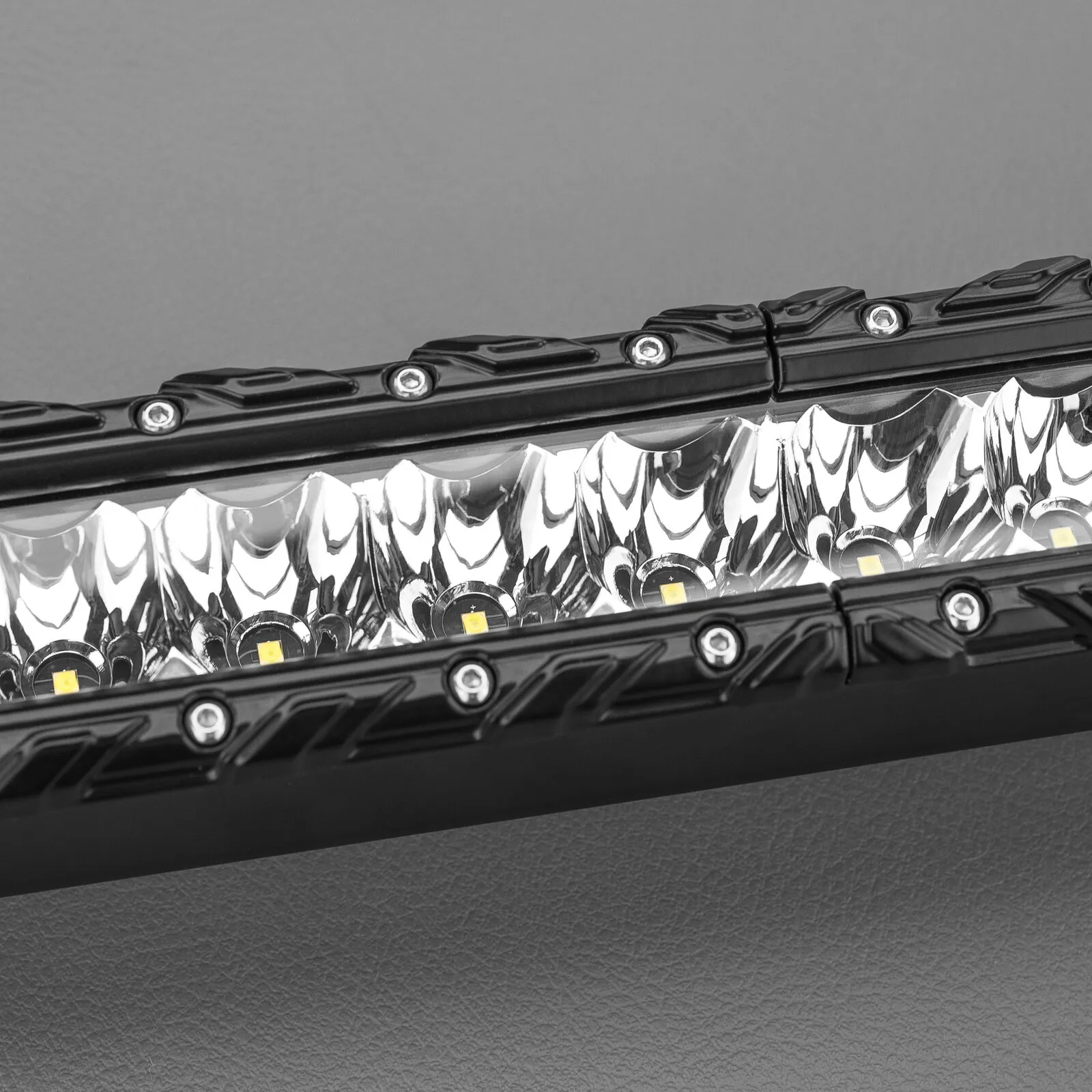

ST3K-30L features 30 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.

6 Flood + 18 Spot + 6 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 601m

True White 5700K Colour temperature offers stunning clarity and definition.

Our Pure-Drive™ circuit design allows 97% of input power to go directly to LEDs.

BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.

Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.

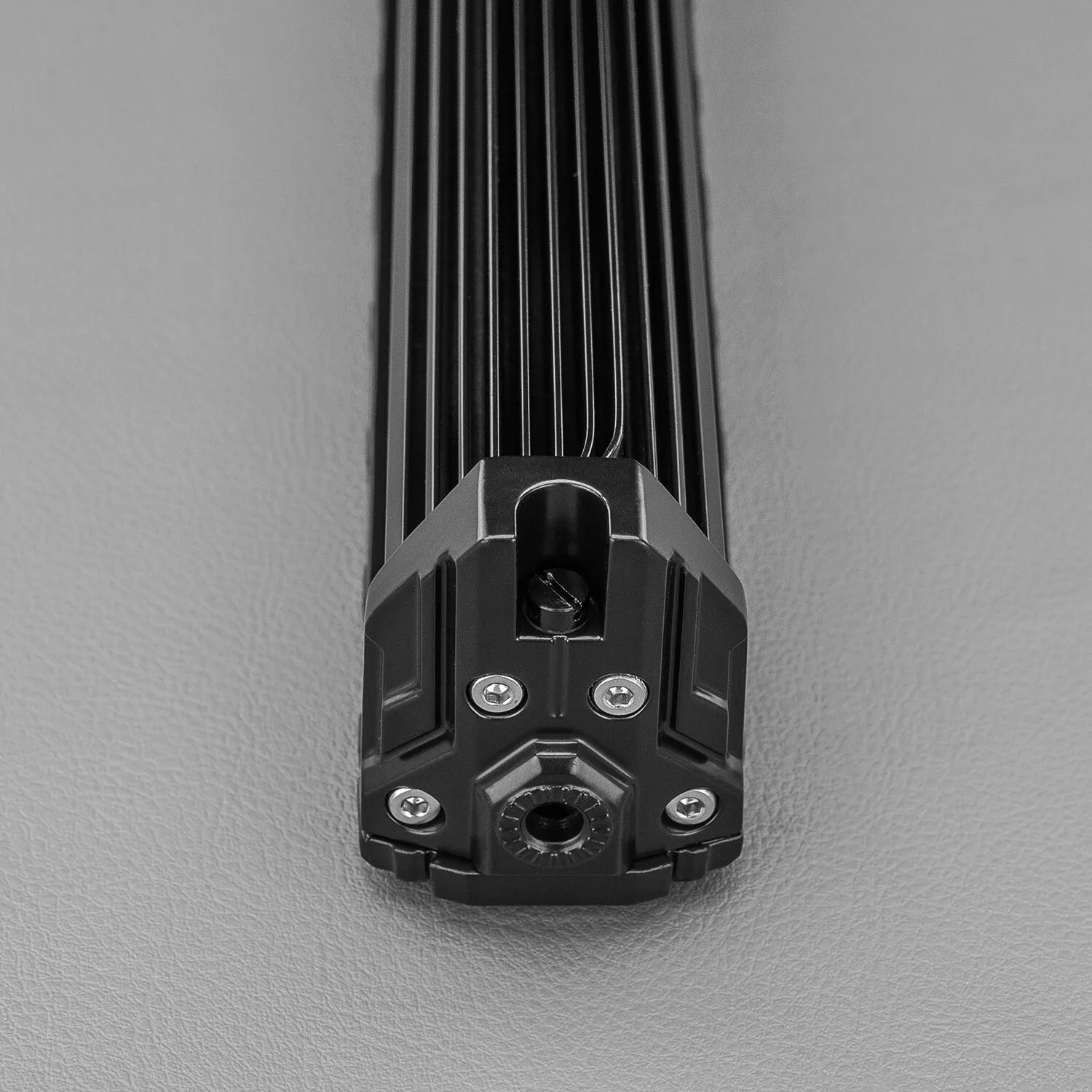

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch ® DT-2 connector.

Protected against EMC and RFI.

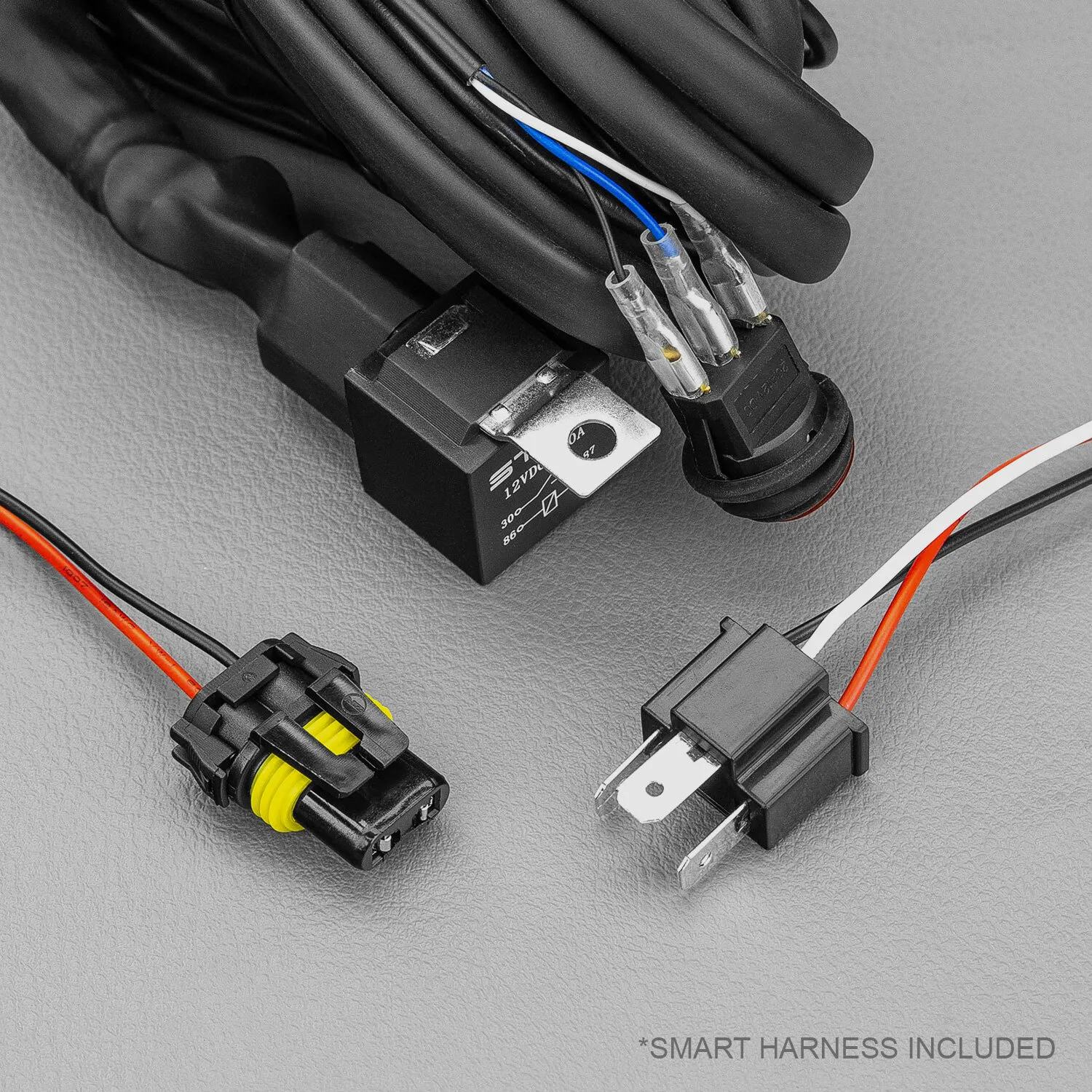

Includes our Easy-Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market, ours has built-in electronics making our harness compatible with even the most modern and sophisticated wiring systems

Backed by a 5 Year Replacement Warranty.

Specifications

LED - 30 x Osram Oslon White
EFFECTIVE LUMEN - 6,150Lm
PEAK INTENSITY (CANDELA) - 364,800cd
OPERATING VOLTAGE - 10-30V
DCIP RATING - IP68
CURRENT DRAW - 6.5A @ 13.6v
COLOUR TEMPERATURE (CCT) - 5700 Kelvin
HOUSING MATERIAL - Aluminium Extrusion & Cast
LENS - GE™ Lexan
MOUNTING BRACKET - Powder Coated 3mm Stainess Steel
BOLTS AND FITTINGS - 3 Series Stainless Steel
BEAM TYPE - Flood Spot Combo
LIFE SPAN - 50,000 Hours
WEIGHT - 2.640
OPERATING ENVIRONMENT -40 - +50° Celsius

What's Included

ST3K 31.5inch LED LIGHT BAR
Stainless Fasteners
Stainless Steel Side Mounting Brackets
12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
H4 and HB3 adapters included
Wiring Instructions

Compatibility

Universal Part

Description
Specifications

MARKET LEADING PERFORMANCE.

ST3K-30L features 30 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.

6 Flood + 18 Spot + 6 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 601m

True White 5700K Colour temperature offers stunning clarity and definition.

Our Pure-Drive™ circuit design allows 97% of input power to go directly to LEDs.

BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.

Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch ® DT-2 connector.

Protected against EMC and RFI.

Backed by a 5 Year Replacement Warranty.

LED - 30 x Osram Oslon White
EFFECTIVE LUMEN - 6,150Lm
PEAK INTENSITY (CANDELA) - 364,800cd
OPERATING VOLTAGE - 10-30V
DCIP RATING - IP68
CURRENT DRAW - 6.5A @ 13.6v
COLOUR TEMPERATURE (CCT) - 5700 Kelvin
HOUSING MATERIAL - Aluminium Extrusion & Cast
LENS - GE™ Lexan
MOUNTING BRACKET - Powder Coated 3mm Stainess Steel
BOLTS AND FITTINGS - 3 Series Stainless Steel
BEAM TYPE - Flood Spot Combo
LIFE SPAN - 50,000 Hours
WEIGHT - 2.640
OPERATING ENVIRONMENT -40 - +50° Celsius

ST3K 31.5inch LED LIGHT BAR
Stainless Fasteners
Stainless Steel Side Mounting Brackets
12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
H4 and HB3 adapters included
Wiring Instructions

Universal Part
