Description

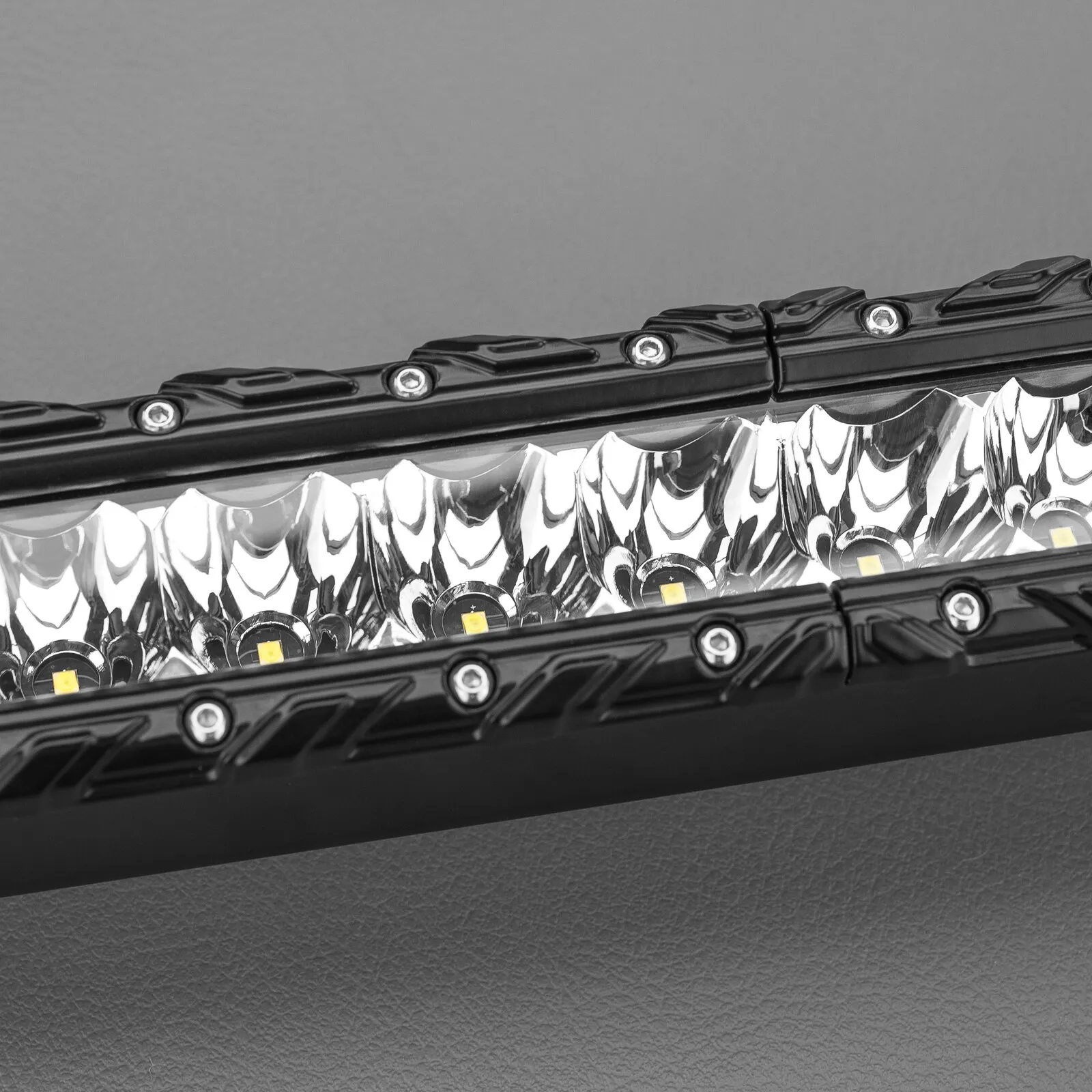

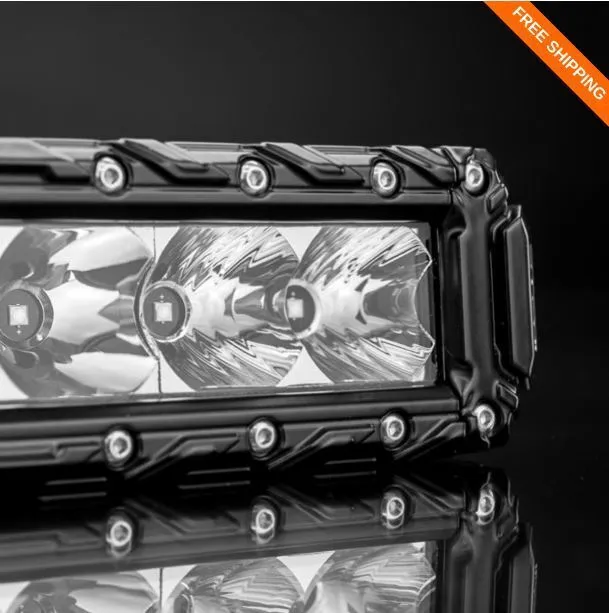

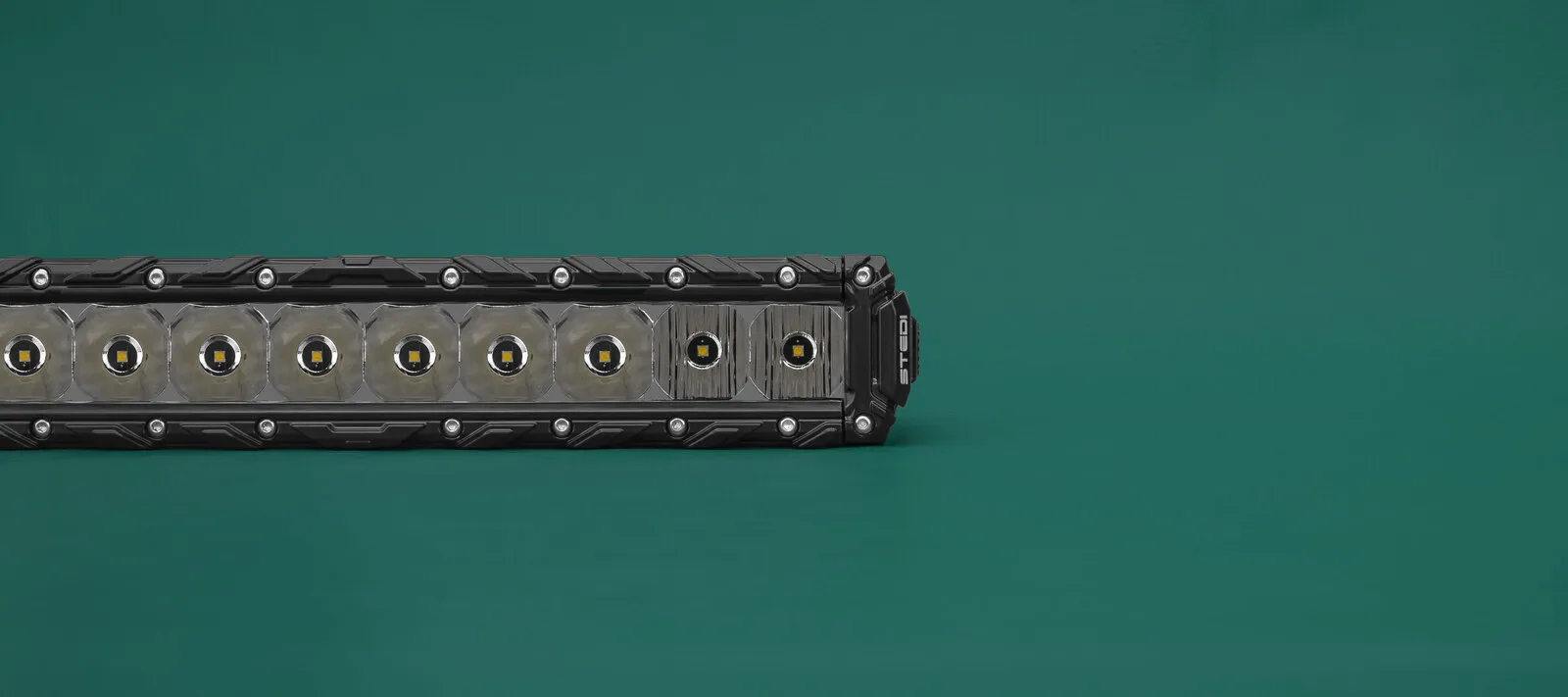

Introducing our ST3K Series 41.5 Inch LED Light Bar. Running 40 of OSRAM’s® finest OSLON® LEDs with a combination of 8 Flood + 24 Spot + 8 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 699m.

Built on our hugely successful ST(X)K LED & reflector platform but with a low profile design. Our ST3K range is designed specifically for the application that is tight on clearance but still commands maximum performance.

Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch ® DT-2 connector.

Protected against EMC and RFI.

Specifications

  • Led - 40 X Osram Oslon White
  • Effective Lumen - 8,250Lm
  • Peak Intensity (Candela) - 486,400Cd
  • Operating Voltage - 10-30V
  • Dcip Rating - Ip68
  • Current Draw - 8.6A @ 13.6V
  • Colour Temperature (Cct) - 5700 Kelvin
  • Housing Material - Aluminium Extrusion & Castlensgeâ„¢ Lexan
  • Mounting Bracket - Powder Coated 3Mm Stainess Steel
  • Bolts And Fittings - 3 Series Stainless Steel
  • Beam Type - Flood Spot Combo
  • Life Span - 50,000 Hours
  • Weight - 3.475Kg
  • Operating Environment - -40 - +50° Celsius

What's Included

  • ST3K 41.5inch LED LIGHT BAR
  • Stainless Fasteners
  • Stainless Steel Side Mounting Brackets

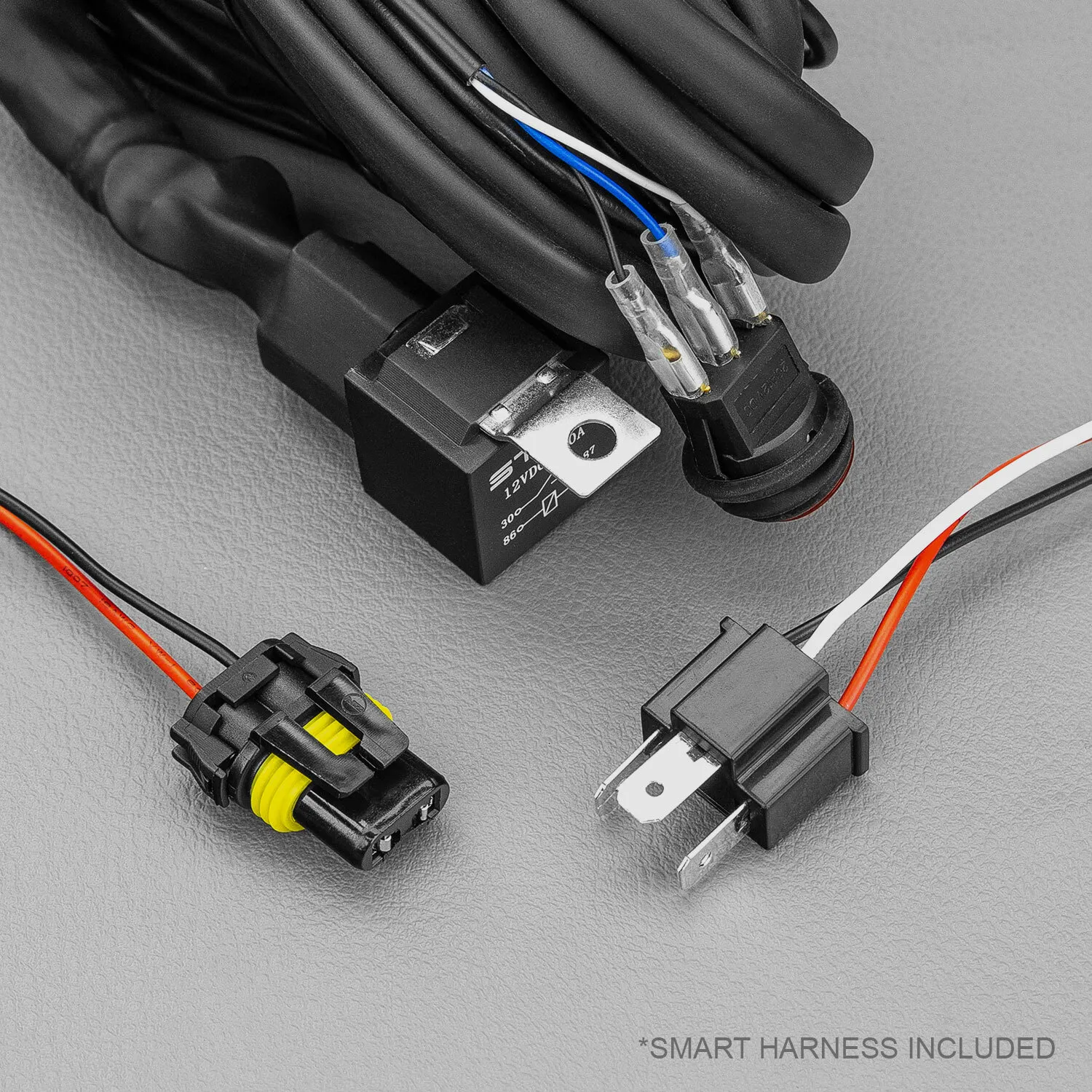

  • 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
  • H4 and HB3 adapters included
  • Wiring Instructions

Compatibility

  • Universal Part

Introducing our ST3K Series 41.5 Inch LED Light Bar. Running 40 of OSRAM’s® finest OSLON® LEDs with a combination of 8 Flood + 24 Spot + 8 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 699m.

Built on our hugely successful ST(X)K LED & reflector platform but with a low profile design. Our ST3K range is designed specifically for the application that is tight on clearance but still commands maximum performance.

Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.

Pressure Equalization vent | Protects against water ingress, dust & contaminants.

IP68 | Dust & Particle tight + Water-proof up to 3 meters!

Environmentally sealed Deutsch ® DT-2 connector.

Protected against EMC and RFI.

  • Led - 40 X Osram Oslon White
  • Effective Lumen - 8,250Lm
  • Peak Intensity (Candela) - 486,400Cd
  • Operating Voltage - 10-30V
  • Dcip Rating - Ip68
  • Current Draw - 8.6A @ 13.6V
  • Colour Temperature (Cct) - 5700 Kelvin
  • Housing Material - Aluminium Extrusion & Castlensgeâ„¢ Lexan
  • Mounting Bracket - Powder Coated 3Mm Stainess Steel
  • Bolts And Fittings - 3 Series Stainless Steel
  • Beam Type - Flood Spot Combo
  • Life Span - 50,000 Hours
  • Weight - 3.475Kg
  • Operating Environment - -40 - +50° Celsius
  • ST3K 41.5inch LED LIGHT BAR
  • Stainless Fasteners
  • Stainless Steel Side Mounting Brackets
  • 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
  • H4 and HB3 adapters included
  • Wiring Instructions
  • Universal Part
