Description

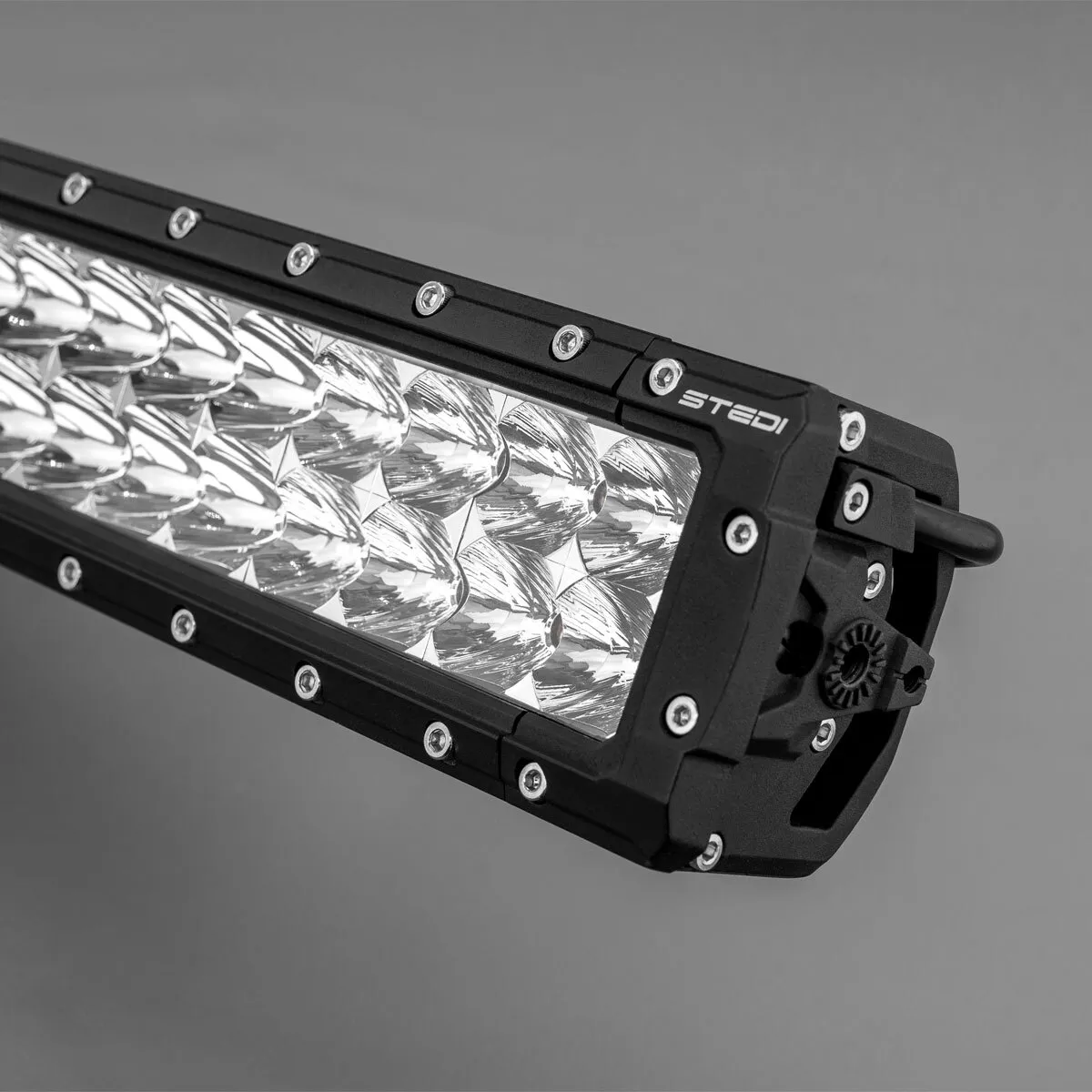

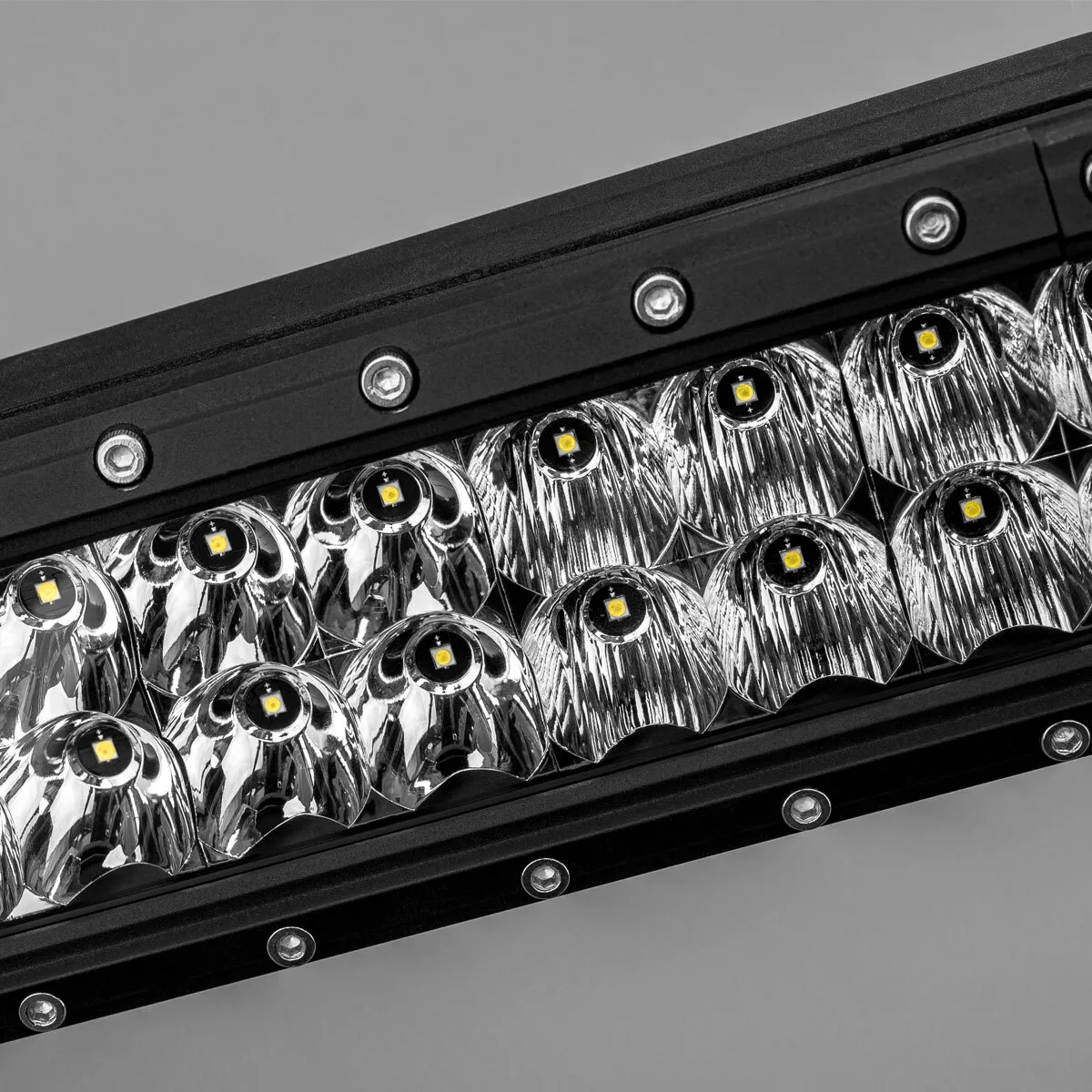

Our all new ST4K™ 28 Inch is the culmination of years of our proven experience in delivering market leading LED auxiliary lighting. Fitted with 52 of OSRAM’s® finest OSLON® LED for a combination of 8 Flood + 36 Spot + 8 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 755m



The ST4Kâ„¢ range feature our all new 3-part beam adopted from our flag-ship Type-X driving light which has proven to outperform spot lights costing 3 x our price and a massive +165% increase in lux performance in comparison to the outgoing ST4000!



Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).

Specifications

  • Led Manufacture - Osram (Oslon) ®
  • Led Count - 52
  • Voltage - 12V & 24V
  • Lens Material - Optical Grade, Hard Coated Lexan
  • Lumens - 12,480 Lumens
  • Peak Intensity - (Candela)574,080Cd
  • Housing Materiala - 360.0 Cast Face Plate, Extruded Aluminum Heat Sink
  • Amperes - 11.5A @ 13.6V
  • Lifespan - 50,000
  • Flood Beam - 50°
  • Spot Beam - 5.8°
  • Ingress Protection - Ip68
  • Operating Temp - -40°C To 60°C
  • Weight - 3.660Kg

What's Included

  • 1 x ST4K-52 STEDI Oslon LED Light Bar
  • 2 x Brushed Stainless Steel Side Brackets
  • 2 x Adjustable Sliding Brackets
  • Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
  • Cable Ties
  • Wiring Instructions

Compatibility

  • Universal Part

Our all new ST4K™ 28 Inch is the culmination of years of our proven experience in delivering market leading LED auxiliary lighting. Fitted with 52 of OSRAM’s® finest OSLON® LED for a combination of 8 Flood + 36 Spot + 8 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 755m



The ST4Kâ„¢ range feature our all new 3-part beam adopted from our flag-ship Type-X driving light which has proven to outperform spot lights costing 3 x our price and a massive +165% increase in lux performance in comparison to the outgoing ST4000!



Crystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI).

  • Led Manufacture - Osram (Oslon) ®
  • Led Count - 52
  • Voltage - 12V & 24V
  • Lens Material - Optical Grade, Hard Coated Lexan
  • Lumens - 12,480 Lumens
  • Peak Intensity - (Candela)574,080Cd
  • Housing Materiala - 360.0 Cast Face Plate, Extruded Aluminum Heat Sink
  • Amperes - 11.5A @ 13.6V
  • Lifespan - 50,000
  • Flood Beam - 50°
  • Spot Beam - 5.8°
  • Ingress Protection - Ip68
  • Operating Temp - -40°C To 60°C
  • Weight - 3.660Kg
  • 1 x ST4K-52 STEDI Oslon LED Light Bar
  • 2 x Brushed Stainless Steel Side Brackets
  • 2 x Adjustable Sliding Brackets
  • Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
  • Cable Ties
  • Wiring Instructions
  • Universal Part
