Description

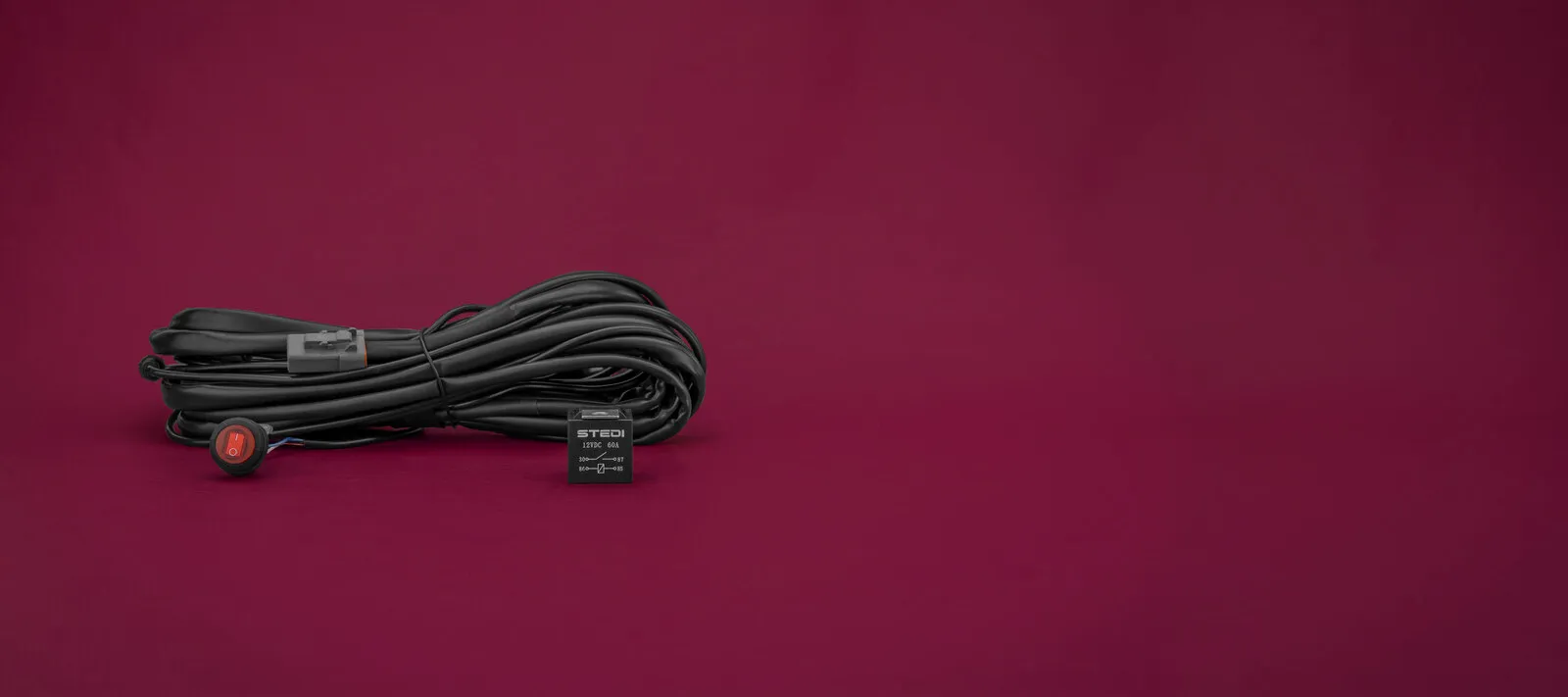

Plug & Play Wiring Harness for Quick Fit installation of your driving lights. The supplied H3 (HB3) and H4 Adapters trigger your driving lights from your high beam without cutting or soldering any wiring. Simply unplug your HB3 or H4 connector at the back of your headlight's bulb, plug in our adapter and you're done! Driving lights will only trigger from a high beam, and the switch will act only as an isolator.

Specifications

  • Wiring Kit Rating - 12Vdc 30A
  • Relay Rating - 12Vdc 60A

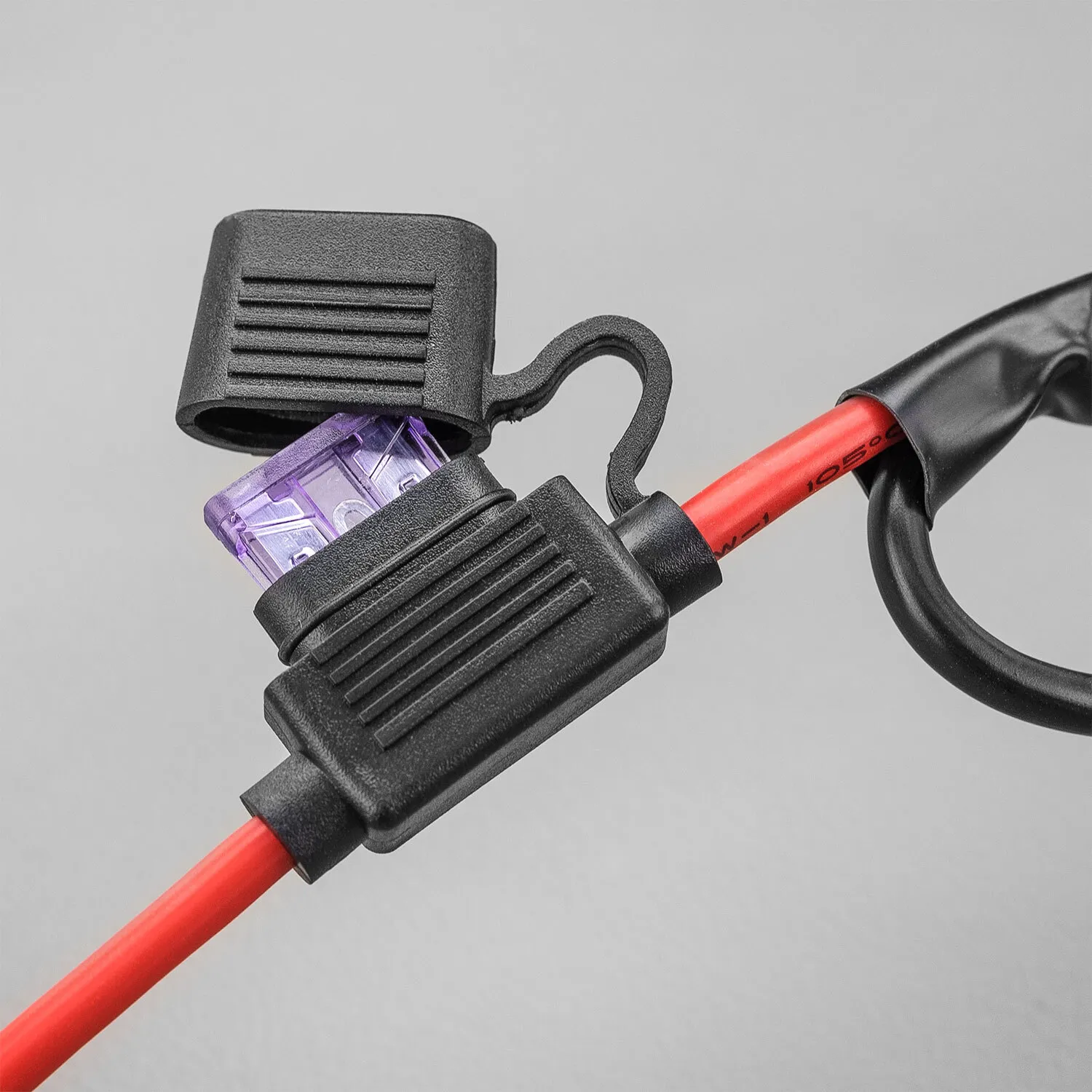

  • Fuse - 30A

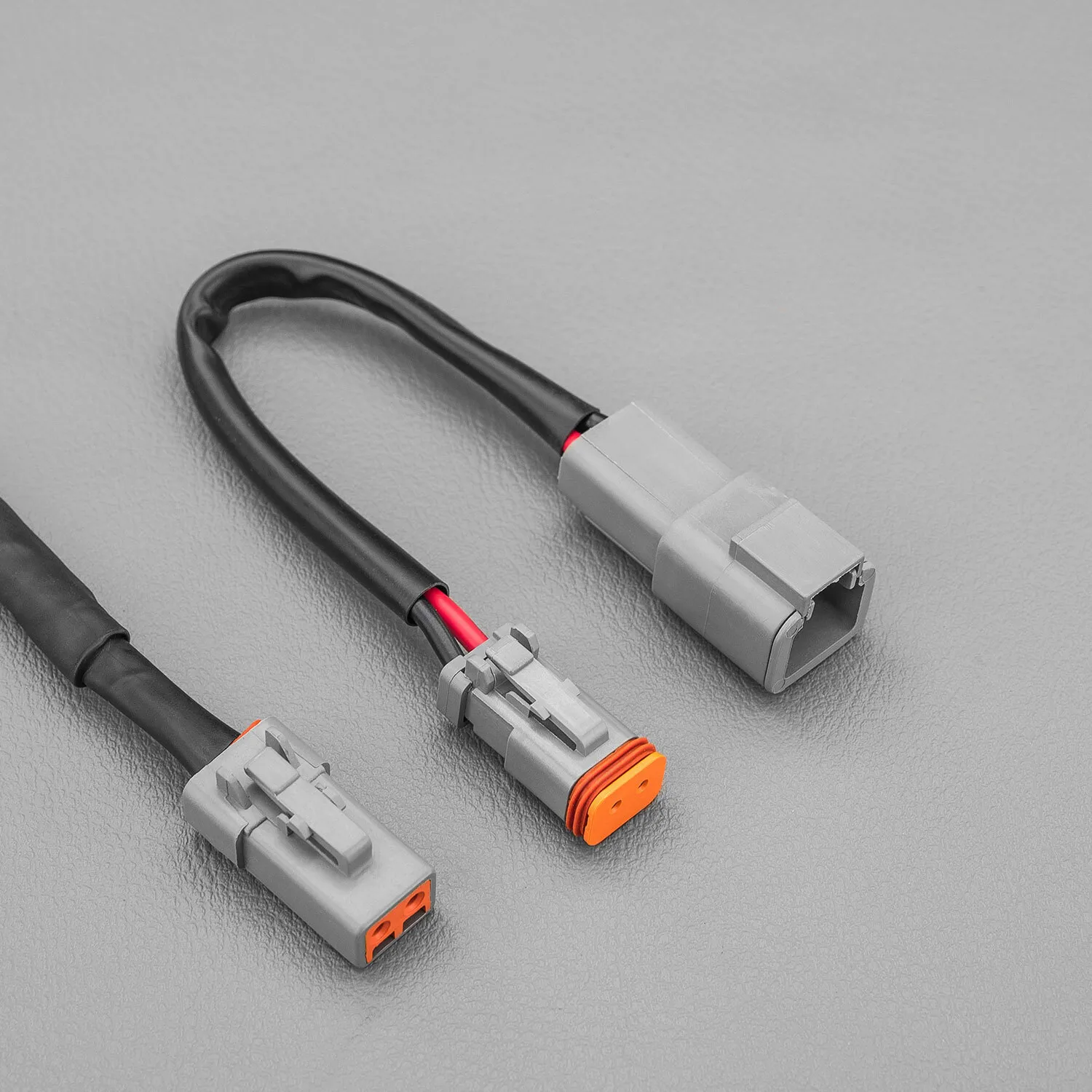

  • Light Connector - Deutsch Dt Waterproof
  • Instruction - Included
  • Max Load - 25A @12V

What's Included

  • 1 x Quick Fit to High Beam Plug & Play Wiring Harness
  • Instruction Leaflet

Compatibility

  • Universal Part

Plug & Play Wiring Harness for Quick Fit installation of your driving lights. The supplied H3 (HB3) and H4 Adapters trigger your driving lights from your high beam without cutting or soldering any wiring. Simply unplug your HB3 or H4 connector at the back of your headlight's bulb, plug in our adapter and you're done! Driving lights will only trigger from a high beam, and the switch will act only as an isolator.

  • Wiring Kit Rating - 12Vdc 30A
  • Relay Rating - 12Vdc 60A
  • Fuse - 30A
  • Light Connector - Deutsch Dt Waterproof
  • Instruction - Included
  • Max Load - 25A @12V
  • 1 x Quick Fit to High Beam Plug & Play Wiring Harness
  • Instruction Leaflet
  • Universal Part
