Superior Shock Absorber Shim Stack 90-130 Compression Pack.

This is the standard shim stack supplied in the Superior shocks suitbale for Patrol GQ/GU Front/Rear,

LandCruiser 80/100 Series Front/Rear & LandCruiser 76/78/79 Series Front

This pack has the shims required to valve your Superior Engineering Shocks to the following.

90kg @ 50cm per second on Compression(Adjuster knob set to 1)

130kg @ 50cm per second on Compression(Adjuster knob set to 8)

NOTE: This pack only contains enough shims for one shock.

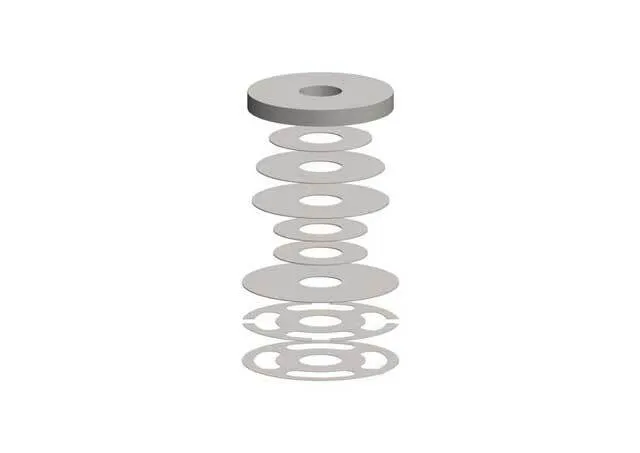

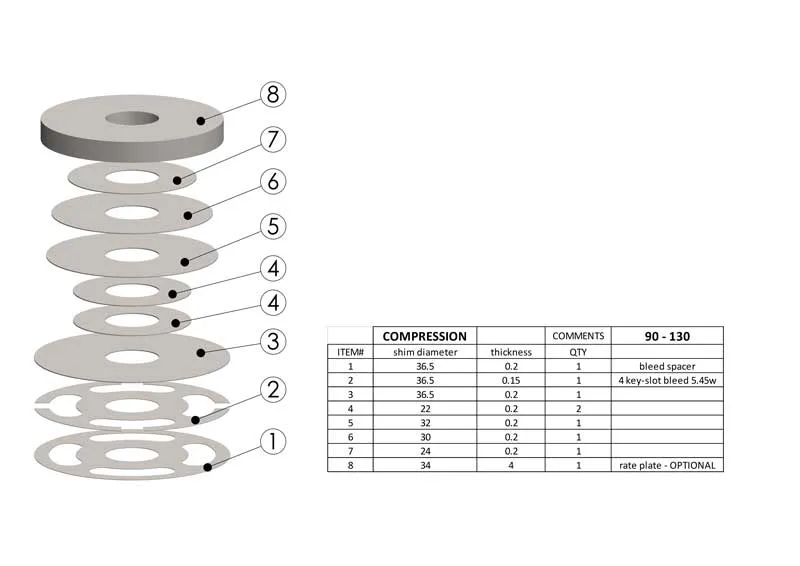

Kit Includes the following shims
  • 1 x 36.5 x 0.2mm bleed spacer
  • 1 x 36.5 x 0.15 4 key-slot bleed 5.45w
  • 1 x 36.5 x 0.2mm
  • 2 x 22 x 0.2mm
  • 1 x 32 x 0.2mm
  • 1 x 30 x 0.2mm
  • 1 x 24 x 0.2mm
  • 1 x 34 x 4mm Rate Plate(optional)

Specifications

Compatibility

  • Universal Part
Superior Shock Absorber Shim Stack 90-130 Compression Pack.

This is the standard shim stack supplied in the Superior shocks suitbale for Patrol GQ/GU Front/Rear,

LandCruiser 80/100 Series Front/Rear & LandCruiser 76/78/79 Series Front

This pack has the shims required to valve your Superior Engineering Shocks to the following.

90kg @ 50cm per second on Compression(Adjuster knob set to 1)

130kg @ 50cm per second on Compression(Adjuster knob set to 8)

NOTE: This pack only contains enough shims for one shock.

Kit Includes the following shims
  • 1 x 36.5 x 0.2mm bleed spacer
  • 1 x 36.5 x 0.15 4 key-slot bleed 5.45w
  • 1 x 36.5 x 0.2mm
  • 2 x 22 x 0.2mm
  • 1 x 32 x 0.2mm
  • 1 x 30 x 0.2mm
  • 1 x 24 x 0.2mm
  • 1 x 34 x 4mm Rate Plate(optional)
  • Universal Part
