Description

Easy suspension tuning is in your hands. S.Tech was made so that everyone can enjoy sports driving. Based on OE specification so that the installation is easy. Full compliance with car inspection. Great styling, plus more fun to drive. The highest quality all brought to you at great prices. Now comes in two types to choose from.

Comforms to Vehicle Safety Regulation (in Japan)
With these new springs, we have been able to maintain the 90mm road clearance legislated in the new safety regulations.

Line Up
Available for a wide array of vehicle models. The best applicable setting to satisfy drivers, either for good appearance or for sport driving.

Cost Efficient
Easy suspension tuning for everyone. Under thorough cost management and improvement of the production line, S.TECH is offered at a very affordable price, even with the use of high-tensile materials with over 200kgf/mm2 (some exceptions).

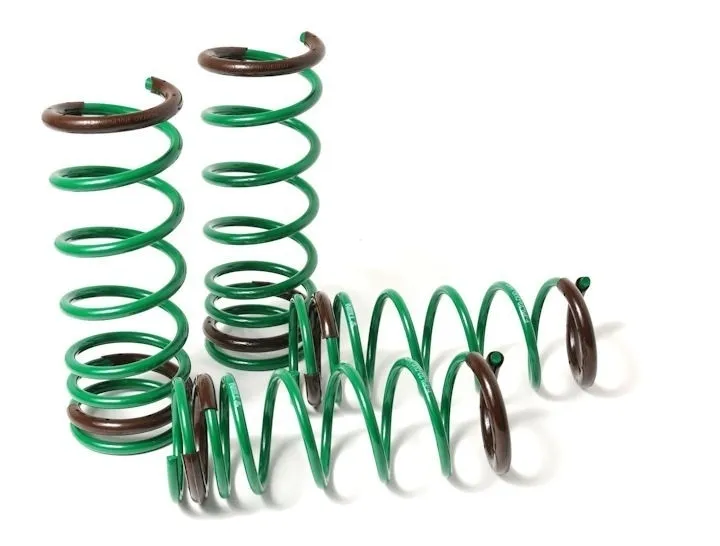

Note: Image is only a representation of the coilovers. TEIN doesn't have vehicle specific images. Your coilover will be specific to your vehicle. If you have any questions about this kit, please contact us.

Specifications

              SPRING RATE
(kgf/mm)
RIDE HEIGHT
CHANGE(mm)

MAKE MODEL YEAR NOTE CHASSIS DISPLACEMENT DRIVE SYSTEM Ft Rr Ft Rr REMARKS
HONDA CIVIC TYPE R 09/2017-08/2022 TYPE R FK8 2000 FWD 5.3 4.8 -25 -25 FT: CUT BUMP RUBBER AT 20MM FROM THE BOTTOM AND USE THE UPPER PORTION. RR: CUT BUMP RUBBER AT 10MM FROM THE BOTTOM AND USE THE UPPER PORTION.
HONDA CIVIC TYPE R 2017-2021 TYPE R FK8 2000 FWD 5.3 4.8 -25 -25 FT: CUT BUMP RUBBER AT 20MM FROM THE BOTTOM AND USE THE UPPER PORTION. RR: CUT BUMP RUBBER AT 10MM FROM THE BOTTOM AND USE THE UPPER PORTION.
HONDA CIVIC TYPE R 09/2022+ TYPE R FL5 2000 FWD 5.3 4.8 -20 -25 FT: CUT BUMP RUBBER AT 20MM FROM THE BOTTOM AND USE THE UPPER PORTION. RR: CUT BUMP RUBBER AT 10MM FROM THE BOTTOM AND USE THE UPPER PORTION.
HONDA CIVIC TYPE R 2022+ TYPE R FL5 2000 FWD 5.3

Compatibility

  • Honda Civic Type R FK8 2017.09-2022.08
  • Honda Civic Type R FK8 2017-2021
  • Honda Civic Type R FL5 2022.09+
  • Honda Civic Type R FL5 2022+
  • Honda Civic Type R FL5 2023+

Easy suspension tuning is in your hands. S.Tech was made so that everyone can enjoy sports driving. Based on OE specification so that the installation is easy. Full compliance with car inspection. Great styling, plus more fun to drive. The highest quality all brought to you at great prices. Now comes in two types to choose from.

Comforms to Vehicle Safety Regulation (in Japan)
With these new springs, we have been able to maintain the 90mm road clearance legislated in the new safety regulations.

Line Up
Available for a wide array of vehicle models. The best applicable setting to satisfy drivers, either for good appearance or for sport driving.

Cost Efficient
Easy suspension tuning for everyone. Under thorough cost management and improvement of the production line, S.TECH is offered at a very affordable price, even with the use of high-tensile materials with over 200kgf/mm2 (some exceptions).

Note: Image is only a representation of the coilovers. TEIN doesn't have vehicle specific images. Your coilover will be specific to your vehicle. If you have any questions about this kit, please contact us.

              SPRING RATE
(kgf/mm)
RIDE HEIGHT
CHANGE(mm)

MAKE MODEL YEAR NOTE CHASSIS DISPLACEMENT DRIVE SYSTEM Ft Rr Ft Rr REMARKS
HONDA CIVIC TYPE R 09/2017-08/2022 TYPE R FK8 2000 FWD 5.3 4.8 -25 -25 FT: CUT BUMP RUBBER AT 20MM FROM THE BOTTOM AND USE THE UPPER PORTION. RR: CUT BUMP RUBBER AT 10MM FROM THE BOTTOM AND USE THE UPPER PORTION.
HONDA CIVIC TYPE R 2017-2021 TYPE R FK8 2000 FWD 5.3 4.8 -25 -25 FT: CUT BUMP RUBBER AT 20MM FROM THE BOTTOM AND USE THE UPPER PORTION. RR: CUT BUMP RUBBER AT 10MM FROM THE BOTTOM AND USE THE UPPER PORTION.
HONDA CIVIC TYPE R 09/2022+ TYPE R FL5 2000 FWD 5.3 4.8 -20 -25 FT: CUT BUMP RUBBER AT 20MM FROM THE BOTTOM AND USE THE UPPER PORTION. RR: CUT BUMP RUBBER AT 10MM FROM THE BOTTOM AND USE THE UPPER PORTION.
HONDA CIVIC TYPE R 2022+ TYPE R FL5 2000 FWD 5.3
  • Honda Civic Type R FK8 2017.09-2022.08
  • Honda Civic Type R FK8 2017-2021
  • Honda Civic Type R FL5 2022.09+
  • Honda Civic Type R FL5 2022+
  • Honda Civic Type R FL5 2023+
