Description

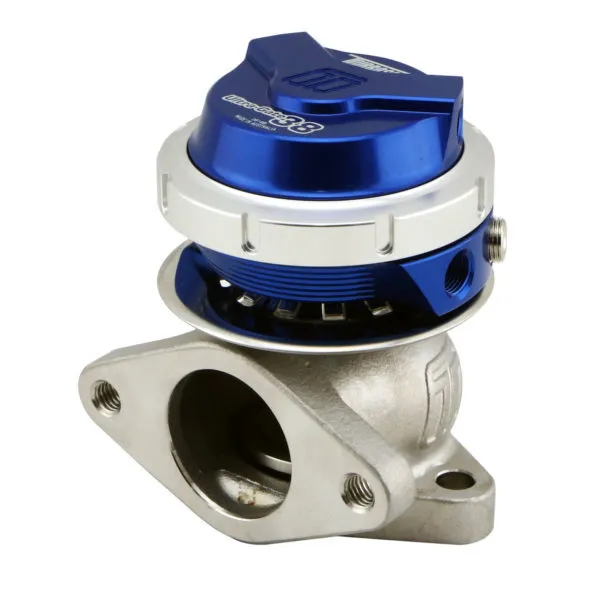

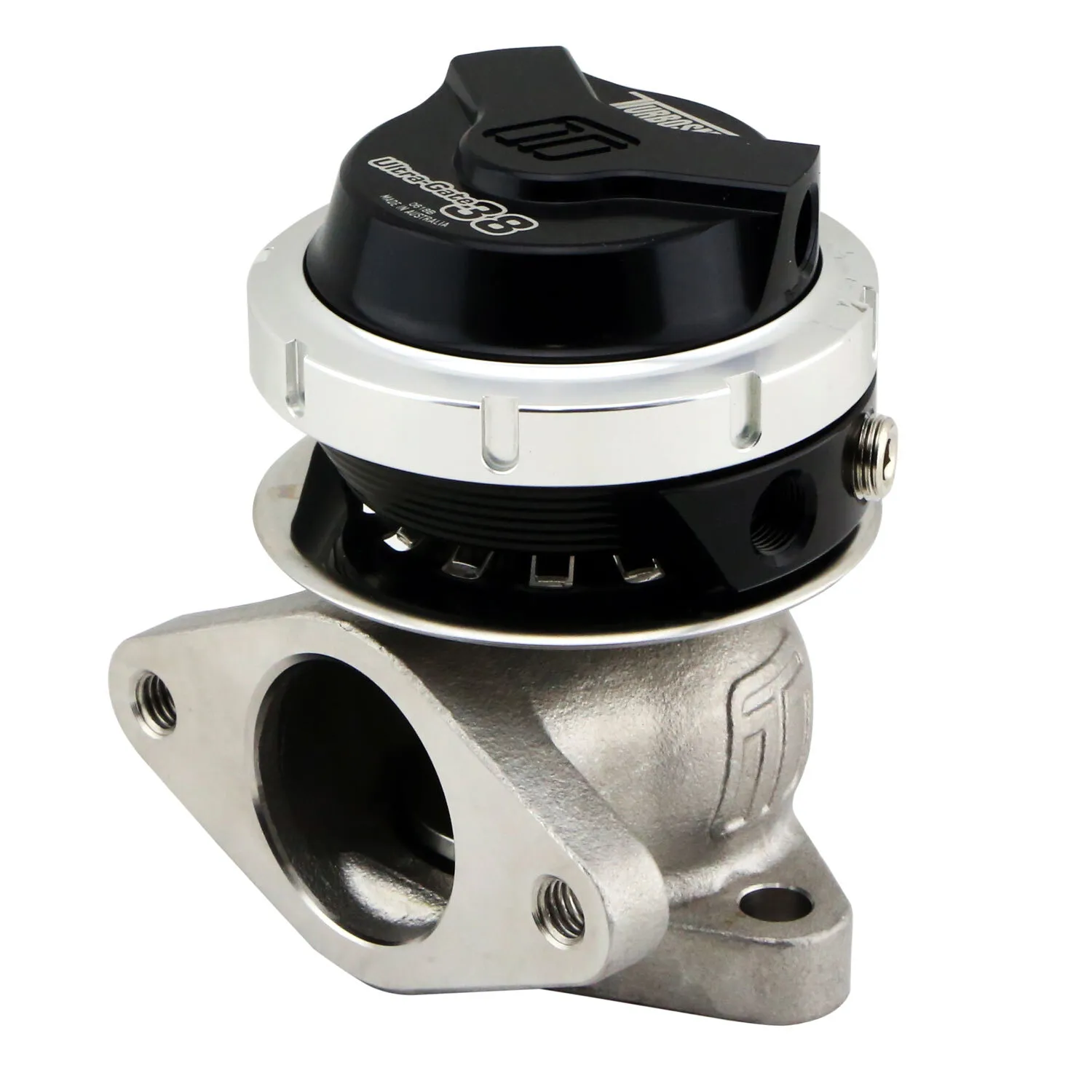

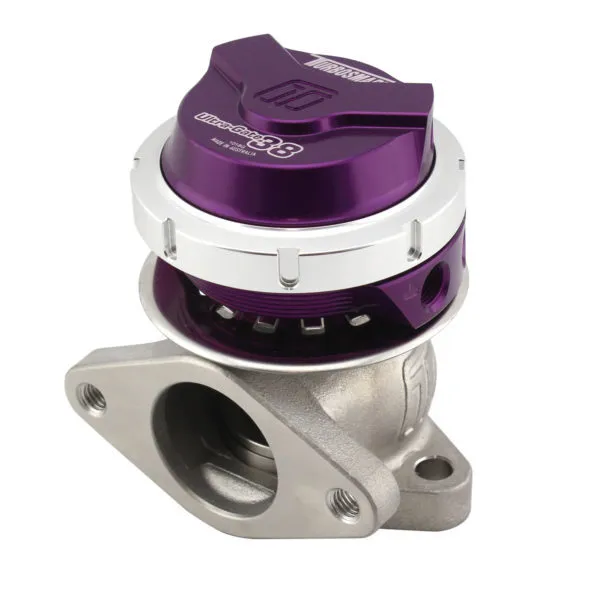

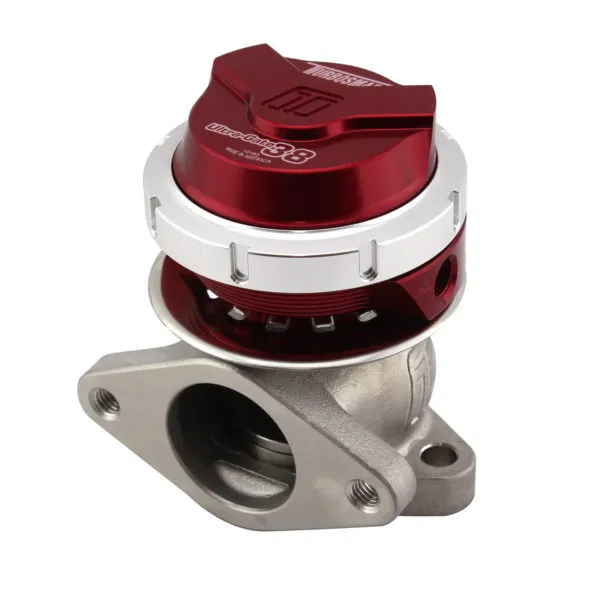

The Gen-V WG38 Ultra-Gate38 external wastegate is a cost effective, high performing 38mm external wastegate designed for bolt on solutions where the 2-bolt flange is utilised.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

 A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, classic 2 bolt flanges (71mm spacing), liquid-cooling, 1/8? NPT ports, and are provided with a range of springs.

Product features summary:

  • Liquid cooling provision
  • User adjustable actuator position
  • Modular actuator design

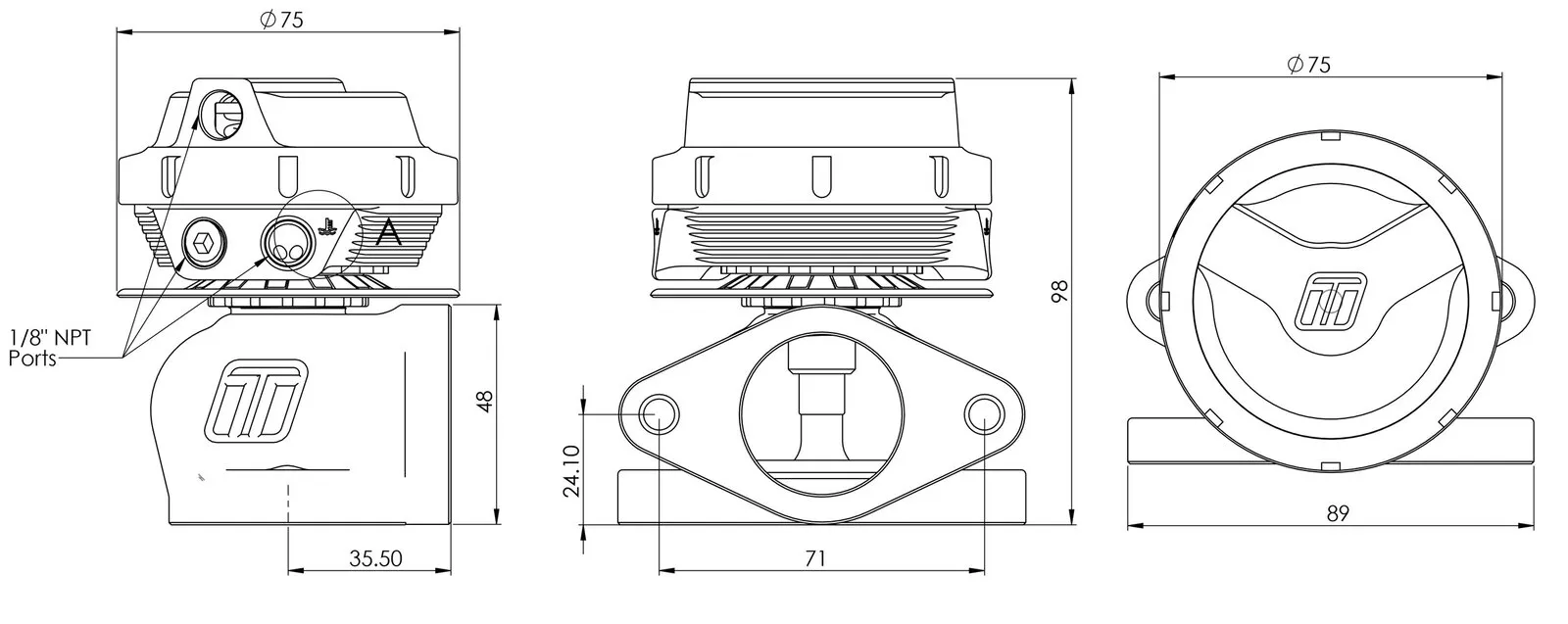

  • Suitable for 2 bolt flange applications (71 mm spacing)

Specifications

  • Pressure: 14psi
  • Colour: Blue

What's Included

  • Wastegate unit (pre-assembled with spring as per order)
  • SS316 Valve seat
  • WG38 SS manifold gaskets
  • Mounting Bolts and Nuts
  • Collar tool (master/slave)
  • 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
  • 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
  • Sticker
  • Instruction card

Compatibility

  • Universal Part

The Gen-V WG38 Ultra-Gate38 external wastegate is a cost effective, high performing 38mm external wastegate designed for bolt on solutions where the 2-bolt flange is utilised.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

 A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, classic 2 bolt flanges (71mm spacing), liquid-cooling, 1/8? NPT ports, and are provided with a range of springs.

Product features summary:

  • Liquid cooling provision
  • User adjustable actuator position
  • Modular actuator design
  • Suitable for 2 bolt flange applications (71 mm spacing)
  • Pressure: 14psi
  • Colour: Blue
  • Wastegate unit (pre-assembled with spring as per order)
  • SS316 Valve seat
  • WG38 SS manifold gaskets
  • Mounting Bolts and Nuts
  • Collar tool (master/slave)
  • 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
  • 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
  • Sticker
  • Instruction card
  • Universal Part
