Description

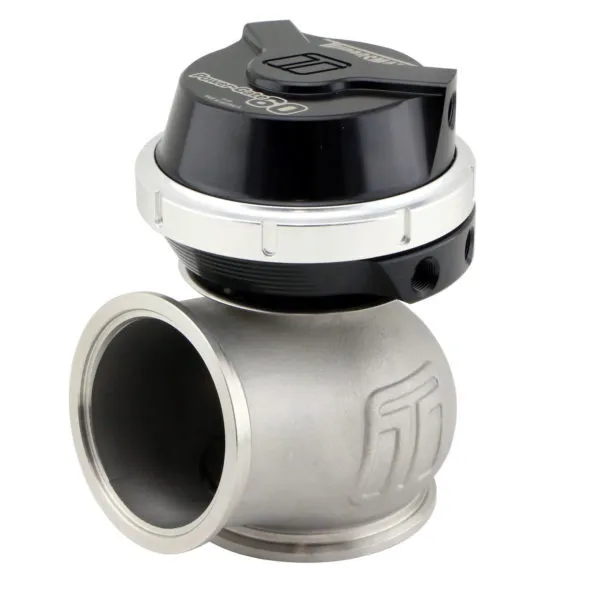

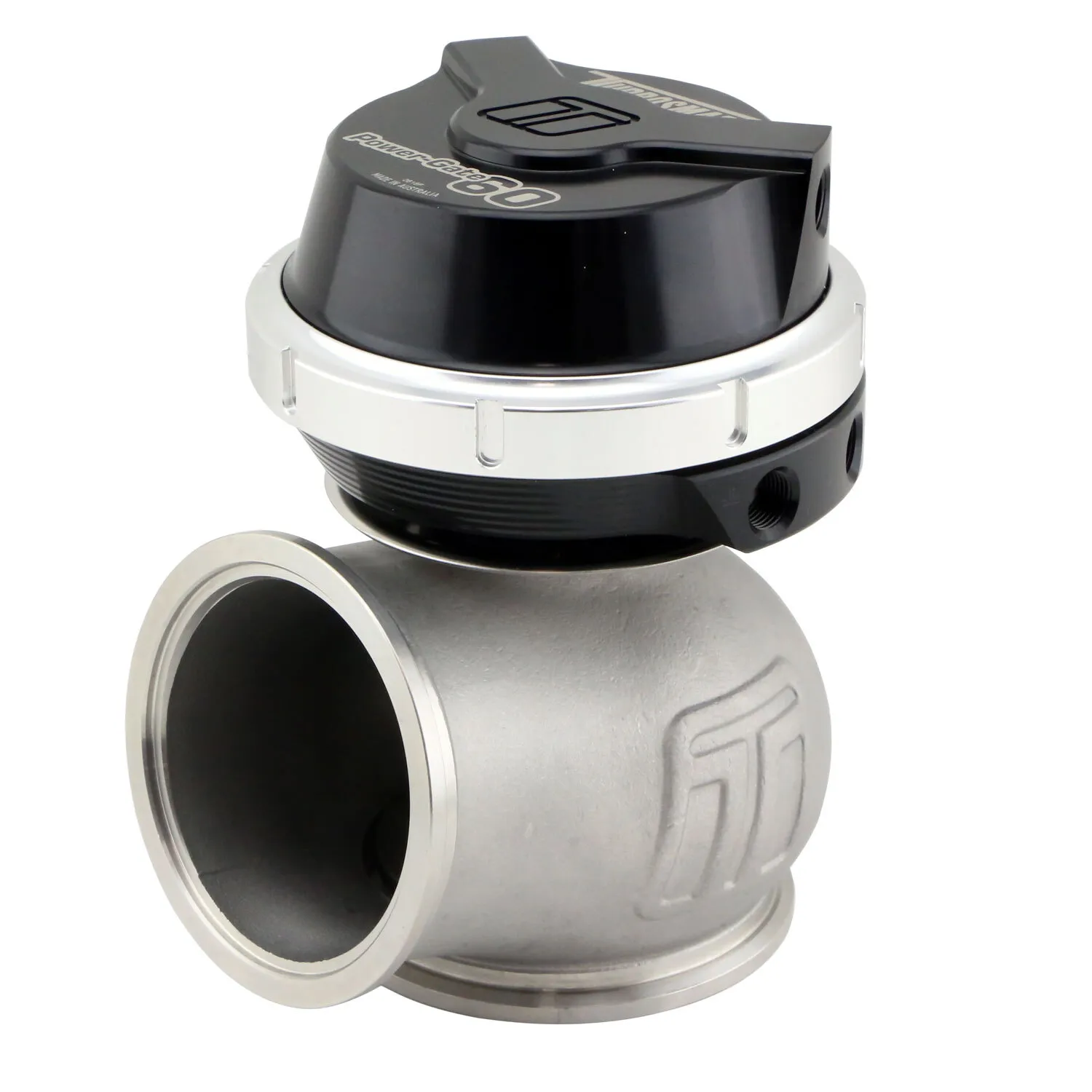

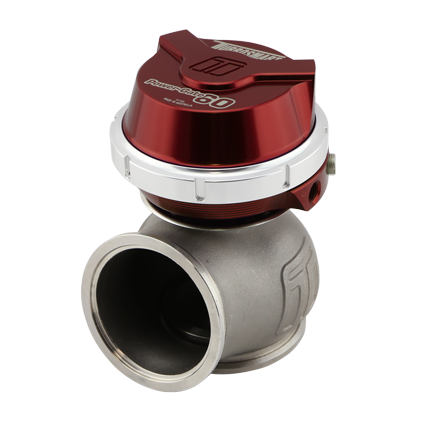

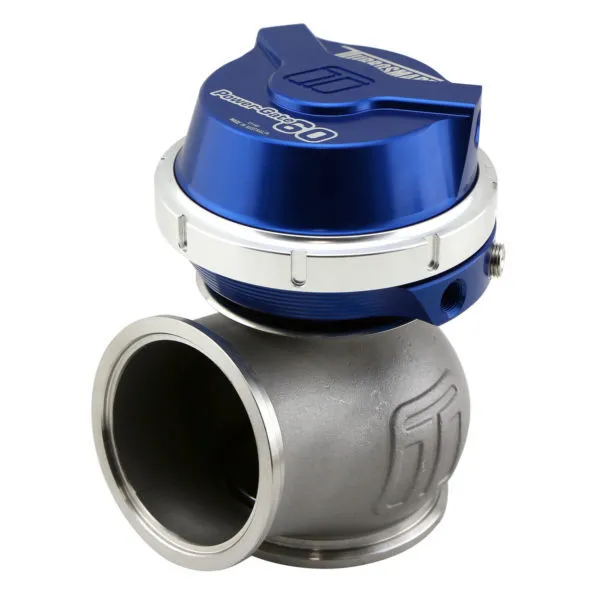

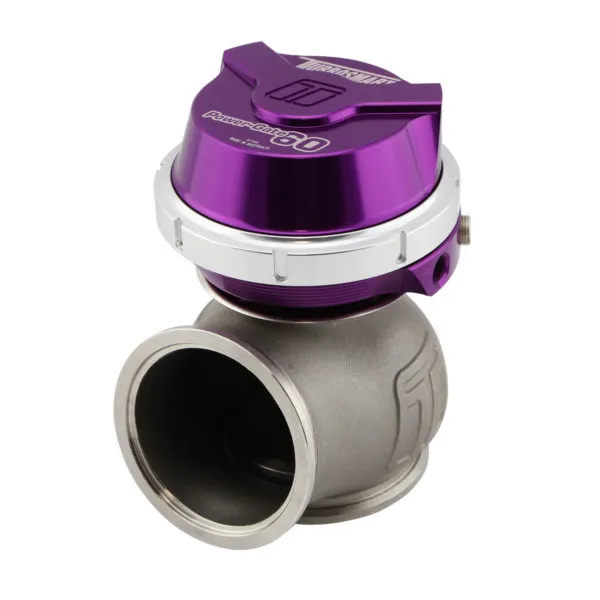

The Gen-V WG60 Power-Gate60 external wastegate is a cost effective, high performing 60mm external wastegate, the largest in the Gen-V range.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8? NPT ports, and are provided with a range of springs.

Available in Compressed Gas configuration

Product features summary:

  • Class leading thermal performance
  • Class leading flow performance
  • Liquid cooling provision
  • Strap type V-band clamps
  • User adjustable actuator position
  • Modular actuator design
  • Compressed Gas configuration available

Specifications

  • Pressure: 14psi
  • Colour: Purple

What's Included

  • Wastegate unit (pre-assembled with spring as per order)
  • SS316 Valve seat
  • Inlet V-Band
  • Inlet SS304 weld flange
  • Outlet V-Band
  • Outlet SS304 weld flange
  • Collar tool (master/slave)
  • 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
  • 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
  • Sticker
  • Instruction card

Compatibility

  • Universal Part

The Gen-V WG60 Power-Gate60 external wastegate is a cost effective, high performing 60mm external wastegate, the largest in the Gen-V range.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8? NPT ports, and are provided with a range of springs.

Available in Compressed Gas configuration

Product features summary:

  • Class leading thermal performance
  • Class leading flow performance
  • Liquid cooling provision
  • Strap type V-band clamps
  • User adjustable actuator position
  • Modular actuator design
  • Compressed Gas configuration available
  • Pressure: 14psi
  • Colour: Purple
  • Wastegate unit (pre-assembled with spring as per order)
  • SS316 Valve seat
  • Inlet V-Band
  • Inlet SS304 weld flange
  • Outlet V-Band
  • Outlet SS304 weld flange
  • Collar tool (master/slave)
  • 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
  • 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
  • Sticker
  • Instruction card
  • Universal Part
