Description

Walbro / TI Automotive 535 / 540 lph High Pressure Unleaded & E85 In Tank Fuel Pump. This is the latest and greatest version of the venerable Walbro 460 lph pump, with even higher flow than ever.

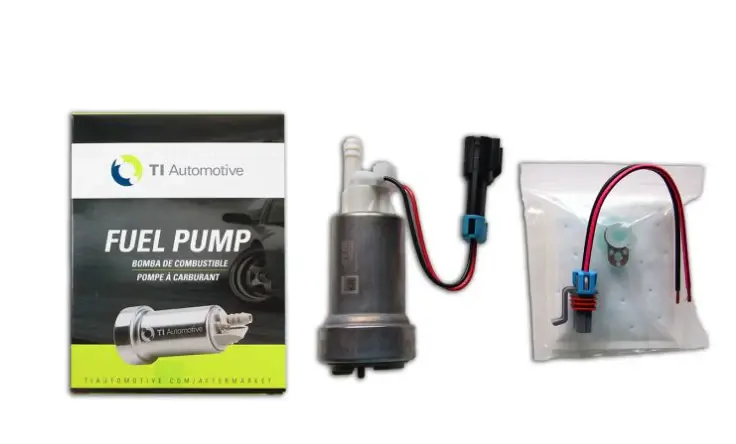

Comes complete with installation kit including fuel pump, wire harness, and pickup filter. Genuine hologrammed, locally delivered fuel pump sourced directly from the Australian distributor for Walbro / TI Automotive.

These high flow & pressure fuel pumps feature an impeller with two parallel rows of turbine blades that feed two high-pressure pumping channels. This modern design results in minimal noise and current draw, and efficiency thatÂ’s 20 percent greater than conventional fuel pumps like your standard Bosch 044 or 023.

The Walbro 540lph fuel pump flows enough fuel to support 900hp and is ideal for very high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 or Walbro 460 fuel pump wonÂ’t flow enough. If you are under 500hp, see our other items for the Walbro GSS341 / GSS342 255 lph pumps.

Suits the following vehicles (along with many others) with minor cradle and wiring mods:

  • BA, BF, FG, FG X Falcon & XR6 Turbo
  • VT, VX, VY, VZ, VE, VF Commodore
  • Subaru WRX
  • Nissan Skyline, Silvia, 180sx
  • and many more.

Specifications

  • Common names: Walbro 535, Walbro 540 High Pressure, Hellcat
  • Flow rate: 540lph @ 13.5v (3 bar)
  • E85 Compatible: Yes
  • Max current draw: 25A (Make sure your wiring can handle this beast!)
  • Body Diameter: 39mm / 50mm
  • Length: 131mm
  • Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
  • Pressure Relief: 112psi (see other items for 112psi high pressure version)
  • Check Valve: No (see other items for 525 Hellcat pump with check valve)

Compatibility

  • Universal Part

Walbro / TI Automotive 535 / 540 lph High Pressure Unleaded & E85 In Tank Fuel Pump. This is the latest and greatest version of the venerable Walbro 460 lph pump, with even higher flow than ever.

Comes complete with installation kit including fuel pump, wire harness, and pickup filter. Genuine hologrammed, locally delivered fuel pump sourced directly from the Australian distributor for Walbro / TI Automotive.

These high flow & pressure fuel pumps feature an impeller with two parallel rows of turbine blades that feed two high-pressure pumping channels. This modern design results in minimal noise and current draw, and efficiency thatÂ’s 20 percent greater than conventional fuel pumps like your standard Bosch 044 or 023.

The Walbro 540lph fuel pump flows enough fuel to support 900hp and is ideal for very high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 or Walbro 460 fuel pump wonÂ’t flow enough. If you are under 500hp, see our other items for the Walbro GSS341 / GSS342 255 lph pumps.

Suits the following vehicles (along with many others) with minor cradle and wiring mods:

  • BA, BF, FG, FG X Falcon & XR6 Turbo
  • VT, VX, VY, VZ, VE, VF Commodore
  • Subaru WRX
  • Nissan Skyline, Silvia, 180sx
  • and many more.
  • Common names: Walbro 535, Walbro 540 High Pressure, Hellcat
  • Flow rate: 540lph @ 13.5v (3 bar)
  • E85 Compatible: Yes
  • Max current draw: 25A (Make sure your wiring can handle this beast!)
  • Body Diameter: 39mm / 50mm
  • Length: 131mm
  • Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
  • Pressure Relief: 112psi (see other items for 112psi high pressure version)
  • Check Valve: No (see other items for 525 Hellcat pump with check valve)
  • Universal Part
