Description

Notes: Important
22mm - suits models with hi ride suspension - 3 point adjustable
Kits Required: 1

Warranty: 3 Year / 60,000km's

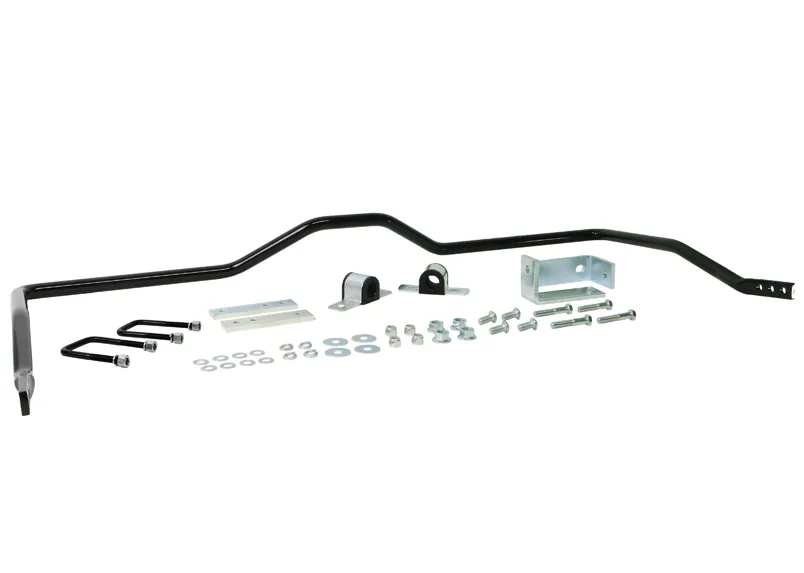

Kit Contents:   1 Sway Bar, 2 Links, 2 Bushings, 2 Saddles, 2 Brackets, 2 U-Bolts, 8 Bolts, 16 Washers, 8 Nuts, Install Guide, Grease

Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 22mm 3 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.

Features
  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Featuring premium anodized alloy materials, providing a long-lasting protective barrier to corrosion and wear but they look great too.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Sway bars are principally designed to reduce body roll or sway while cornering.
  • Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.
  • Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.
  • Sway bar mounts utilise the latest in material formulation technology combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
  • DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.
  • Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
  • By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality alloy and include heavy duty steel ball joints ensuring maximum strength and durability.
  • Manufactured from high quality alloy and utilise the latest in material formulation technology link bushings ensuring maximum strength and durability.
  • Eliminate sway bar preload during installation and allow for on-car length adjustment and rotate to any angular combination for ease of fitment and optimum performance.
  • Heavy duty ball joint ensures optimum durability & steering predictability.
  • This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
  • Install guide included providing detailed instructions on how to install your new purchase .

Specifications

Kit Specifications

Diameter(mm) Diameter(in) Material Adjustment
22mm 7/8" Solid Spring Steel 3 point adjustable




Compatibility

  • 2011-2015 Ford Ranger PX I 2WD
  • 2011-2015 Ford Ranger PX I 4WD
  • 2015-2018 Ford Ranger PX II 2WD
  • 2015-2018 Ford Ranger PX II 4WD
  • 2018-21 Ford Ranger PX III 2WD
  • 2018-21 Ford Ranger PX III 4WD
  • 2011-2020 Mazda BT-50 UP, UR 2WD
  • 2011-2020 Mazda BT-50 UP, UR 4WD
Notes: Important
22mm - suits models with hi ride suspension - 3 point adjustable
Kits Required: 1

Warranty: 3 Year / 60,000km's
Kit Contents:   1 Sway Bar, 2 Links, 2 Bushings, 2 Saddles, 2 Brackets, 2 U-Bolts, 8 Bolts, 16 Washers, 8 Nuts, Install Guide, Grease

Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 22mm 3 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.

Features
  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Featuring premium anodized alloy materials, providing a long-lasting protective barrier to corrosion and wear but they look great too.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Sway bars are principally designed to reduce body roll or sway while cornering.
  • Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.
  • Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.
  • Sway bar mounts utilise the latest in material formulation technology combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
  • DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.
  • Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
  • By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality alloy and include heavy duty steel ball joints ensuring maximum strength and durability.
  • Manufactured from high quality alloy and utilise the latest in material formulation technology link bushings ensuring maximum strength and durability.
  • Eliminate sway bar preload during installation and allow for on-car length adjustment and rotate to any angular combination for ease of fitment and optimum performance.
  • Heavy duty ball joint ensures optimum durability & steering predictability.
  • This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
  • Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications

Diameter(mm) Diameter(in) Material Adjustment
22mm 7/8" Solid Spring Steel 3 point adjustable



  • 2011-2015 Ford Ranger PX I 2WD
  • 2011-2015 Ford Ranger PX I 4WD
  • 2015-2018 Ford Ranger PX II 2WD
  • 2015-2018 Ford Ranger PX II 4WD
  • 2018-21 Ford Ranger PX III 2WD
  • 2018-21 Ford Ranger PX III 4WD
  • 2011-2020 Mazda BT-50 UP, UR 2WD
  • 2011-2020 Mazda BT-50 UP, UR 4WD
