Description

Notes: Important
Positive traction kit - locks subframe to body
Kits Required: 1

Warranty: 3 Year / 60,000Kms

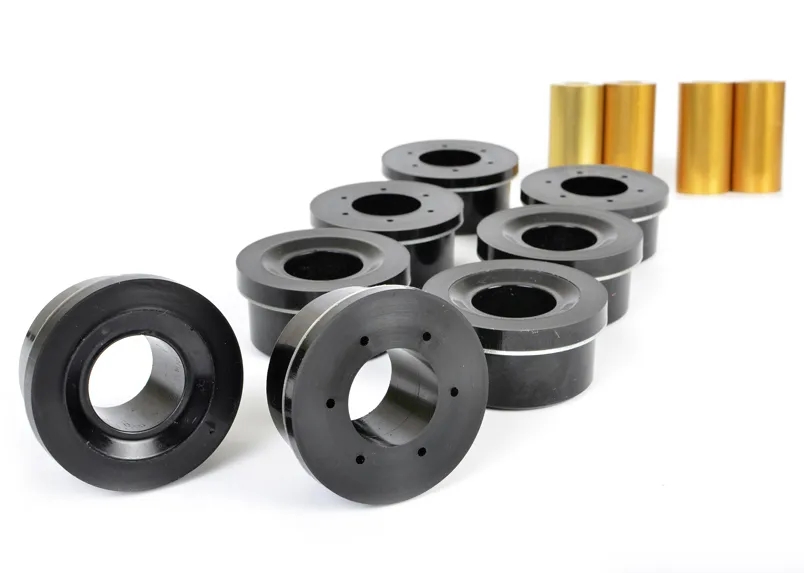

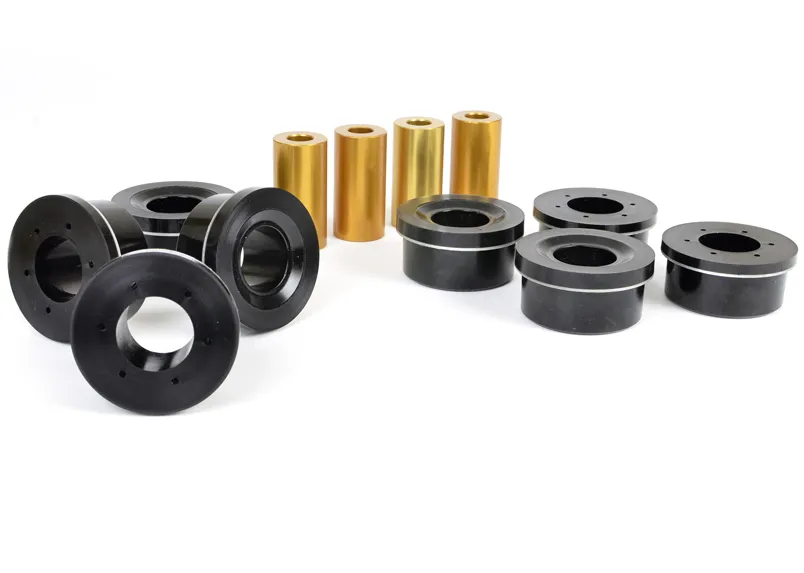

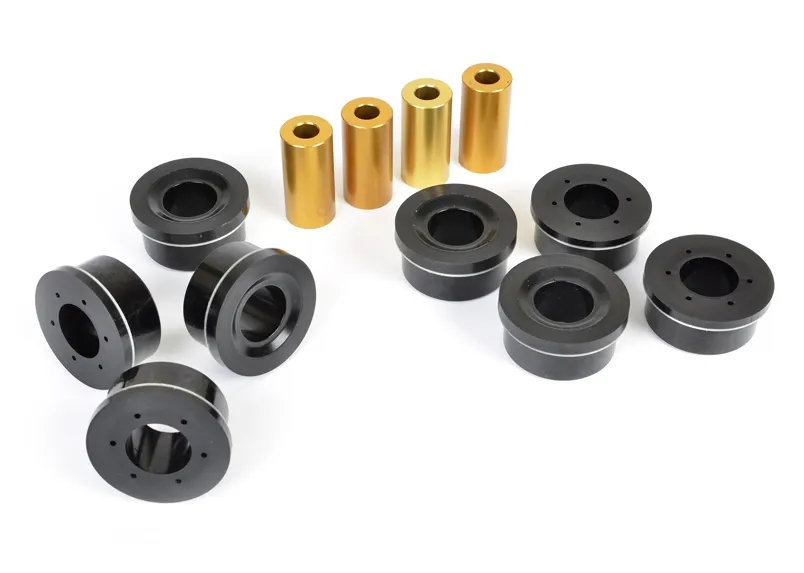

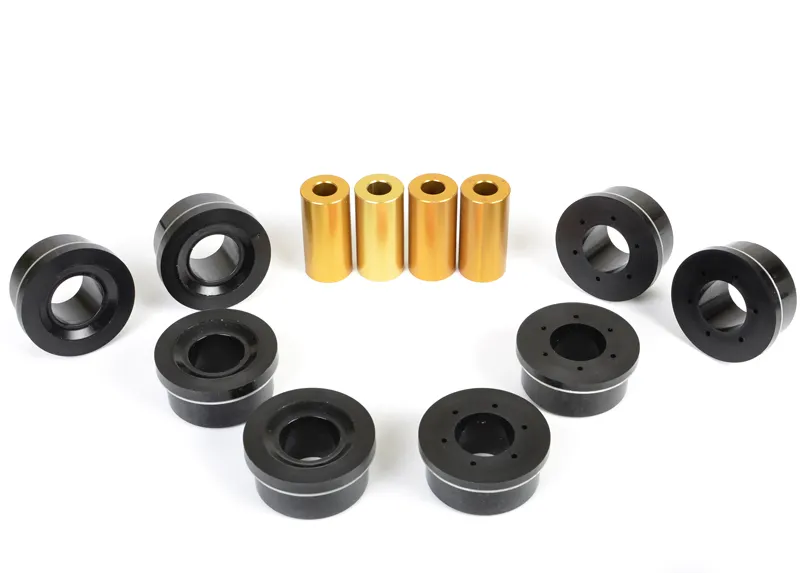

Kit Contents:   8 Bushings, 4 Tubes, Install Guide, Grease
The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Features
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty.


Specifications

Kit Specifications

Bush
Type		 Bush
Qty		 OD
A		 ID
B		 L
C		 FL
D		 FLOD
E		 C/Tube
QTY		 C/Tube
Size
1 4 80 mm 39.6 mm 40.7 mm 9 mm 89.8 mm 4 40x19x82 mm

1 4 80 mm 39.6 mm 44.2 mm 12.7 mm 89.8 mm 4 40x19x82 mm
Download Installation Instructions

Compatibility

  • SUBARU CROSSTREK XV GP7(2012-ON)
  • SUBARU FORESTER SH INCL TURBO(2008-2013)
  • SUBARU IMPREZA GE SEDAN, GH HATCH EXCL WRX AND STI(2007-2011)
  • SUBARU IMPREZA GJ SEDAN, GP HATCH EXCL WRX AND STI(2011-2016)
  • SUBARU IMPREZA WRX GV SEDAN, GR HATCH(2007-2014)
  • SUBARU IMPREZA WRX STI GV SEDAN, GR HATCH(2007-2014)
  • SUBARU XV GP7(2012-ON)
Notes: Important
Positive traction kit - locks subframe to body
Kits Required: 1

Warranty: 3 Year / 60,000Kms
Kit Contents:   8 Bushings, 4 Tubes, Install Guide, Grease
The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Features
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty.

Kit Specifications

Bush
Type		 Bush
Qty		 OD
A		 ID
B		 L
C		 FL
D		 FLOD
E		 C/Tube
QTY		 C/Tube
Size
1 4 80 mm 39.6 mm 40.7 mm 9 mm 89.8 mm 4 40x19x82 mm

1 4 80 mm 39.6 mm 44.2 mm 12.7 mm 89.8 mm 4 40x19x82 mm
  • SUBARU CROSSTREK XV GP7(2012-ON)
  • SUBARU FORESTER SH INCL TURBO(2008-2013)
  • SUBARU IMPREZA GE SEDAN, GH HATCH EXCL WRX AND STI(2007-2011)
  • SUBARU IMPREZA GJ SEDAN, GP HATCH EXCL WRX AND STI(2011-2016)
  • SUBARU IMPREZA WRX GV SEDAN, GR HATCH(2007-2014)
  • SUBARU IMPREZA WRX STI GV SEDAN, GR HATCH(2007-2014)
  • SUBARU XV GP7(2012-ON)
