Description

Notes: Important
Adjustable extra heavy duty
Kits Required: 1

Warranty: 3 Year / 60,000Kms
Kit Contents:   2 Links, Install Guide

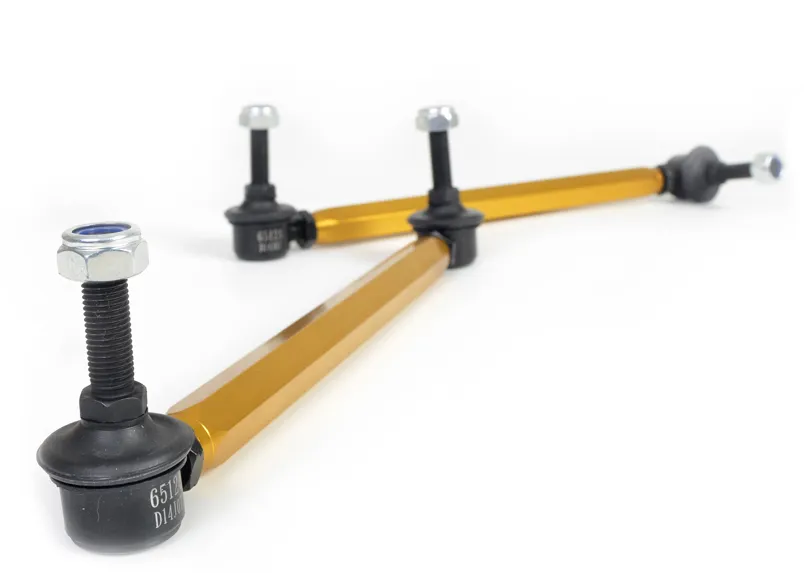

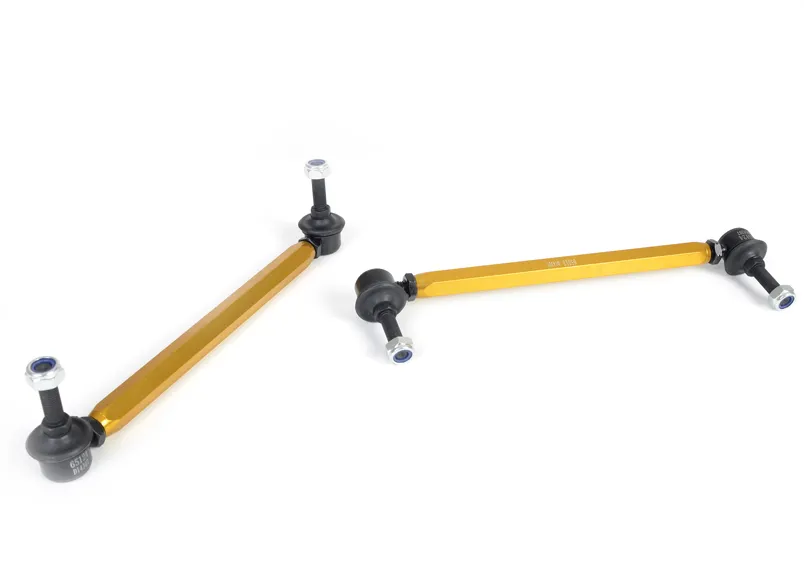

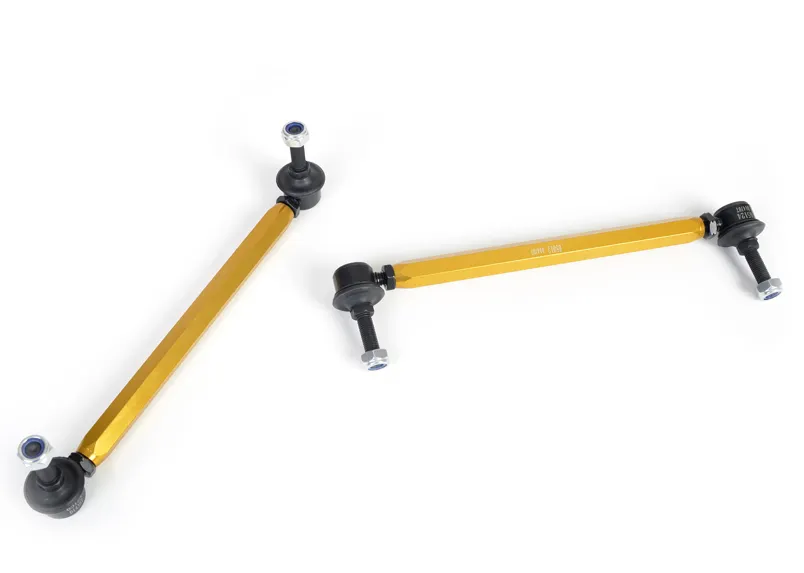

Not many enthusiasts are aware that OE and more importantly aftermarket sway bar effectiveness can be hindered by worn or inadequate mounts, drop links and lateral stoppers. Whiteline adjustable sway bar links are engineered to be up to the task with top spec, light weight componentry combined with a window of adjustability, eliminating sway bar preload on installation but most importantly ensuring the maximum output of the sway bar for improved grip and better handling.
Features
  • By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability.
  • Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm centre to centre.
  • Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
  • Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty.

Specifications

Kit Specifications



Link Type Adjustable On Car Adjustable Adjustment Bolt Diameter Overall Length Configuration
Ball Yes Yes 25mm 10mm 270mm-295mm Horizontal

Download Installation Instructions

Compatibility

  • AUDI A1 MK1 (TYP 8X)(2010-ON)
  • AUDI A2 MK1 (TYP 8Z)(1999-2005)
  • AUDI S1 MK1 (TYP 8X)(2015-ON)
  • BMW 3 SERIES E46(2001-2005)
  • BMW M3 E46(2000-2006)
  • BMW Z4M E85, E86(2003-2008)
  • BMW Z4 E85, E86(2003-2008)
  • CHEVROLET CAPTIVA C100, C140(2006-2018)
  • CHEVROLET SS EK69(2013-2017)
  • CHRYSLER 200 JS(2011-ON)
  • CHRYSLER SEBRING JS(2007-2010)
  • CITROEN C-CROSSER(2007-2012)
  • CITROEN C4 AIRCROSS(2012-2017)
  • DODGE AVENGER JS(2007-2014)
  • DODGE CALIBER PM(2006-2012)
  • DODGE JOURNEY JC(2008-ON)
  • FIAT FREEMONT JC, JF(2011-ON)
  • FORD FOCUS LW, LZ ST(2012-2018)
  • FORD LASER KN, KQ(1999-2002)
  • HOLDEN CAPRICE WN(2013-2018)
  • HOLDEN CAPTIVA CG(2006-2018)
  • HOLDEN COMMODORE VF(2013-2017)
  • HSV CLUBSPORT GEN F(2013-2017)
  • HSV GRANGE GEN F(2013-2016)
  • HSV GTS GEN F(2013-2017)
  • HSV MALOO GEN F(2013-2017)
  • HSV SENATOR GEN F(2013-2017)
  • HYUNDAI ACCENT RB(2010-2018)
  • JEEP COMPASS MK49(2006-ON)
  • JEEP PATRIOT MK74(2007-2017)
  • LAND ROVER FREELANDER 2 LF(2006-2014)
  • LAND ROVER LR 2 LF(2006-2014)
  • LAND ROVER RANGE ROVER EVOQUE LV(2011-2018)
  • LEXUS ES300 VCV10R, MCV20R(1992-2001)
  • MAZDA 323 BJ(1998-2003)
  • MAZDA FAMILIA BJ(1998-2003)
  • MAZDA PREMACY CP(1999-2005)
  • MITSUBISHI ASX XA, XB, XC(2010-ON)
  • MITSUBISHI LANCER CJ FWD(2008-ON)
  • MITSUBISHI LANCER CJ RALLIART AWD(2008-ON)
  • MITSUBISHI OUTLANDER ZG, ZH(2006-2012)
  • MITSUBISHI OUTLANDER ZJ, ZK(2012-ON)
  • OPEL ANTARA CG(2006-ON)
  • OPEL VIVARO FL(2001-2014)
  • PEUGEOT 4007 GP(2007-2013)
  • PEUGEOT 4008(2012-2017)
  • PROTON INSPIRA(2010-ON)
  • RENAULT MEGANE II X84(2003-2010)
  • RENAULT MEGANE III X32, B95, E95, K95, X95(2010-2016)
  • RENAULT TRAFIC FL(2001-2014)
  • SATURN VUE 2ND GEN(2008-2010)
  • SEAT CORDOBA MK2 (TYP 6L)(2002-2009)
  • SEAT IBIZA MK3 (TYP 6L)(2002-2008)
  • SEAT IBIZA MK4 (TYP 6J)(2009-2017)
  • SKODA FABIA MK1 (TYP 6Y)(1999-2007)
  • SKODA FABIA MK2 (TYP 5J)(2007-2014)
  • SKODA FABIA MK3 (TYP NJ)(2014-ON)
  • TOYOTA AURION GSV40R(2006-2012)
  • TOYOTA AURION GSV50R(2012-2017)
  • TOYOTA AVALON MCX10R(2000-2006)
  • TOYOTA CAMRY SXV10, VCV10(1995-1998)
  • TOYOTA CAMRY SXV20, MCV20(1997-2002)
  • TOYOTA CAMRY ACV30 USDM(2002-2006)
  • TOYOTA CAMRY ACV36, MCV36(2002-2006)
  • TOYOTA CAMRY ACV40, AHV40(2006-2012)
  • TOYOTA CELICA ZZT231(1999-2006)
  • TOYOTA RAV 4 ACA20, 21, 22, 23(2000-2005)
  • TOYOTA VIENTA VCV10(1995-1998)
  • TOYOTA VIENTA MCV20R(1997-2002)
  • VAUXHALL ANTARA J26, H26(2006-2015)
  • VAUXHALL VIVARO J7(2001-2014)
  • VAUXHALL VXR8 GEN F(2013-2017)
  • VAUXHALL VXR MALOO GEN F(2013-2017)
  • VOLKSWAGEN FOX MK1 (TYP 5Z)(2005-2011)
  • VOLKSWAGEN POLO MK4 (TYP 9N AND 9N3)(2002-2009)
  • VOLKSWAGEN POLO MK5 (TYP 6R AND 6C)(2009-2017)
  • VOLKSWAGEN SAVEIRO G5 MK3(2009-ON)
  • VOLKSWAGEN VOYAGE G5(2009-ON)
Notes: Important
Adjustable extra heavy duty
Kits Required: 1

Warranty: 3 Year / 60,000Kms
Kit Contents:   2 Links, Install Guide
Not many enthusiasts are aware that OE and more importantly aftermarket sway bar effectiveness can be hindered by worn or inadequate mounts, drop links and lateral stoppers. Whiteline adjustable sway bar links are engineered to be up to the task with top spec, light weight componentry combined with a window of adjustability, eliminating sway bar preload on installation but most importantly ensuring the maximum output of the sway bar for improved grip and better handling.
Features
  • By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability.
  • Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm centre to centre.
  • Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
  • Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty.

Kit Specifications



Link Type Adjustable On Car Adjustable Adjustment Bolt Diameter Overall Length Configuration
Ball Yes Yes 25mm 10mm 270mm-295mm Horizontal

  • AUDI A1 MK1 (TYP 8X)(2010-ON)
  • AUDI A2 MK1 (TYP 8Z)(1999-2005)
  • AUDI S1 MK1 (TYP 8X)(2015-ON)
  • BMW 3 SERIES E46(2001-2005)
  • BMW M3 E46(2000-2006)
  • BMW Z4M E85, E86(2003-2008)
  • BMW Z4 E85, E86(2003-2008)
  • CHEVROLET CAPTIVA C100, C140(2006-2018)
  • CHEVROLET SS EK69(2013-2017)
  • CHRYSLER 200 JS(2011-ON)
  • CHRYSLER SEBRING JS(2007-2010)
  • CITROEN C-CROSSER(2007-2012)
  • CITROEN C4 AIRCROSS(2012-2017)
  • DODGE AVENGER JS(2007-2014)
  • DODGE CALIBER PM(2006-2012)
  • DODGE JOURNEY JC(2008-ON)
  • FIAT FREEMONT JC, JF(2011-ON)
  • FORD FOCUS LW, LZ ST(2012-2018)
  • FORD LASER KN, KQ(1999-2002)
  • HOLDEN CAPRICE WN(2013-2018)
  • HOLDEN CAPTIVA CG(2006-2018)
  • HOLDEN COMMODORE VF(2013-2017)
  • HSV CLUBSPORT GEN F(2013-2017)
  • HSV GRANGE GEN F(2013-2016)
  • HSV GTS GEN F(2013-2017)
  • HSV MALOO GEN F(2013-2017)
  • HSV SENATOR GEN F(2013-2017)
  • HYUNDAI ACCENT RB(2010-2018)
  • JEEP COMPASS MK49(2006-ON)
  • JEEP PATRIOT MK74(2007-2017)
  • LAND ROVER FREELANDER 2 LF(2006-2014)
  • LAND ROVER LR 2 LF(2006-2014)
  • LAND ROVER RANGE ROVER EVOQUE LV(2011-2018)
  • LEXUS ES300 VCV10R, MCV20R(1992-2001)
  • MAZDA 323 BJ(1998-2003)
  • MAZDA FAMILIA BJ(1998-2003)
  • MAZDA PREMACY CP(1999-2005)
  • MITSUBISHI ASX XA, XB, XC(2010-ON)
  • MITSUBISHI LANCER CJ FWD(2008-ON)
  • MITSUBISHI LANCER CJ RALLIART AWD(2008-ON)
  • MITSUBISHI OUTLANDER ZG, ZH(2006-2012)
  • MITSUBISHI OUTLANDER ZJ, ZK(2012-ON)
  • OPEL ANTARA CG(2006-ON)
  • OPEL VIVARO FL(2001-2014)
  • PEUGEOT 4007 GP(2007-2013)
  • PEUGEOT 4008(2012-2017)
  • PROTON INSPIRA(2010-ON)
  • RENAULT MEGANE II X84(2003-2010)
  • RENAULT MEGANE III X32, B95, E95, K95, X95(2010-2016)
  • RENAULT TRAFIC FL(2001-2014)
  • SATURN VUE 2ND GEN(2008-2010)
  • SEAT CORDOBA MK2 (TYP 6L)(2002-2009)
  • SEAT IBIZA MK3 (TYP 6L)(2002-2008)
  • SEAT IBIZA MK4 (TYP 6J)(2009-2017)
  • SKODA FABIA MK1 (TYP 6Y)(1999-2007)
  • SKODA FABIA MK2 (TYP 5J)(2007-2014)
  • SKODA FABIA MK3 (TYP NJ)(2014-ON)
  • TOYOTA AURION GSV40R(2006-2012)
  • TOYOTA AURION GSV50R(2012-2017)
  • TOYOTA AVALON MCX10R(2000-2006)
  • TOYOTA CAMRY SXV10, VCV10(1995-1998)
  • TOYOTA CAMRY SXV20, MCV20(1997-2002)
  • TOYOTA CAMRY ACV30 USDM(2002-2006)
  • TOYOTA CAMRY ACV36, MCV36(2002-2006)
  • TOYOTA CAMRY ACV40, AHV40(2006-2012)
  • TOYOTA CELICA ZZT231(1999-2006)
  • TOYOTA RAV 4 ACA20, 21, 22, 23(2000-2005)
  • TOYOTA VIENTA VCV10(1995-1998)
  • TOYOTA VIENTA MCV20R(1997-2002)
  • VAUXHALL ANTARA J26, H26(2006-2015)
  • VAUXHALL VIVARO J7(2001-2014)
  • VAUXHALL VXR8 GEN F(2013-2017)
  • VAUXHALL VXR MALOO GEN F(2013-2017)
  • VOLKSWAGEN FOX MK1 (TYP 5Z)(2005-2011)
  • VOLKSWAGEN POLO MK4 (TYP 9N AND 9N3)(2002-2009)
  • VOLKSWAGEN POLO MK5 (TYP 6R AND 6C)(2009-2017)
  • VOLKSWAGEN SAVEIRO G5 MK3(2009-ON)
  • VOLKSWAGEN VOYAGE G5(2009-ON)
