Description

Kits Required: 1

Warranty: Lifetime

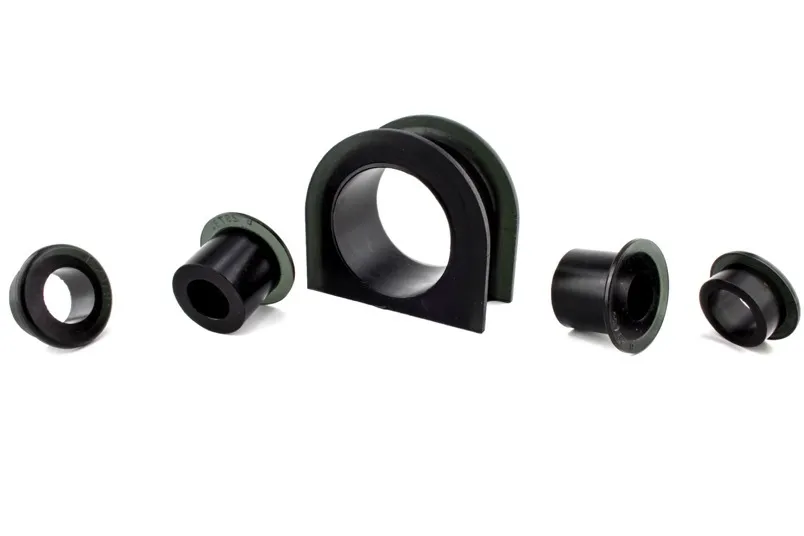

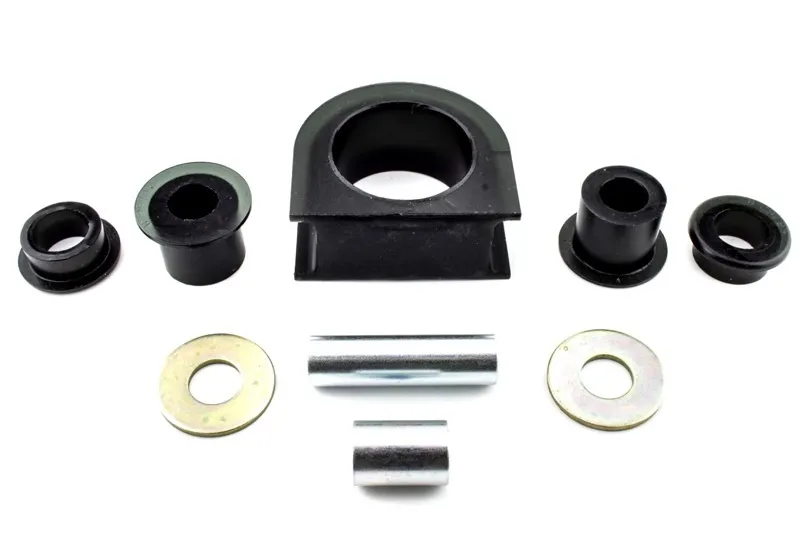

Kit Contents:   5 Bushings, 2 Tubes, Install Guide, Grease
Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loadings on the steering systems of modern cars. Add to that engine bat contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

Specifications

Kit Specifications

Bush
Type
Bush
Qty
OD
A
ID
B
L
C
FL
D
FLOD
E
C/Tube
QTY
C/Tube
Size
1 2 33.7 mm 19.1 mm 31.3 mm 2.3 mm 45.6 mm 1 / 1 22.2x16.2x65 / 22.2x17x31 mm

1 2 32.15 mm 22.4 mm 16.5 mm 3.8 mm 41.4 mm 1 / 1 22.2x16.2x65 / 22.2x17x31 mm

4 1 69.8 mm 55.5 mm 38.2 mm 4 mm 79 mm 1 / 1 22.2x16.2x65 / 22.2x17x31 mm


Compatibility

  • TOYOTA HILUX 4 RUNNER KDN185, KZN185, RZN185, VZN180, VZN185(1995-2002)
  • TOYOTA LAND CRUISER PRADO RZJ95, VZJ95, KZJ95(1996-2003)
  • TOYOTA TACOMA RZN, VZN(1995-2005)
Kits Required: 1

Warranty: Lifetime
Kit Contents:   5 Bushings, 2 Tubes, Install Guide, Grease
Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loadings on the steering systems of modern cars. Add to that engine bat contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.
Kit Specifications

Bush
Type
Bush
Qty
OD
A
ID
B
L
C
FL
D
FLOD
E
C/Tube
QTY
C/Tube
Size
1 2 33.7 mm 19.1 mm 31.3 mm 2.3 mm 45.6 mm 1 / 1 22.2x16.2x65 / 22.2x17x31 mm

1 2 32.15 mm 22.4 mm 16.5 mm 3.8 mm 41.4 mm 1 / 1 22.2x16.2x65 / 22.2x17x31 mm

4 1 69.8 mm 55.5 mm 38.2 mm 4 mm 79 mm 1 / 1 22.2x16.2x65 / 22.2x17x31 mm

  • TOYOTA HILUX 4 RUNNER KDN185, KZN185, RZN185, VZN180, VZN185(1995-2002)
  • TOYOTA LAND CRUISER PRADO RZJ95, VZJ95, KZJ95(1996-2003)
  • TOYOTA TACOMA RZN, VZN(1995-2005)
