Description

Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loadings on the steering systems of modern cars. Add to that engine bat contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a limited lifetime warranty including parts and labour.

Specifications

Bush Type 4 1
Bush Qty
OD (A) 67.3 mm 26 mm
ID (B) 50.8 mm 22.2 mm
L (C) 36 mm 22 mm
FL (D) 3 mm 2.2 mm
FLOD (E) 75.3 mm 34 mm
C/Tube QTY 1 1
C/Tube Size 22.2x12.2x45 mm 22.2x12.2x45 mm
Similar Bushing Size







Bush Image



Bush Image

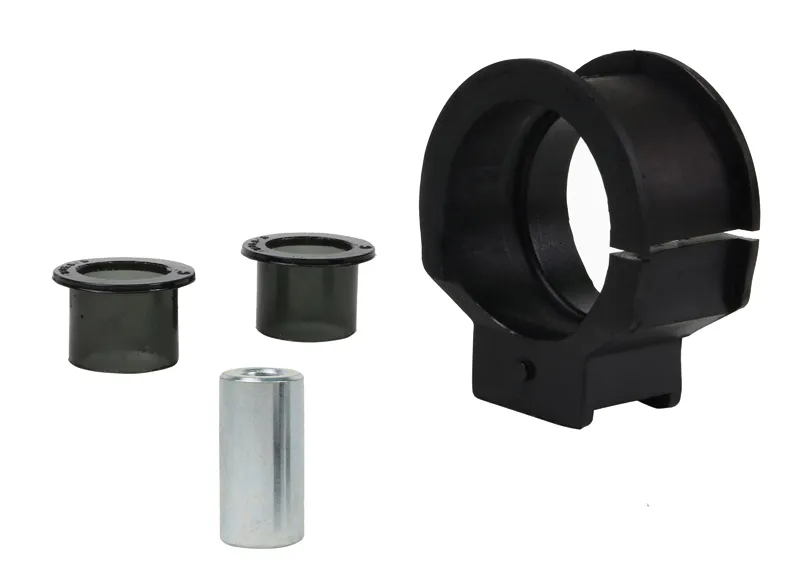

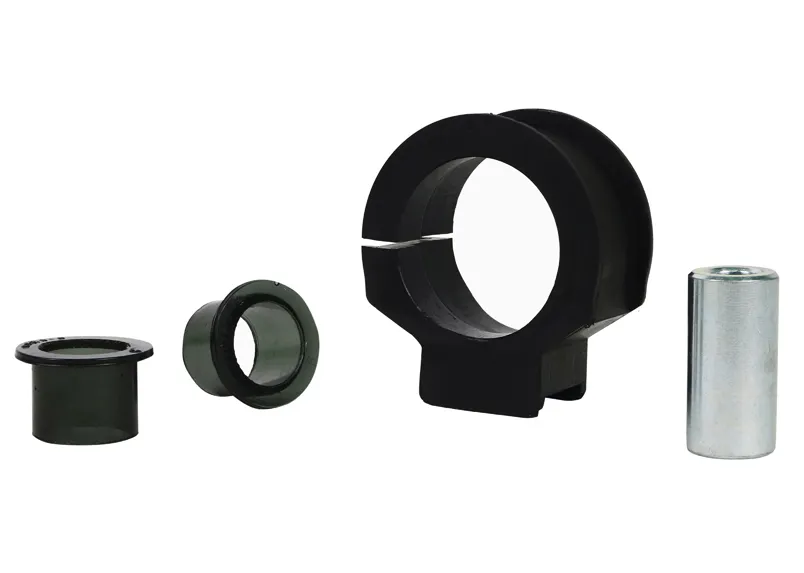

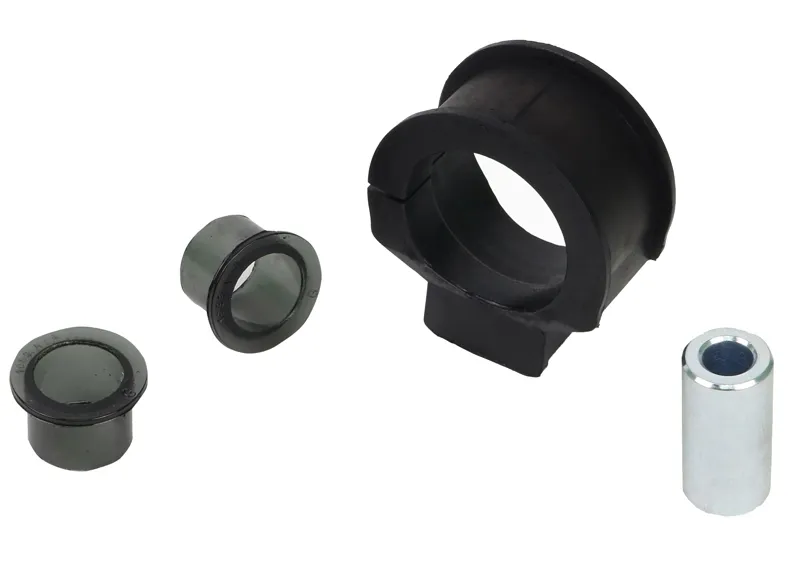

What's Included

  • 3 Bushings
  • 1 Tubes
  • Grease

Compatibility

  • TOYOTA RAV 4 1994-2000 - RAV 4 SXA10, 11, 16

Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loadings on the steering systems of modern cars. Add to that engine bat contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a limited lifetime warranty including parts and labour.
Bush Type 4 1
Bush Qty
OD (A) 67.3 mm 26 mm
ID (B) 50.8 mm 22.2 mm
L (C) 36 mm 22 mm
FL (D) 3 mm 2.2 mm
FLOD (E) 75.3 mm 34 mm
C/Tube QTY 1 1
C/Tube Size 22.2x12.2x45 mm 22.2x12.2x45 mm
Similar Bushing Size







Bush Image



Bush Image

  • 3 Bushings
  • 1 Tubes
  • Grease
  • TOYOTA RAV 4 1994-2000 - RAV 4 SXA10, 11, 16
