Description

Notes: Standard Alignment Kit

Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Specially bonded design for optimised strength typically required in high load bearing applications.
  • Precisely placed dampening voids further reduces harshness from sudden road inputs.
  • Articulation voids deliver necessary suspension articulation and/or compression under loads.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a limited lifetime warranty including parts and labour.
  • Install guide included providing detailed instructions on how to install your new purchase .

Specifications

Bush Type16
Bush Qty2
OD (A)72.2 mm
ID (B)32 mm
L (C)84.2 mm
FL (D)21.4 mm
FLOD (E)50 mm
C/Tube QTY2
C/Tube Size32x16.3x84.4 mm
Similar Bushing Size


Bush Image

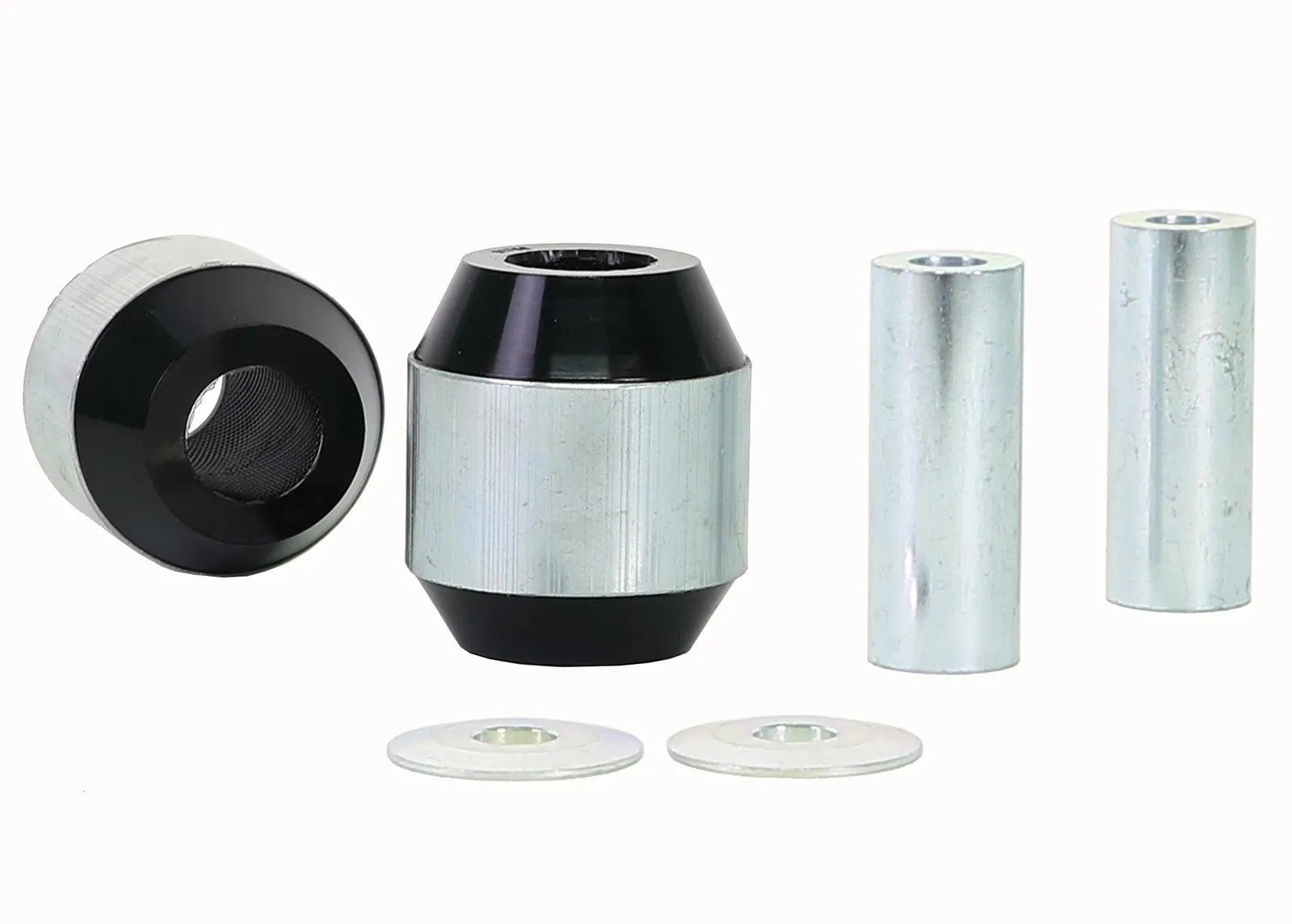

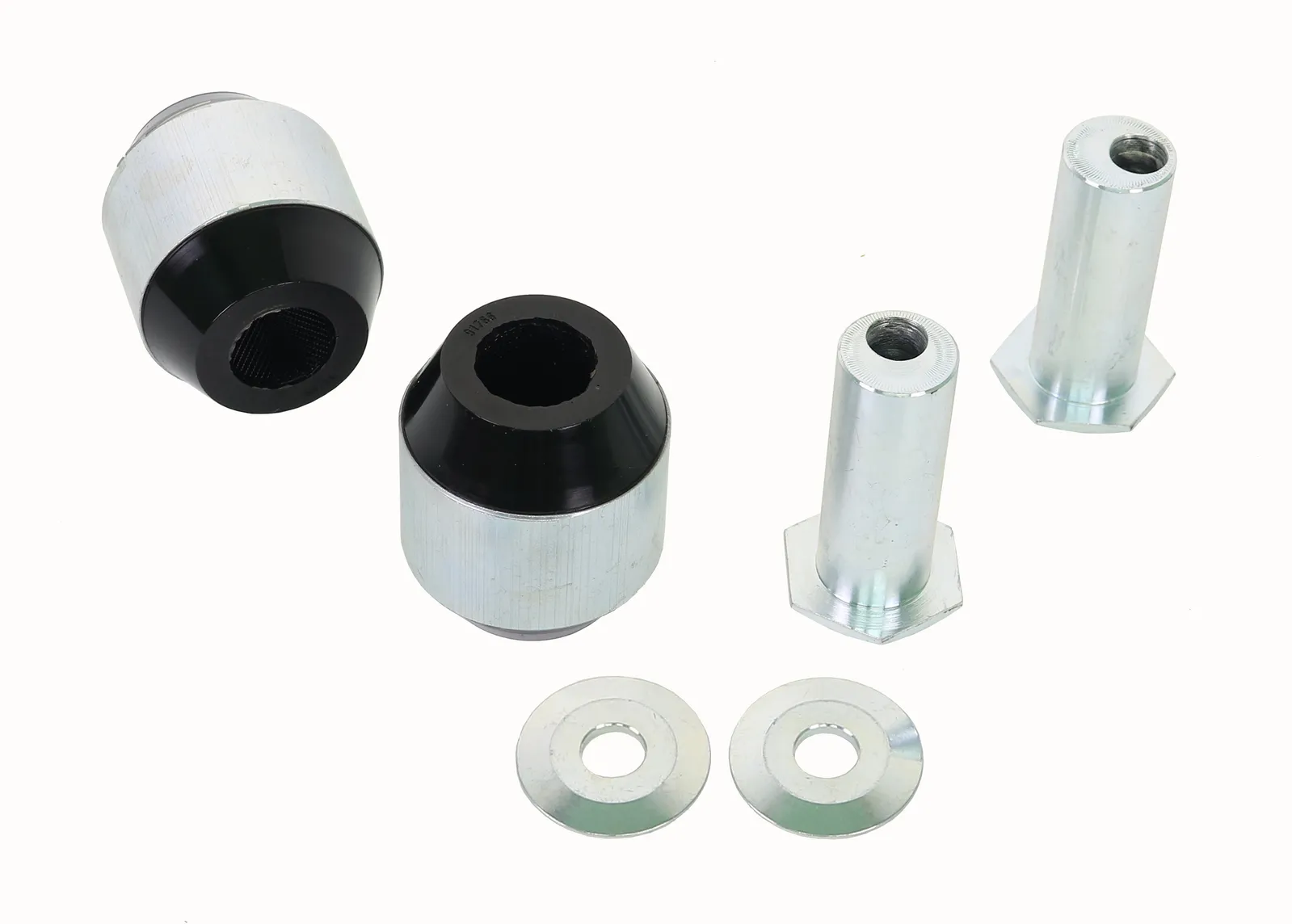

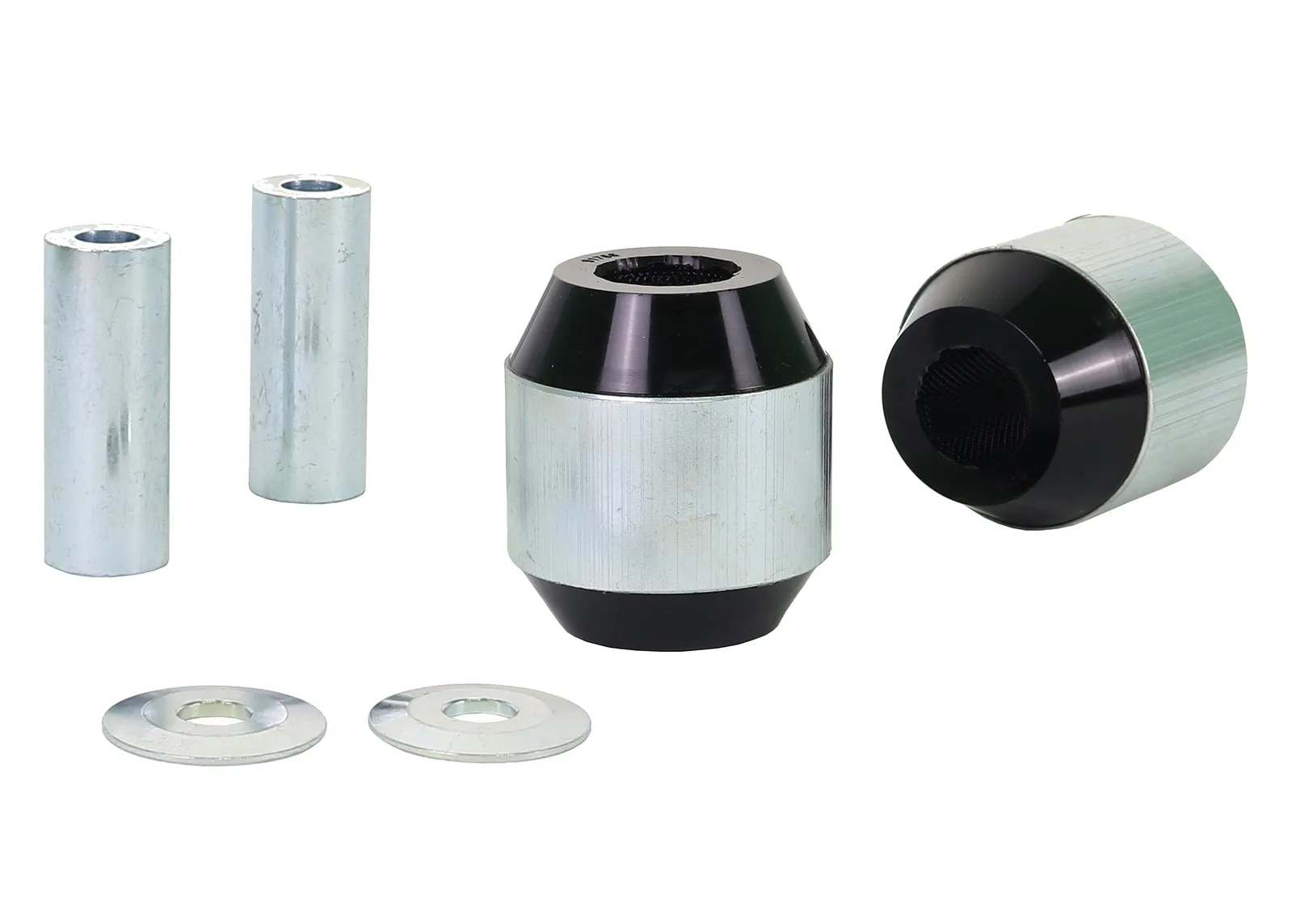

What's Included

  • 2 Shell Bushings
  • 2 Tubes
  • 2 Washers
  • Install Guide
  • Grease

Compatibility

  • FORD MUSTANG 2015-ON - MUSTANG S550 FM, FN
  • FORD MUSTANG 2015-ON - MUSTANG S550

Notes: Standard Alignment Kit

Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Specially bonded design for optimised strength typically required in high load bearing applications.
  • Precisely placed dampening voids further reduces harshness from sudden road inputs.
  • Articulation voids deliver necessary suspension articulation and/or compression under loads.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a limited lifetime warranty including parts and labour.
  • Install guide included providing detailed instructions on how to install your new purchase .
Bush Type16
Bush Qty2
OD (A)72.2 mm
ID (B)32 mm
L (C)84.2 mm
FL (D)21.4 mm
FLOD (E)50 mm
C/Tube QTY2
C/Tube Size32x16.3x84.4 mm
Similar Bushing Size


Bush Image

  • 2 Shell Bushings
  • 2 Tubes
  • 2 Washers
  • Install Guide
  • Grease
  • FORD MUSTANG 2015-ON - MUSTANG S550 FM, FN
  • FORD MUSTANG 2015-ON - MUSTANG S550
