Description

Notes: Important
Single/2 bolt design - lowered vehicles - offers 14-16mm toe and +/- 2deg camber adjustment
Kits Required: 1

Warranty: Lifetime

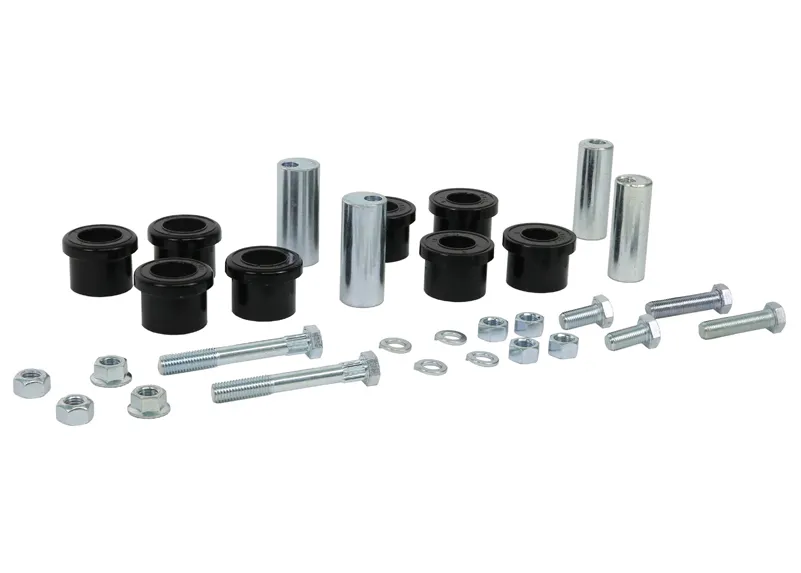

Kit Contents:   8 Bushings, 4 Tubes, 6 Bolts, 6 Washers, 4 Nuts, Install Guide, Grease
IRS Commodores suffer from uneven rear tyre wear especially when lowered or when towing. The Whiteline 2 point camber / toe correction kits improve rear wheel alignment settings and saves you on replacing costly tyres
Features
  • Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
  • Featuring anti geometry that works to aid traction by allowing the wheel to track the ground more precisely resulting in superior traction under power including cornering and dramatically reducing understeer and front wheel spin.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a limited lifetime warranty.


Specifications

Kit Specifications

Bush
Type		 Bush
Qty		 OD
AA/AB		 ID
B		 L
C		 FL
D		 FL
OD		 C/Tube
QTY		 C/Tube
Size
1 4 41.4 mm 29.5 mm 36.5 mm 9.5 mm   2 29.5x11.9x71 mm

1 4 41.6 mm 24.7 mm 34.1 mm 8.5 mm 49.8 mm 2 25.4x12.5x70.8 mm


Alignment Type Adjustment Type On Car Adjustable
Camber/ Toe Eccentric Yes


Compatibility

  • CHEVROLET LUMINA VT, VX(1997-2002)
  • HOLDEN CALIBRA YE(1991-1998)
  • HOLDEN CAPRICE VQ(1990-1994)
  • HOLDEN CAPRICE VR, VS(1994-1999)
  • HOLDEN CAPRICE WH(1999-2003)
  • HOLDEN COMMODORE VN, VP, VG(1988-1993)
  • HOLDEN COMMODORE VR, VS(1993-1997)
  • HOLDEN COMMODORE VT, VX, VU(1997-2002)
  • HOLDEN STATESMAN VQ(1990-1994)
  • HOLDEN STATESMAN VR, VS(1994-1999)
  • HOLDEN STATESMAN WH(1999-2003)
  • HSV CAPRICE VR, VS(1994-1999)
  • HSV CLUBSPORT SV VP(1993-1994)
  • HSV CLUBSPORT VR, VS(1993-1997)
  • HSV CLUBSPORT VT, VX(1997-2002)
  • HSV GRANGE VS(1996-1998)
  • HSV GRANGE WH(1999-2003)
  • HSV GTS VP(1992-1992)
  • HSV GTS VR, VS(1994-1997)
  • HSV GTS VT(1997-2000)
  • HSV GTS VX(2000-2001)
  • HSV MALOO VU(2001-2002)
  • HSV MANTA VS(1995-1997)
  • HSV MANTA VT(1997-1999)
  • HSV SENATOR VP(1992-1993)
  • HSV SENATOR VR, VS(1993-1997)
  • HSV SENATOR VT, VX(1997-2002)
  • HSV STATESMAN VP, VQ, SV90, SV91, SV93(1990-1994)
  • HSV STATESMAN VR, VS(1994-1999)
  • HSV SV99 VT(1999-2000)
  • HSV SV300 VX(2001-2001)
  • HSV XU6 VT, VX(1998-2002)
  • HSV XU8 VT(1999-1999)
  • OPEL CALIBRA YE, YE95(1991-1998)
  • OPEL VECTRA A(1988-1995)
  • TOYOTA LEXCEN VN, VP(1988-1993)
  • TOYOTA LEXCEN VR, VS(1993-1997)
  • VAUXHALL CALIBRA GM2900(1990-1997)
  • VAUXHALL CAVALIER MK3(1988-1995)
  • VAUXHALL MONARO VXR(2004-2007)
Notes: Important
Single/2 bolt design - lowered vehicles - offers 14-16mm toe and +/- 2deg camber adjustment
Kits Required: 1

Warranty: Lifetime
Kit Contents:   8 Bushings, 4 Tubes, 6 Bolts, 6 Washers, 4 Nuts, Install Guide, Grease
IRS Commodores suffer from uneven rear tyre wear especially when lowered or when towing. The Whiteline 2 point camber / toe correction kits improve rear wheel alignment settings and saves you on replacing costly tyres
Features
  • Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
  • Featuring anti geometry that works to aid traction by allowing the wheel to track the ground more precisely resulting in superior traction under power including cornering and dramatically reducing understeer and front wheel spin.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a limited lifetime warranty.

Kit Specifications

Bush
Type		 Bush
Qty		 OD
AA/AB		 ID
B		 L
C		 FL
D		 FL
OD		 C/Tube
QTY		 C/Tube
Size
1 4 41.4 mm 29.5 mm 36.5 mm 9.5 mm   2 29.5x11.9x71 mm

1 4 41.6 mm 24.7 mm 34.1 mm 8.5 mm 49.8 mm 2 25.4x12.5x70.8 mm


Alignment Type Adjustment Type On Car Adjustable
Camber/ Toe Eccentric Yes

  • CHEVROLET LUMINA VT, VX(1997-2002)
  • HOLDEN CALIBRA YE(1991-1998)
  • HOLDEN CAPRICE VQ(1990-1994)
  • HOLDEN CAPRICE VR, VS(1994-1999)
  • HOLDEN CAPRICE WH(1999-2003)
  • HOLDEN COMMODORE VN, VP, VG(1988-1993)
  • HOLDEN COMMODORE VR, VS(1993-1997)
  • HOLDEN COMMODORE VT, VX, VU(1997-2002)
  • HOLDEN STATESMAN VQ(1990-1994)
  • HOLDEN STATESMAN VR, VS(1994-1999)
  • HOLDEN STATESMAN WH(1999-2003)
  • HSV CAPRICE VR, VS(1994-1999)
  • HSV CLUBSPORT SV VP(1993-1994)
  • HSV CLUBSPORT VR, VS(1993-1997)
  • HSV CLUBSPORT VT, VX(1997-2002)
  • HSV GRANGE VS(1996-1998)
  • HSV GRANGE WH(1999-2003)
  • HSV GTS VP(1992-1992)
  • HSV GTS VR, VS(1994-1997)
  • HSV GTS VT(1997-2000)
  • HSV GTS VX(2000-2001)
  • HSV MALOO VU(2001-2002)
  • HSV MANTA VS(1995-1997)
  • HSV MANTA VT(1997-1999)
  • HSV SENATOR VP(1992-1993)
  • HSV SENATOR VR, VS(1993-1997)
  • HSV SENATOR VT, VX(1997-2002)
  • HSV STATESMAN VP, VQ, SV90, SV91, SV93(1990-1994)
  • HSV STATESMAN VR, VS(1994-1999)
  • HSV SV99 VT(1999-2000)
  • HSV SV300 VX(2001-2001)
  • HSV XU6 VT, VX(1998-2002)
  • HSV XU8 VT(1999-1999)
  • OPEL CALIBRA YE, YE95(1991-1998)
  • OPEL VECTRA A(1988-1995)
  • TOYOTA LEXCEN VN, VP(1988-1993)
  • TOYOTA LEXCEN VR, VS(1993-1997)
  • VAUXHALL CALIBRA GM2900(1990-1997)
  • VAUXHALL CAVALIER MK3(1988-1995)
  • VAUXHALL MONARO VXR(2004-2007)
