Description

Notes: Important
Adds +0.5deg caster
Kits Required: 1

Warranty: Lifetime

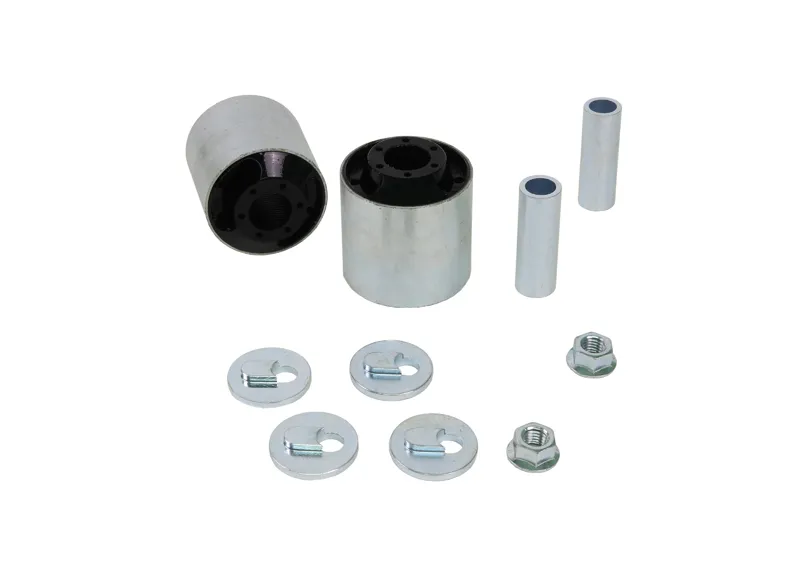

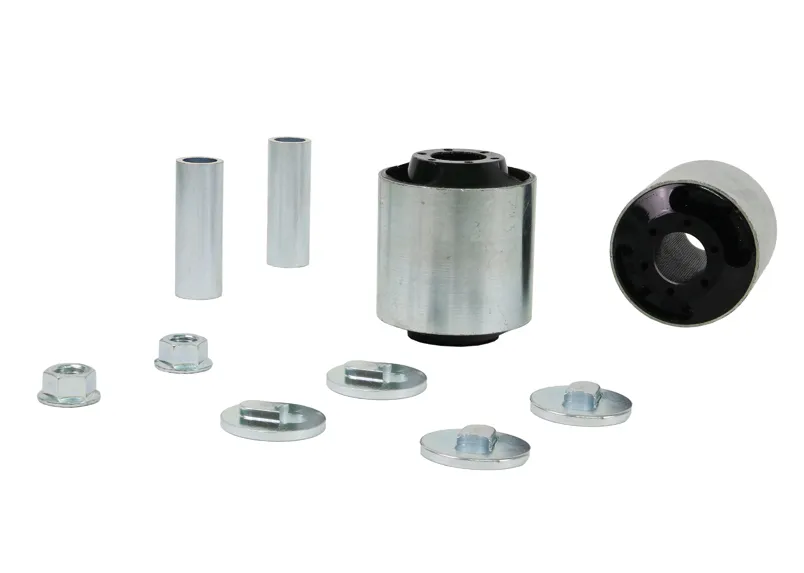

Kit Contents:   2 Shell Bushings, 2 Tubes, 4 Washers, 2 Nuts, Install Guide, Grease
Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability through increased static caster and dynamic negative camber gain. In addition, synthetic elastomer bushings provide improved steering feedback and braking performance.
Features
  • Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • Specially bonded design for optimised strength typically required in high load bearing applications.
  • Precisely placed dampening voids further reduces harshness from sudden road inputs.
  • Articulation voids deliver necessary suspension articulation and/or compression under loads.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a limited lifetime warranty.


Specifications

Kit Specifications

Bush
Type		 Bush
Qty		 OD
AA/AB		 ID
B		 L
C		 FL
D		 FL
OD		 C/Tube
QTY		 C/Tube
Size
16 2 69.8 mm 25.3 mm 81.5 mm 8.8 mm 41 mm 2 27x12.2x80 mm


Alignment Type Adjustment Type On Car Adjustable
Caster Offset No


Compatibility

  • CHEVROLET SS EK69(2013-2017)
  • HOLDEN CAPRICE WM(2006-2013)
  • HOLDEN CAPRICE WN(2013-2018)
  • HOLDEN COMMODORE VE(2006-2013)
  • HOLDEN COMMODORE VF(2013-2017)
  • HOLDEN STATESMAN WM(2006-2013)
  • HSV CLUBSPORT E SERIES(2006-2013)
  • HSV CLUBSPORT GEN F(2013-2017)
  • HSV GRANGE WM(2006-2013)
  • HSV GRANGE GEN F(2013-2016)
  • HSV GTS E SERIES(2006-2013)
  • HSV GTS GEN F(2013-2017)
  • HSV MALOO E SERIES(2007-2013)
  • HSV MALOO GEN F(2013-2017)
  • HSV SENATOR E SERIES(2006-2013)
  • HSV SENATOR GEN F(2013-2017)
  • HSV W427 E SERIES(2008-2009)
  • PONTIAC G8 1ST GEN(2007-2009)
  • VAUXHALL VXR8 E SERIES(2006-2013)
  • VAUXHALL VXR8 GEN F(2013-2017)
  • VAUXHALL VXR MALOO GEN F(2013-2017)
Notes: Important
Adds +0.5deg caster
Kits Required: 1

Warranty: Lifetime
Kit Contents:   2 Shell Bushings, 2 Tubes, 4 Washers, 2 Nuts, Install Guide, Grease
Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability through increased static caster and dynamic negative camber gain. In addition, synthetic elastomer bushings provide improved steering feedback and braking performance.
Features
  • Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • Specially bonded design for optimised strength typically required in high load bearing applications.
  • Precisely placed dampening voids further reduces harshness from sudden road inputs.
  • Articulation voids deliver necessary suspension articulation and/or compression under loads.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a limited lifetime warranty.

Kit Specifications

Bush
Type		 Bush
Qty		 OD
AA/AB		 ID
B		 L
C		 FL
D		 FL
OD		 C/Tube
QTY		 C/Tube
Size
16 2 69.8 mm 25.3 mm 81.5 mm 8.8 mm 41 mm 2 27x12.2x80 mm


Alignment Type Adjustment Type On Car Adjustable
Caster Offset No

  • CHEVROLET SS EK69(2013-2017)
  • HOLDEN CAPRICE WM(2006-2013)
  • HOLDEN CAPRICE WN(2013-2018)
  • HOLDEN COMMODORE VE(2006-2013)
  • HOLDEN COMMODORE VF(2013-2017)
  • HOLDEN STATESMAN WM(2006-2013)
  • HSV CLUBSPORT E SERIES(2006-2013)
  • HSV CLUBSPORT GEN F(2013-2017)
  • HSV GRANGE WM(2006-2013)
  • HSV GRANGE GEN F(2013-2016)
  • HSV GTS E SERIES(2006-2013)
  • HSV GTS GEN F(2013-2017)
  • HSV MALOO E SERIES(2007-2013)
  • HSV MALOO GEN F(2013-2017)
  • HSV SENATOR E SERIES(2006-2013)
  • HSV SENATOR GEN F(2013-2017)
  • HSV W427 E SERIES(2008-2009)
  • PONTIAC G8 1ST GEN(2007-2009)
  • VAUXHALL VXR8 E SERIES(2006-2013)
  • VAUXHALL VXR8 GEN F(2013-2017)
  • VAUXHALL VXR MALOO GEN F(2013-2017)
