Description

Notes: Important
Reduces axle tramp
Kits Required: 1

Warranty: Lifetime

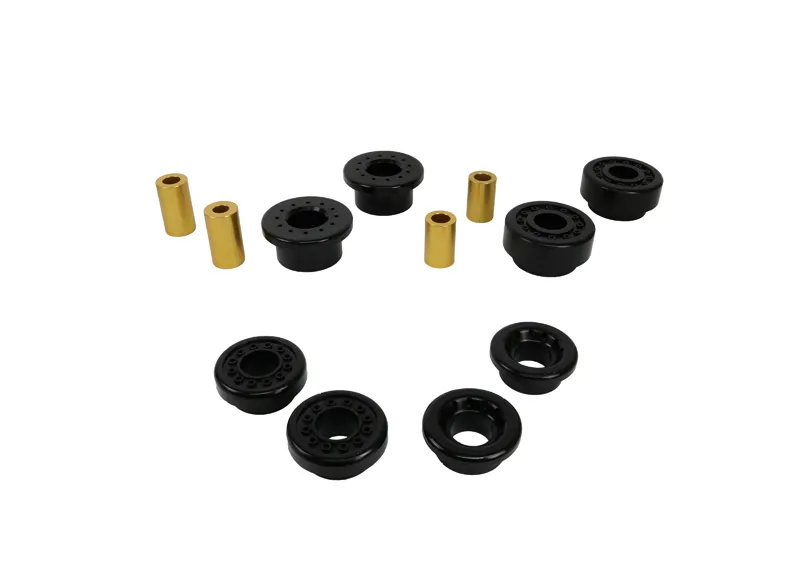

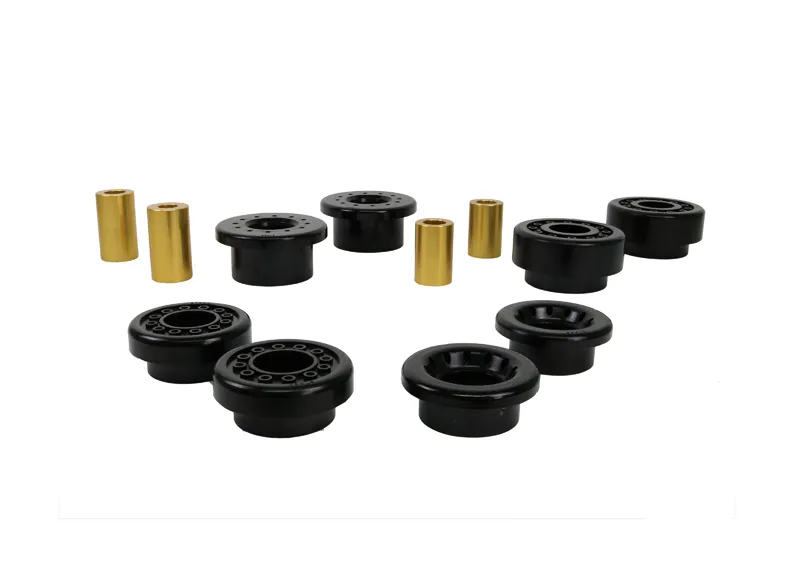

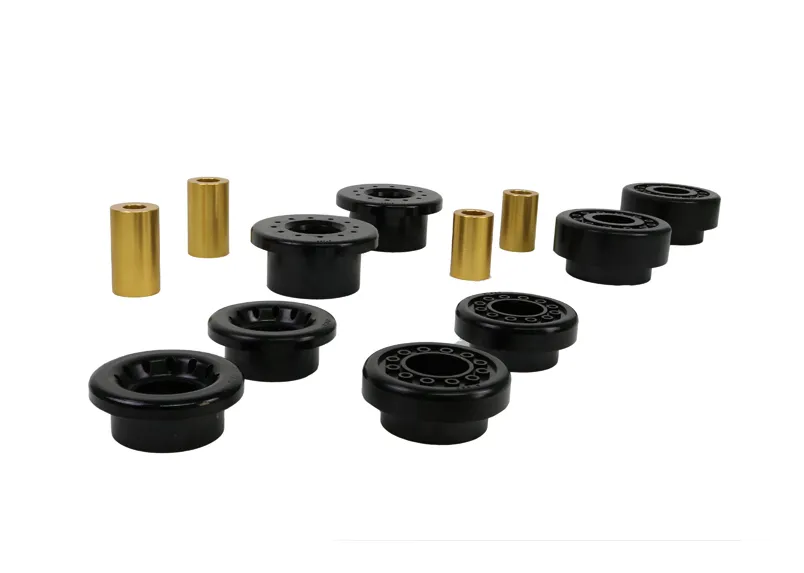

Kit Contents:   8 Bushings, 4 Tubes, Install Guide, Grease
The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Features
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
  • Precisely placed dampening voids further reduces harshness from sudden road inputs.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a limited lifetime warranty.

Specifications

Kit Specifications

Bush
Type		 Bush
Qty		 OD
A		 ID
B		 L
C		 FL
D		 FLOD
E		 C/Tube
QTY		 C/Tube
Size
1 2 75 mm 44 mm 43 mm 22 mm 103 mm 2 / 2 44x26.6x70.2 / 47.7x26.4x85.4 mm

1 2 75 mm 44 mm 40 mm 12.8 mm 102 mm 2 / 2 44x26.6x70.2 / 47.7x26.4x85.4 mm

1 2 96 mm 47.5 mm 62.8 mm 40.8 mm 128 mm 2 / 2 44x26.6x70.2 / 47.7x26.4x85.4 mm

1 2 96 mm 47.5 mm 62.2 mm 15.6 mm 130 mm 2 / 2 44x26.6x70.2 / 47.7x26.4x85.4 mm


Compatibility

  • CHEVROLET CAMARO FR 5TH GEN(2010-2012)
  • CHEVROLET CAMARO FR 5TH GEN(2013-2015)
  • HSV CLUBSPORT GEN F(2013-2017)
  • HSV GTS GEN F(2013-2017)
  • HSV MALOO GEN F(2013-2017)
  • HSV SENATOR GEN F(2013-2017)
  • VAUXHALL VXR MALOO GEN F(2013-2017)
Notes: Important
Reduces axle tramp
Kits Required: 1

Warranty: Lifetime
Kit Contents:   8 Bushings, 4 Tubes, Install Guide, Grease
The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Features
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
  • Precisely placed dampening voids further reduces harshness from sudden road inputs.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a limited lifetime warranty.
Kit Specifications

Bush
Type		 Bush
Qty		 OD
A		 ID
B		 L
C		 FL
D		 FLOD
E		 C/Tube
QTY		 C/Tube
Size
1 2 75 mm 44 mm 43 mm 22 mm 103 mm 2 / 2 44x26.6x70.2 / 47.7x26.4x85.4 mm

1 2 75 mm 44 mm 40 mm 12.8 mm 102 mm 2 / 2 44x26.6x70.2 / 47.7x26.4x85.4 mm

1 2 96 mm 47.5 mm 62.8 mm 40.8 mm 128 mm 2 / 2 44x26.6x70.2 / 47.7x26.4x85.4 mm

1 2 96 mm 47.5 mm 62.2 mm 15.6 mm 130 mm 2 / 2 44x26.6x70.2 / 47.7x26.4x85.4 mm

  • CHEVROLET CAMARO FR 5TH GEN(2010-2012)
  • CHEVROLET CAMARO FR 5TH GEN(2013-2015)
  • HSV CLUBSPORT GEN F(2013-2017)
  • HSV GTS GEN F(2013-2017)
  • HSV MALOO GEN F(2013-2017)
  • HSV SENATOR GEN F(2013-2017)
  • VAUXHALL VXR MALOO GEN F(2013-2017)
