Description

Kits Required: 1

Warranty: Lifetime

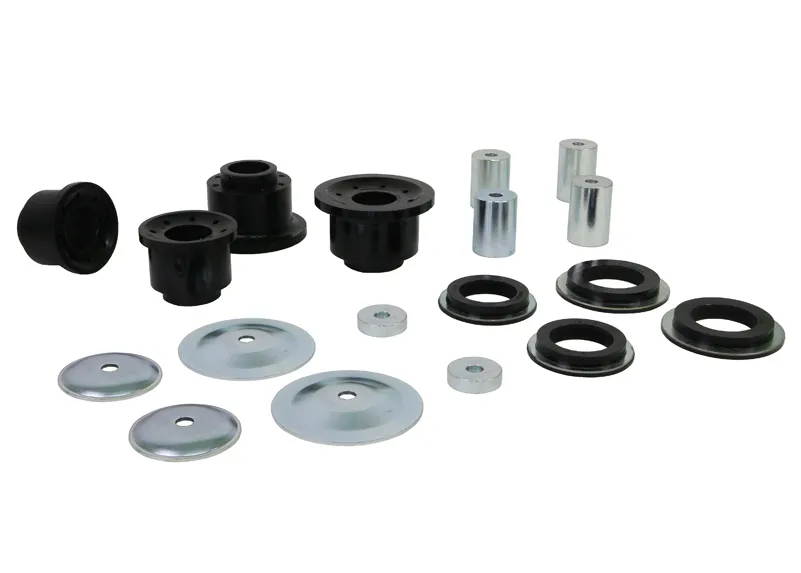

Kit Contents:   8 Bushings, 4 Tubes, 6 Washers, Install Guide, Grease

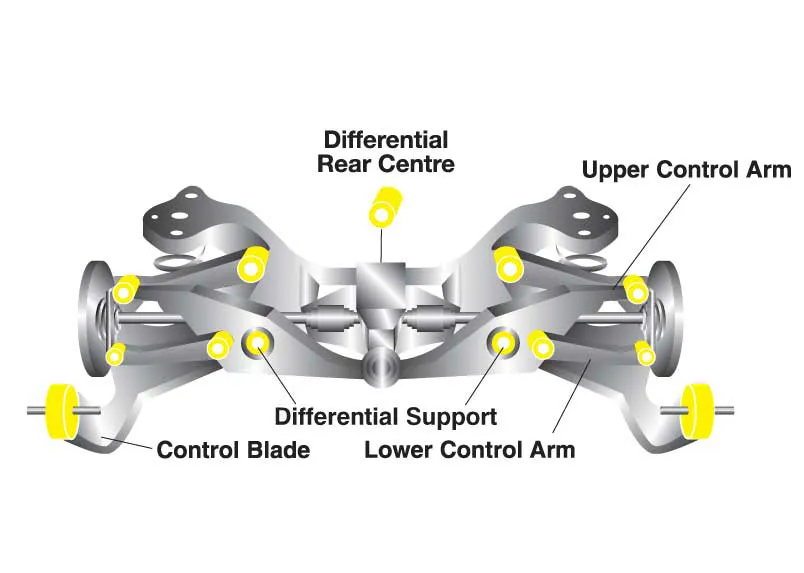

The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Features
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a limited lifetime warranty.

Specifications

Kit Specifications

Bush
Type		 Bush
Qty		 OD
A		 ID
B		 L
C		 FL
D		 FLOD
E		 C/Tube
QTY		 C/Tube
Size
8 2 A=76.5, B=55 mm 44.5 mm 70 mm 15 mm 91 mm 2 / 2 45x14x62 / 45x14x67 mm

1 2 90 mm 44.5 mm 75 mm 10 mm 120.4 mm 2 / 2 45x14x62 / 45x14x67 mm

1 2 76.5 mm 55 mm 15 mm 5 mm 91 mm 2 / 2 45x14x62 / 45x14x67 mm

1 2 90 mm 60.3 mm 15.6 mm 10 mm 110 mm 2 / 2 45x14x62 / 45x14x67 mm


Compatibility

  • CHRYSLER 300C LX INCL SRT8(2005-2011)
  • CHRYSLER 300 LD INCL SRT8(2011-ON)
  • DODGE CHALLENGER 3RD GEN INCL SRT8(2008-2011)
  • DODGE CHALLENGER 3RD GEN INCL SRT8(2011-ON)
  • DODGE CHARGER LX INCL SRT8(2008-2011)
  • DODGE CHARGER LD INCL SRT8(2011-ON)
  • DODGE MAGNUM LX INCL SRT8(2005-2008)
  • LANCIA THEMA(2011-ON)
Kits Required: 1

Warranty: Lifetime
Kit Contents:   8 Bushings, 4 Tubes, 6 Washers, Install Guide, Grease
The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Features
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase.
  • This Whiteline kit is covered by a limited lifetime warranty.
Kit Specifications

Bush
Type		 Bush
Qty		 OD
A		 ID
B		 L
C		 FL
D		 FLOD
E		 C/Tube
QTY		 C/Tube
Size
8 2 A=76.5, B=55 mm 44.5 mm 70 mm 15 mm 91 mm 2 / 2 45x14x62 / 45x14x67 mm

1 2 90 mm 44.5 mm 75 mm 10 mm 120.4 mm 2 / 2 45x14x62 / 45x14x67 mm

1 2 76.5 mm 55 mm 15 mm 5 mm 91 mm 2 / 2 45x14x62 / 45x14x67 mm

1 2 90 mm 60.3 mm 15.6 mm 10 mm 110 mm 2 / 2 45x14x62 / 45x14x67 mm

  • CHRYSLER 300C LX INCL SRT8(2005-2011)
  • CHRYSLER 300 LD INCL SRT8(2011-ON)
  • DODGE CHALLENGER 3RD GEN INCL SRT8(2008-2011)
  • DODGE CHALLENGER 3RD GEN INCL SRT8(2011-ON)
  • DODGE CHARGER LX INCL SRT8(2008-2011)
  • DODGE CHARGER LD INCL SRT8(2011-ON)
  • DODGE MAGNUM LX INCL SRT8(2005-2008)
  • LANCIA THEMA(2011-ON)
