Description

Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

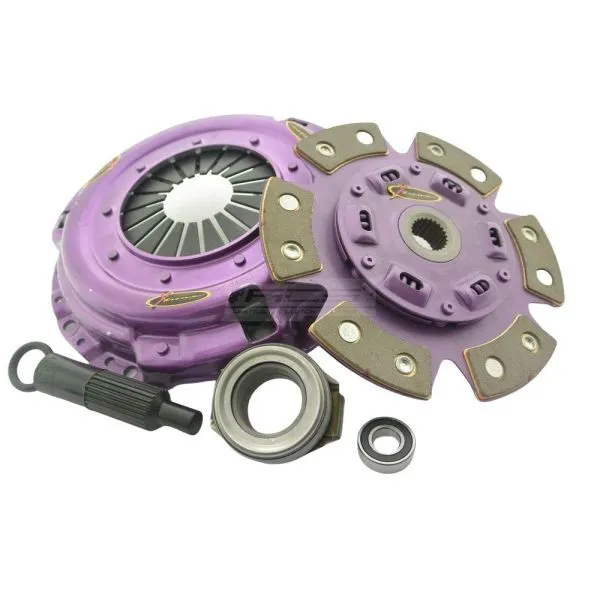

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    24

  • Hub Profile:

    26,0x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    2,8

  • Max. transferable engine torque [Nm]:

    410

  • Friction Lining Outer Diameter [mm]:

    220

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • Compatibility

    • 1995 - 1998 > HONDA > CIVIC > Petrol Engine 1.6 VTi (EK4) EJ,EK Hatchback 118KW
    • 1999 - 2000 > HONDA > CIVIC > Petrol Engine 1.6 i Vtec (EM1) EJ,EM1 Coupe 118KW
    • 1997 - 2000 > HONDA > CR-V > Petrol Engine 2.0 16V 4WD (RD1, RD3) RD SUV 94KW
    • 1999 - 2002 > HONDA > CR-V > Petrol Engine 2.0 16V 4WD (RD1, RD3) RD SUV 108KW
    • 1999 - 2001 > HONDA > INTEGRA > Petrol Engine 1.8 Type-R (DC2) DC Coupe 140KW
    • 1993 - 1999 > HONDA > INTEGRA > Petrol Engine 1.8 VTiR (DC2) DC Coupe 125KW
    • 1993 - 2001 > HONDA > INTEGRA > Petrol Engine 1.8 (DC2) DC Coupe 101KW
    • 1993 - 2001 > HONDA > INTEGRA > Petrol Engine 1.8 (DC2) DC Coupe 107KW

    Stage 2 -1B Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

    The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    24

  • Hub Profile:

    26,0x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Clutch Type:

    High-Performance Clutch

  • for flywheel depth [mm]:

    2,8

  • Max. transferable engine torque [Nm]:

    410

  • Friction Lining Outer Diameter [mm]:

    220

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

    • 1995 - 1998 > HONDA > CIVIC > Petrol Engine 1.6 VTi (EK4) EJ,EK Hatchback 118KW
    • 1999 - 2000 > HONDA > CIVIC > Petrol Engine 1.6 i Vtec (EM1) EJ,EM1 Coupe 118KW
    • 1997 - 2000 > HONDA > CR-V > Petrol Engine 2.0 16V 4WD (RD1, RD3) RD SUV 94KW
    • 1999 - 2002 > HONDA > CR-V > Petrol Engine 2.0 16V 4WD (RD1, RD3) RD SUV 108KW
    • 1999 - 2001 > HONDA > INTEGRA > Petrol Engine 1.8 Type-R (DC2) DC Coupe 140KW
    • 1993 - 1999 > HONDA > INTEGRA > Petrol Engine 1.8 VTiR (DC2) DC Coupe 125KW
    • 1993 - 2001 > HONDA > INTEGRA > Petrol Engine 1.8 (DC2) DC Coupe 101KW
    • 1993 - 2001 > HONDA > INTEGRA > Petrol Engine 1.8 (DC2) DC Coupe 107KW
