Description

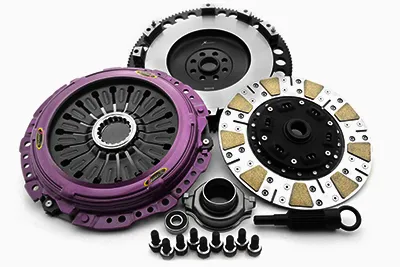

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.



Specifications

  • Flywheel Step (mm) - Flat
  • Clutch Disc Diameter (mm) - 240
  • Clutch Disc Spline Count - 24
  • Clutch Disc Spline Diameter (mm) - 25.4
  • Disc Type - Sprung
  • Friction Material - Ceramic
  • Stage - 2
  • Recommended Use -  Performance Street
  • Clamping Force % - Increase 26%
  • Torque (Nm) Inc FOS -  570
  • Torque (ftlbs) Inc FOS - 420
  • Spigot Bush/Bearing Included - Yes
  • Aligning Tool Included - Yes
  • Flywheel Included - Single Mass
  • Pressure Plate Bolts Included - Yes
  • Spline Grease Included - Yes
  • Weight (kg) - 15.7

Compatibility

  • 1991-1998 Nissan 180SX S13 (2 Door Coupe) 5 Speed Manual
  • 1994-2000 Nissan 200SX S14 (2 Door Coupe) 5 Speed Manual
  • 1991-1993 Nissan Silvia S13 (2 Door Coupe) 5 Speed Manual
  • 1993-1998 Nissan Silvia S14 (2 Door Coupe) 5 Speed Manual
  • 2000-2001 Nissan Silvia S15 (2 Door Convertible) 5 Speed Manual (Non Turbo)
  • 1999-2002 Nissan Silvia S15 (2 Door Coupe) 5 Speed Manual (Non Turbo)
  • 1993-1998 Nissan Silvia Ks S14 (2 Door Coupe) 5 Speed Manual

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.



  • Flywheel Step (mm) - Flat
  • Clutch Disc Diameter (mm) - 240
  • Clutch Disc Spline Count - 24
  • Clutch Disc Spline Diameter (mm) - 25.4
  • Disc Type - Sprung
  • Friction Material - Ceramic
  • Stage - 2
  • Recommended Use -  Performance Street
  • Clamping Force % - Increase 26%
  • Torque (Nm) Inc FOS -  570
  • Torque (ftlbs) Inc FOS - 420
  • Spigot Bush/Bearing Included - Yes
  • Aligning Tool Included - Yes
  • Flywheel Included - Single Mass
  • Pressure Plate Bolts Included - Yes
  • Spline Grease Included - Yes
  • Weight (kg) - 15.7
  • 1991-1998 Nissan 180SX S13 (2 Door Coupe) 5 Speed Manual
  • 1994-2000 Nissan 200SX S14 (2 Door Coupe) 5 Speed Manual
  • 1991-1993 Nissan Silvia S13 (2 Door Coupe) 5 Speed Manual
  • 1993-1998 Nissan Silvia S14 (2 Door Coupe) 5 Speed Manual
  • 2000-2001 Nissan Silvia S15 (2 Door Convertible) 5 Speed Manual (Non Turbo)
  • 1999-2002 Nissan Silvia S15 (2 Door Coupe) 5 Speed Manual (Non Turbo)
  • 1993-1998 Nissan Silvia Ks S14 (2 Door Coupe) 5 Speed Manual
