Description

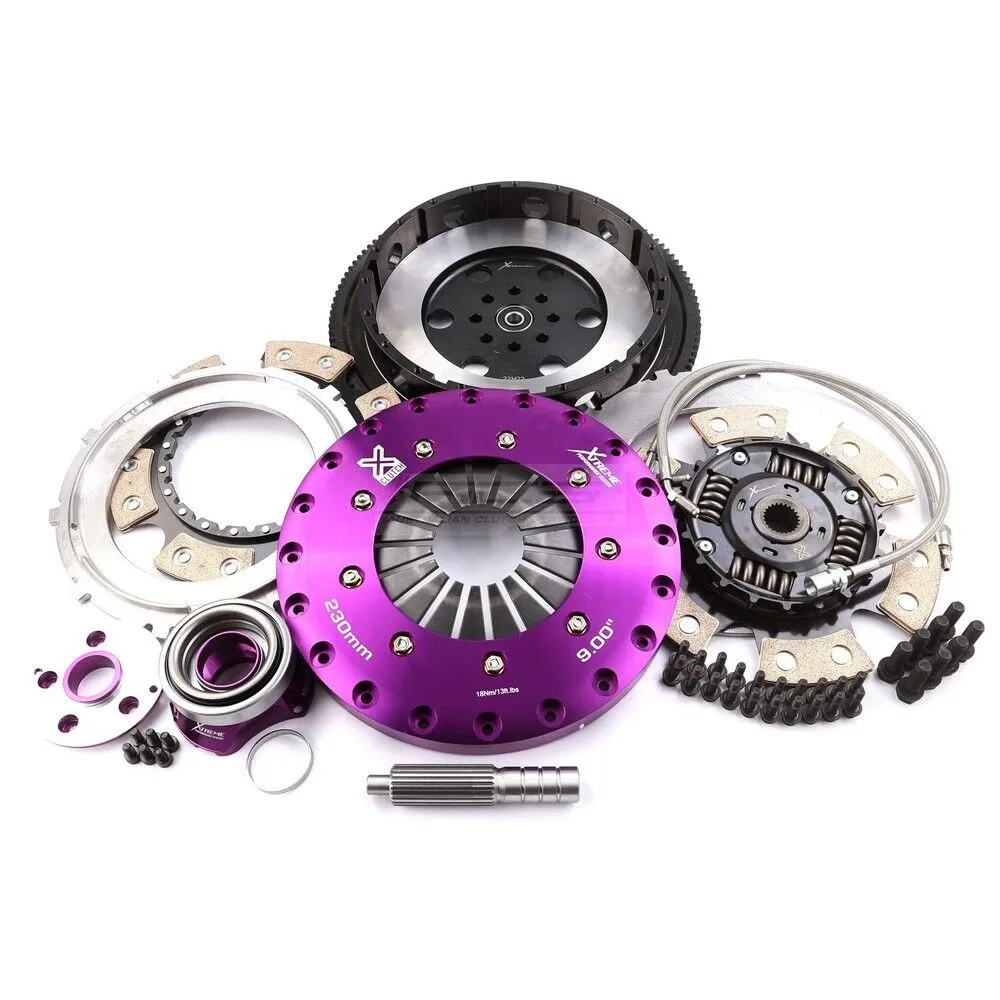

Twin Plate Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Transmission Type:

    Manual Transmission

  • Number of Teeth:

    24

  • Hub Profile:

    25,6 x 24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with pressure plate bolts

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Supplementary Article/Supplementary Info:

    for use in motor sport

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    with flywheel

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    3,8

  • Max. transferable engine torque [Nm]:

    1000

  • Friction Lining Outer Diameter [mm]:

    230

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

Compatibility

  • 2022 - 2024 > SUBARU > WRX > Petrol Engine 2.4 AWD (VBH) VB Sedan 202KW

Twin Plate Sprung Ceramic Clutch Kits are recommended for motorsport and track applications.

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Transmission Type:

    Manual Transmission

  • Number of Teeth:

    24

  • Hub Profile:

    25,6 x 24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with pressure plate bolts

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Supplementary Article/Supplementary Info:

    for use in motor sport

  • Clutch Type:

    High-Performance Clutch

  • Supplementary Article/Info 2:

    with flywheel

  • Supplementary Article/Info 2:

    With screw set

  • for flywheel depth [mm]:

    3,8

  • Max. transferable engine torque [Nm]:

    1000

  • Friction Lining Outer Diameter [mm]:

    230

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Ceramic

  • 2022 - 2024 > SUBARU > WRX > Petrol Engine 2.4 AWD (VBH) VB Sedan 202KW
