Description

Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

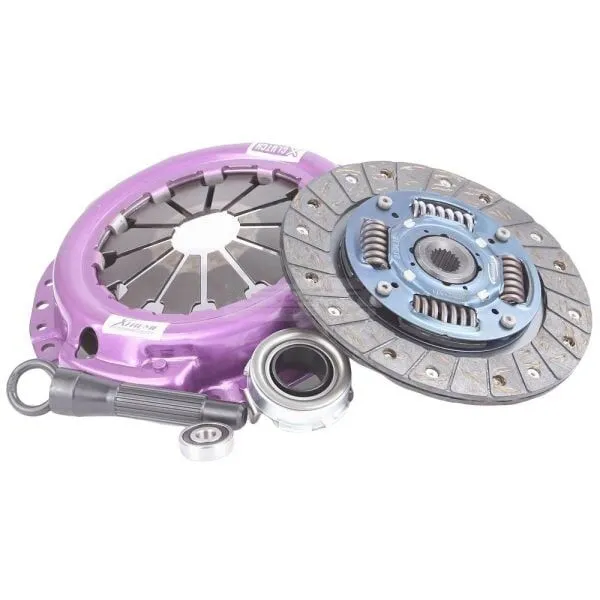

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate

This kit does not include:

  • Concentric Slave Cylinder
  • Flywheel

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    18

  • Hub Profile:

    19,3x18T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    170

  • Friction Lining Outer Diameter [mm]:

    190

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Organic

  • Compatibility

    • 1991 - 1994 > HOLDEN > BARINA > Petrol Engine 1.3 GL MH Hatchback 50KW
    • 1989 - 1991 > SUZUKI > SWIFT > Petrol Engine 1.3 GL MF Hatchback 50KW

    Stage 1A Sprung Organic Clutch Kits are recommended for Street use in vehicles with minor engine modifications.

    Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate

    This kit does not include:

    • Concentric Slave Cylinder
    • Flywheel

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    18

  • Hub Profile:

    19,3x18T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • Max. transferable engine torque [Nm]:

    170

  • Friction Lining Outer Diameter [mm]:

    190

  • Flywheel Profile:

    flat flywheel

  • Friction lining material:

    Organic

    • 1991 - 1994 > HOLDEN > BARINA > Petrol Engine 1.3 GL MH Hatchback 50KW
    • 1989 - 1991 > SUZUKI > SWIFT > Petrol Engine 1.3 GL MF Hatchback 50KW
