Description

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Specifications

Flywheel Step (mm) Flat
Clutch Disc Diameter (mm) 250
Clutch Disc Spline Count 14
Clutch Disc Spline Diameter (mm) 32
Disc Type Sprung
Friction Material Ceramic
Stage 2
Recommended Use Performance Street
Torque (Nm) Inc FOS 930
Torque (ftlbs) Inc FOS 690
Spigot Bush/Bearing Included Yes
Aligning Tool Included Yes
Flywheel Included Single Mass
Flywheel Bolts Included Yes
Pressure Plate Bolts Included Yes
Spline Grease Included Yes
Note Conversion to Single Mass Flywheel

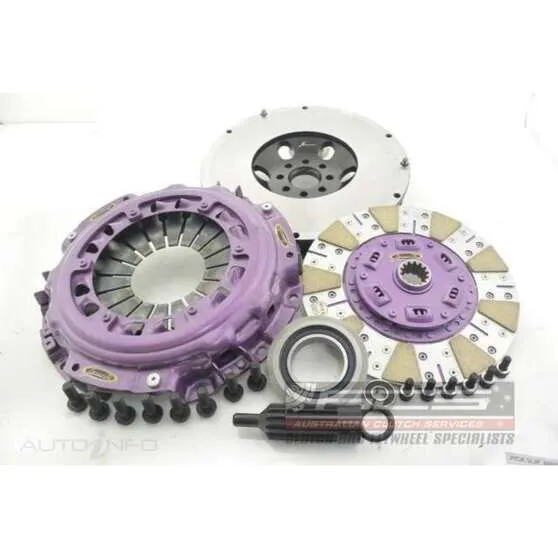

What's Included

  • Clutch Disc
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Compatibility

  • 1993 - 2002 > TOYOTA > SUPRA > Petrol Engine 3.0 i Bi-Turbo (JZA80_, JZA80R) _A8_ Coupe 243KW
  • 1993 - 2002 > TOYOTA > SUPRA > Petrol Engine 3.0 i Bi-Turbo (JZA80_, JZA80R) _A8_ Coupe 210KW

Stage 2 -1C Cushioned Ceramic Clutch Kits. The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Flywheel Step (mm) Flat
Clutch Disc Diameter (mm) 250
Clutch Disc Spline Count 14
Clutch Disc Spline Diameter (mm) 32
Disc Type Sprung
Friction Material Ceramic
Stage 2
Recommended Use Performance Street
Torque (Nm) Inc FOS 930
Torque (ftlbs) Inc FOS 690
Spigot Bush/Bearing Included Yes
Aligning Tool Included Yes
Flywheel Included Single Mass
Flywheel Bolts Included Yes
Pressure Plate Bolts Included Yes
Spline Grease Included Yes
Note Conversion to Single Mass Flywheel
  • Clutch Disc
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder
  • 1993 - 2002 > TOYOTA > SUPRA > Petrol Engine 3.0 i Bi-Turbo (JZA80_, JZA80R) _A8_ Coupe 243KW
  • 1993 - 2002 > TOYOTA > SUPRA > Petrol Engine 3.0 i Bi-Turbo (JZA80_, JZA80R) _A8_ Coupe 210KW
