Description

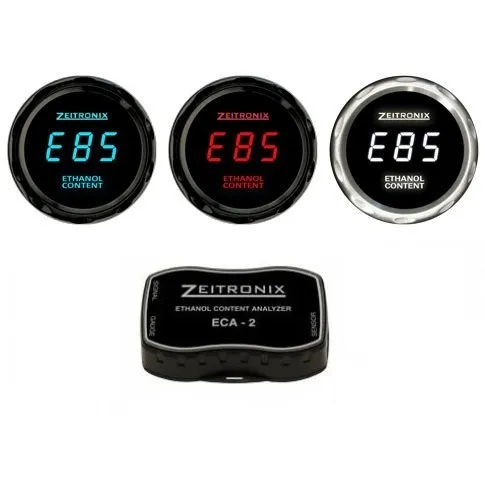

We offer new Flow Through Flex Fuel Sensor as a part of ECA-2 Kit, which includes the Ethanol Content Analyser, Flow Through Flex Fuel Sensor and ECA Harness with a correct connector.

What's your ethanol percentage?
The ethanol content of E85 fuel can vary from 60% to 92% ethanol. A fill up with E85 can drastically change the mix of fuel in your vehicle. For performance drivers determining actual ethanol content of E85 is essential to maximizing an engine tune and horsepower.

Why know your ethanol percentage?
E85 has the equivalent octane rating of 105 or higher octane fuel. Higher octane fuel is more resistant to knock allowing for more aggressive ignition timing, higher compression and increased engine power over gasoline itself.

The Zeitronix Ethanol Content Analyser helps you get the most out of your engine and fuel.

Specifications

  • Display Colour: Red
  • Measuring range: 0…100% Alcohol (ethanol) in fuel mixtures
  • Sensor Accuracy: 5% of the mixture ratio
  • Output characteristic: Linear
  • Operating temperature: Environment -40°C… +125°C, Fuel -40°C… +90°C
  • Maximum fuel pressure: 10 bar, (145 psi)
  • Maximum pressure drop: 0.1 bar, (1.45 psi)
  • Maximum flow: 200 l/h
  • Supply voltage: 6…18 Volts DC
  • Sensor Temperature error: < 1.5%
  • Response time: < 250 ms after power on at any temperature
  • Design: Suitable for the installation in motor vehicles, independent of position. Housing is waterproof.
  •
  •

Compatibility

  • Universal Part

We offer new Flow Through Flex Fuel Sensor as a part of ECA-2 Kit, which includes the Ethanol Content Analyser, Flow Through Flex Fuel Sensor and ECA Harness with a correct connector.

What's your ethanol percentage?
The ethanol content of E85 fuel can vary from 60% to 92% ethanol. A fill up with E85 can drastically change the mix of fuel in your vehicle. For performance drivers determining actual ethanol content of E85 is essential to maximizing an engine tune and horsepower.

Why know your ethanol percentage?
E85 has the equivalent octane rating of 105 or higher octane fuel. Higher octane fuel is more resistant to knock allowing for more aggressive ignition timing, higher compression and increased engine power over gasoline itself.

The Zeitronix Ethanol Content Analyser helps you get the most out of your engine and fuel.

  • Display Colour: Red
  • Measuring range: 0…100% Alcohol (ethanol) in fuel mixtures
  • Sensor Accuracy: 5% of the mixture ratio
  • Output characteristic: Linear
  • Operating temperature: Environment -40°C… +125°C, Fuel -40°C… +90°C
  • Maximum fuel pressure: 10 bar, (145 psi)
  • Maximum pressure drop: 0.1 bar, (1.45 psi)
  • Maximum flow: 200 l/h
  • Supply voltage: 6…18 Volts DC
  • Sensor Temperature error: < 1.5%
  • Response time: < 250 ms after power on at any temperature
  • Design: Suitable for the installation in motor vehicles, independent of position. Housing is waterproof.
  •
  •
  • Universal Part
