Description

Big power without breaking the budget! The Kinugawa Billet Ball Bearing GTX3076R Turbocharger is assembled with with a 4” Anti-Surge Compressor Housing and a T3 internally gated turbine housing with adjustable wastegate actuator. Full universal fitting kit is supplied to aid in installation, however additional components may be required for your particular vehicle fitment.

Specifications

  • A/R (Internally Gated): .63
  • Application: 1.8L~3.0L / 360~640 HP
  • Compressor Wheel: 58 mm / 76.6 mm / Trim 58 (11+0 GTX Billet Wheel with Extend Tip)
  • Turbine Wheel: 55 mm / 60 mm / Trim 84
  • Compressor Housing Inlet OD: 4"� / 100 mm
  • Compressor Housing Outlet OD: 2"� / 51 mm
  • Compressor Housing A/R: .60 w/ Anti Surge
  • Turbine Inlet Flange: T3
  • Turbine Outlet 5-Bolt
  • Turbine Housing A/R: .63 / .82
  • Wastegate: Internal Actuator
  • Actuator Pressure:1.0 Bar/14.7psi spring pre-installed (0.5bar, 0.8bar, 1.0bar, 1.2bar, 1.5bar, 1.8bar and 2.0bar springs available - Specify in shipping comments)
  • Turbo Situation: Brand New in box.
  • Bearing System: Ceramic Dual Ball Bearing
  • Cooling System: Oil & Water cooled

What's Included

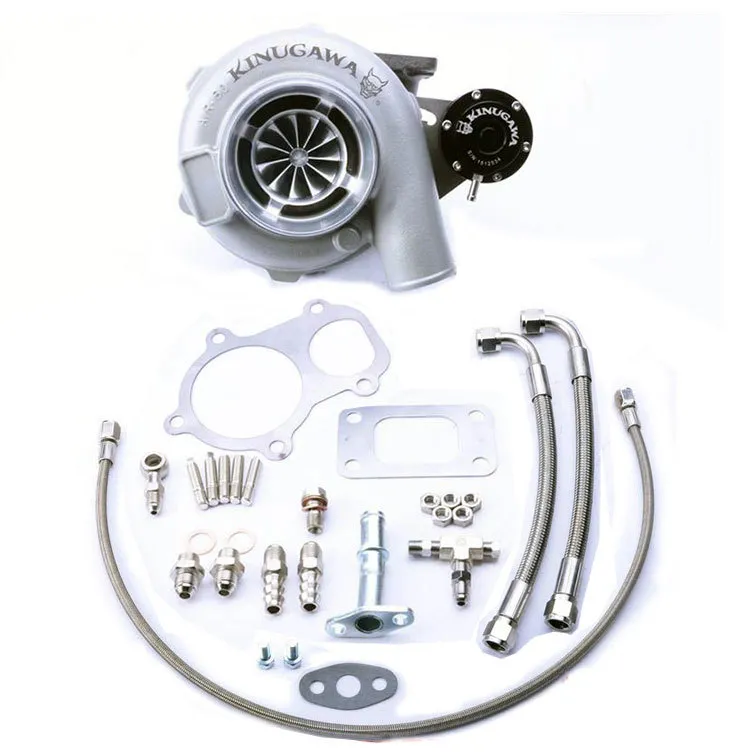

Everything shown on picture is supplied, including:

  • 1 x 70cm Oil Feed Line Kit with 1mm Restrictor for turbo Oil Feed Side
  • 2 x 30cm Water Feed / Return Line Kit
  • 1 x Turbo Oil Return Pipe Kit
  • 1 x Turbine Inlet Gasket
  • 1 x Turbine Outlet Gasket

Compatibility

  • Universal Fitment Only
