Description

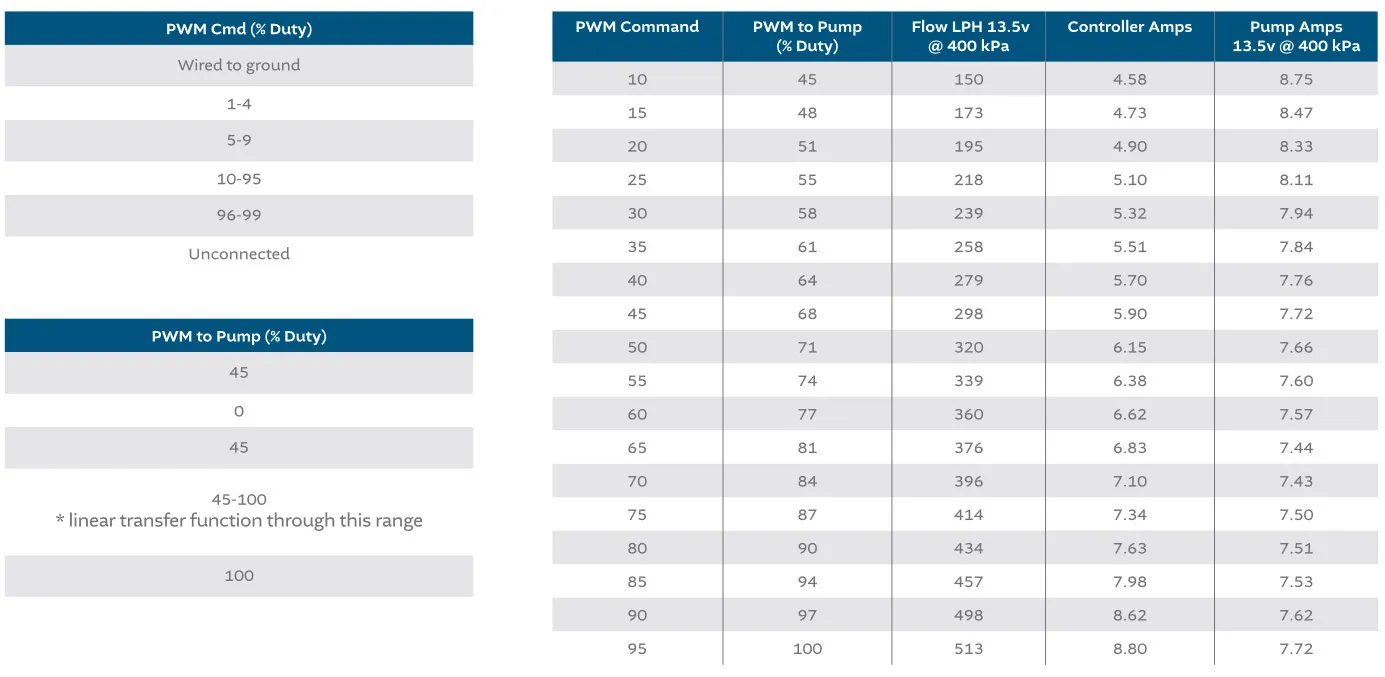

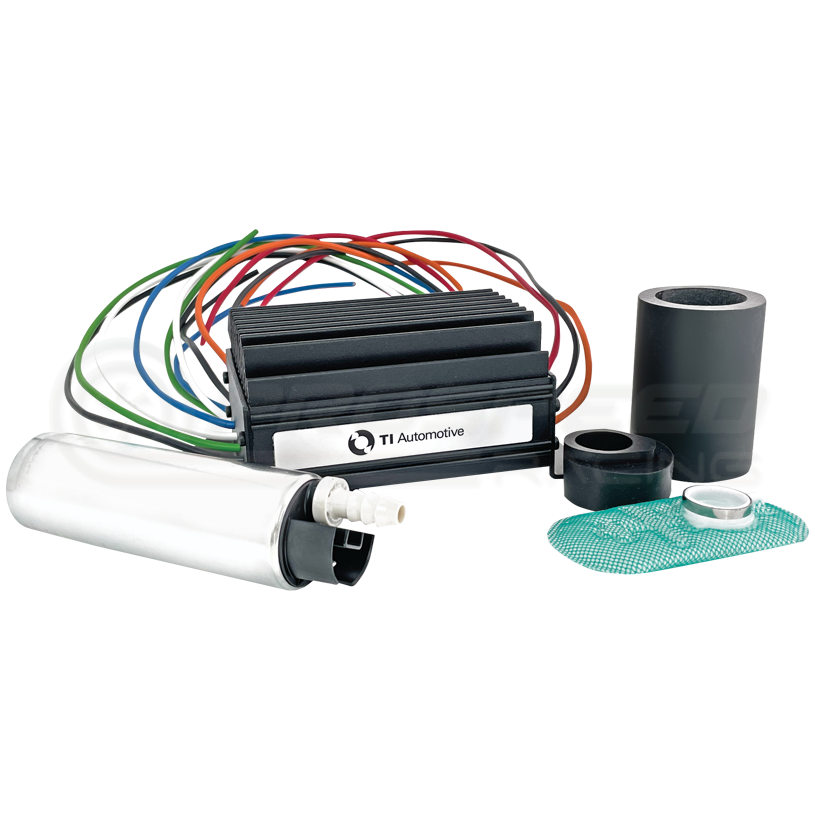

The Walbro BKS1001 is the next generation of our popular BKS1000 high pressure direct-fit fuel pump kit. Now with PWM (pulse-width modulation) control, you’ll enjoy a true three-step controller with functions for 100% duty cycle, 50% duty cycle by grounding the command wire, and full PWM command by wiring the input to a 100Hz battery level PWM signal. More customization at the controller level means more power for your ride.

  • Direct-fit replacement
  • PWM (pulse-width modulation) input command
  • Supports 1,000+ horsepower
  • High pressure, high flow E5LM brushless screw pump
  • Reduced system current draw
  • Suitable for naturally aspirated and boosted applications
  • Replaces current BKS1000 part number

Specifications

  • Fuel: GAS OR FLEX
  • Horsepower: 650 - 1000

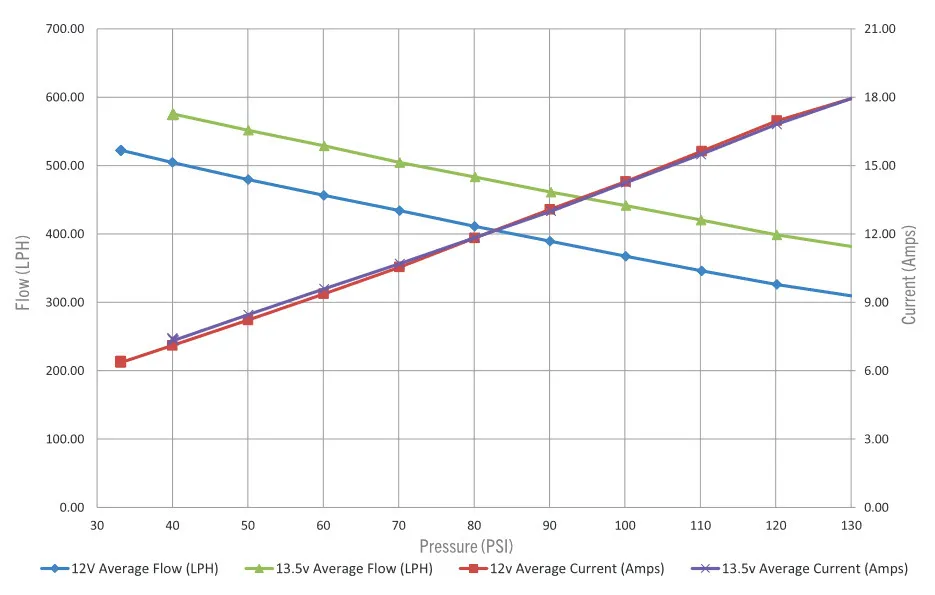

  • Flow @ 276 kPa: 400 lph - 550 lph
  • Flow @ 40 psi: 145 gph
  • Max System Pressure (psi): 112
  • Max System Pressure (kPa): 772
  • Inlet Diameter: 39 mm
  • Pump Type: In-Tank Pump Kit
  • Inlet Configuration: High output, in-tank, brushless fuel pump kit. Designed to fit most popular EFI applications

Compatibility

  • Universal Part

The Walbro BKS1001 is the next generation of our popular BKS1000 high pressure direct-fit fuel pump kit. Now with PWM (pulse-width modulation) control, you’ll enjoy a true three-step controller with functions for 100% duty cycle, 50% duty cycle by grounding the command wire, and full PWM command by wiring the input to a 100Hz battery level PWM signal. More customization at the controller level means more power for your ride.

  • Direct-fit replacement
  • PWM (pulse-width modulation) input command
  • Supports 1,000+ horsepower
  • High pressure, high flow E5LM brushless screw pump
  • Reduced system current draw
  • Suitable for naturally aspirated and boosted applications
  • Replaces current BKS1000 part number
  • Fuel: GAS OR FLEX
  • Horsepower: 650 - 1000
  • Flow @ 276 kPa: 400 lph - 550 lph
  • Flow @ 40 psi: 145 gph
  • Max System Pressure (psi): 112
  • Max System Pressure (kPa): 772
  • Inlet Diameter: 39 mm
  • Pump Type: In-Tank Pump Kit
  • Inlet Configuration: High output, in-tank, brushless fuel pump kit. Designed to fit most popular EFI applications
  • Universal Part
