Description

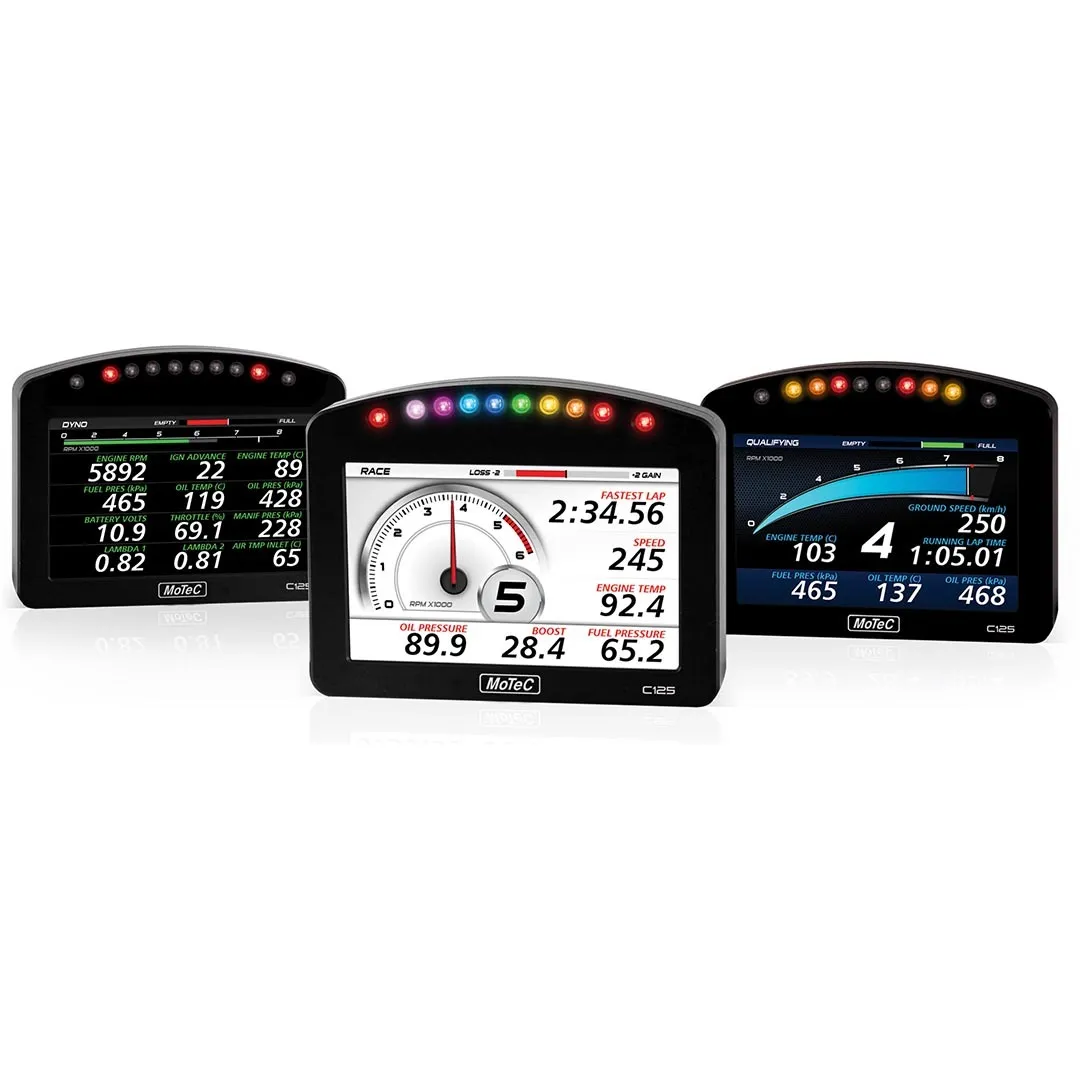

The C125 Race Display kit is a cost-effective, full colour, plug and play solution that offers professional level features witouth the hassle of a customised installation. It provides a complete, race-ready display system that can be adapted and expanded to suit various applications.

The C125 in this Kit can be upgraded to a logger at anytime, with both USB and internal logging options available.

The Display Can be fully customised using the optional Display Creator software and can incorporate live video from an on-board camera input.

Specifications

Motec | 18061 | Data Acquistion & Display

Kit Contains: 18060 - C125 Colour Display Logger, 61260 - C125 Accessory Kit with Loom (contains 41304 GPS L10 10 Hz, 61221 - Two Button Loom, 61225 - Network Cable RJ45 1.5m, 62204 - C125 Race Loom Terminated)

  • High resolution colour LCD display
  • Optional 120 MB internal logging and USB logging
  • Controller (with C125 I/O Upgrade – optional)
  • Display size 126 mm (5" approx)
  • High brightness for sunlight readability
  • Displayed channels, labels and colours are configurable on 10 supplied layouts and 16 colour schemes
  • 48 user-defined, scrollable message lines with programmable overrides
  • 3 programmable modes with customisable labels, e.g Practice, Warm-Up and Race
  • 10 full colour (RGB) LEDs; colour, function and intensity are fully programmable
  • Suitable for bikes, cars, marine and industrial applications
  • Supports Wideband Lambda from MoTeC PLMs or LTCs
  • Easily integrates with MoTeC CAN based products such as GPS, shift lights, ECUs and expanders. Full I/O expansion is available with use of E888 and E816 expanders.
  • GPS Lap Timing
  • Supports T2 Telemetry (optional)
  • Composite video input allows for live on-screen footage, for example from a rear view camera (requires Display Creator)
  • C125 now features an IP67 rated housing and diffused LEDs

Compatibility

  • Universal Part

The C125 Race Display kit is a cost-effective, full colour, plug and play solution that offers professional level features witouth the hassle of a customised installation. It provides a complete, race-ready display system that can be adapted and expanded to suit various applications.

The C125 in this Kit can be upgraded to a logger at anytime, with both USB and internal logging options available.

The Display Can be fully customised using the optional Display Creator software and can incorporate live video from an on-board camera input.

Motec | 18061 | Data Acquistion & Display

Kit Contains: 18060 - C125 Colour Display Logger, 61260 - C125 Accessory Kit with Loom (contains 41304 GPS L10 10 Hz, 61221 - Two Button Loom, 61225 - Network Cable RJ45 1.5m, 62204 - C125 Race Loom Terminated)

  • High resolution colour LCD display
  • Optional 120 MB internal logging and USB logging
  • Controller (with C125 I/O Upgrade – optional)
  • Display size 126 mm (5" approx)
  • High brightness for sunlight readability
  • Displayed channels, labels and colours are configurable on 10 supplied layouts and 16 colour schemes
  • 48 user-defined, scrollable message lines with programmable overrides
  • 3 programmable modes with customisable labels, e.g Practice, Warm-Up and Race
  • 10 full colour (RGB) LEDs; colour, function and intensity are fully programmable
  • Suitable for bikes, cars, marine and industrial applications
  • Supports Wideband Lambda from MoTeC PLMs or LTCs
  • Easily integrates with MoTeC CAN based products such as GPS, shift lights, ECUs and expanders. Full I/O expansion is available with use of E888 and E816 expanders.
  • GPS Lap Timing
  • Supports T2 Telemetry (optional)
  • Composite video input allows for live on-screen footage, for example from a rear view camera (requires Display Creator)
  • C125 now features an IP67 rated housing and diffused LEDs
  • Universal Part
