Description

Notes: Important
To hub adds +/- 1.5deg camber
Kits Required: 1

Warranty: 3 Year / 60,000Kms

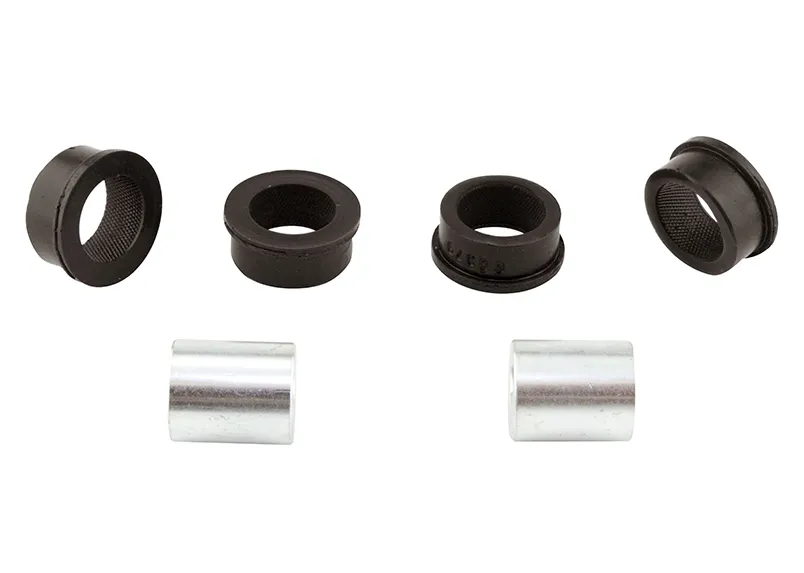

Kit Contents:   4 Bushings, 2 Tubes, Grease
Whiteline Fixed Camber kits provide additional camber angle resulting in increased grip during cornering and traction under power. The kit includes low compliance synthetic elastomer bushings which maintain preferred alignment settings as well as enhanced steering response.
Features
  • Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty.

Specifications

Kit Specifications

Kit Specifications

Bush
Type		 Bush
Qty		 OD
AA/AB		 ID
B		 L
C		 FL
D		 FL
OD		 C/Tube
QTY		 C/Tube
Size
1 4 36 mm 26 mm 16 mm 3.3 mm 40 mm 2 27x12.2x31.5 Offset Knurled mm


Alignment Type Adjustment Type On Car Adjustable
Camber Eccentric Yes

Compatibility

  • MAZDA RX7 FC SERIES IV, V(1985-1991)
Notes: Important
To hub adds +/- 1.5deg camber
Kits Required: 1

Warranty: 3 Year / 60,000Kms
Kit Contents:   4 Bushings, 2 Tubes, Grease
Whiteline Fixed Camber kits provide additional camber angle resulting in increased grip during cornering and traction under power. The kit includes low compliance synthetic elastomer bushings which maintain preferred alignment settings as well as enhanced steering response.
Features
  • Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty.
Kit Specifications

Kit Specifications

Bush
Type		 Bush
Qty		 OD
AA/AB		 ID
B		 L
C		 FL
D		 FL
OD		 C/Tube
QTY		 C/Tube
Size
1 4 36 mm 26 mm 16 mm 3.3 mm 40 mm 2 27x12.2x31.5 Offset Knurled mm


Alignment Type Adjustment Type On Car Adjustable
Camber Eccentric Yes
  • MAZDA RX7 FC SERIES IV, V(1985-1991)
