Description

Specifications

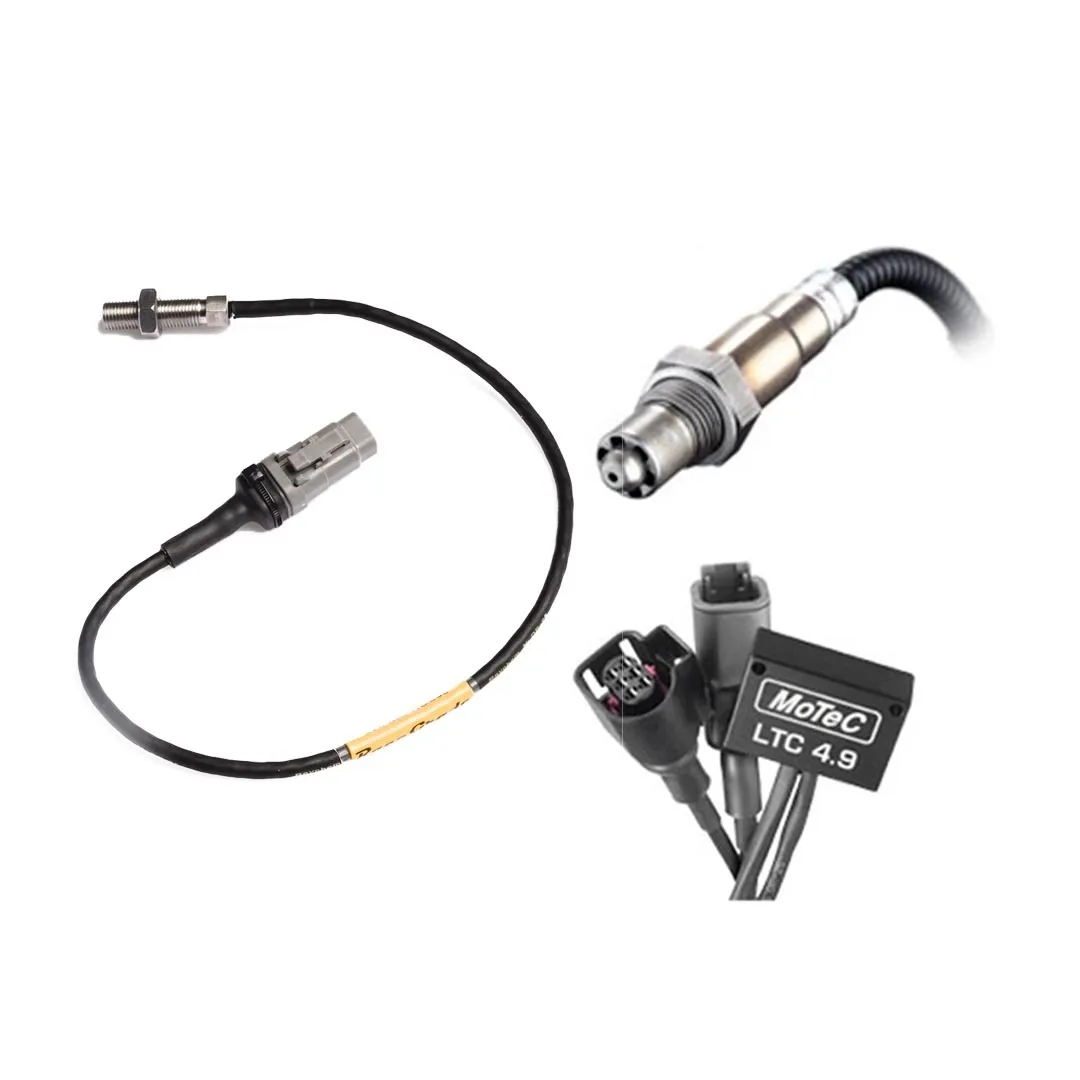

Motec | 41213 | Engine Management

Electrical

  • Output current
    • Continuous DC current 20 A (total)
    • Peak surge current 500 A
  • Max. operating frequency 50 kHz @ 28 V
  • Switching delay, typical
    • High to low 6.5 µsec
    • Low to high 6.5 µsec
  • Input threshold, typical
    • High 2.8 V
    • Low 2.1 V
  • Operating voltage
    • 7.0 V to 55 V with under voltage lockout

Physical

  • Size 31.4 x 38.0 x 14.0 mm
  • Weight approximately 60 grams plus connectors
  • Connectors
    • Power: 2 pin DTP Male
    • Motor /Output: 2 pin DTP Female
    • Input: 2 pin DTM Male
  • Maximum case temperature 125 °C

Compatibility

  • Universal Part

Motec | 41213 | Engine Management

Electrical

  • Output current
    • Continuous DC current 20 A (total)
    • Peak surge current 500 A
  • Max. operating frequency 50 kHz @ 28 V
  • Switching delay, typical
    • High to low 6.5 µsec
    • Low to high 6.5 µsec
  • Input threshold, typical
    • High 2.8 V
    • Low 2.1 V
  • Operating voltage
    • 7.0 V to 55 V with under voltage lockout

Physical

  • Size 31.4 x 38.0 x 14.0 mm
  • Weight approximately 60 grams plus connectors
  • Connectors
    • Power: 2 pin DTP Male
    • Motor /Output: 2 pin DTP Female
    • Input: 2 pin DTM Male
  • Maximum case temperature 125 °C
  • Universal Part
