Description

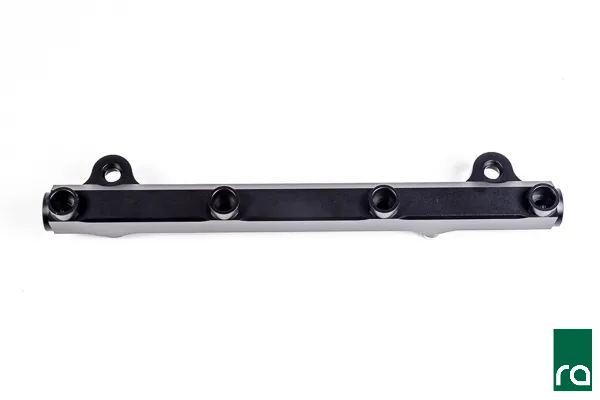

Radium Engineering Mitsubishi Evo X Fuel Rail Kit

Specifications

  • INLET PORT:

    •
    • 8AN ORB (3/4-16 O-ring)
    •
  •
  • *Can be adapted to any -AN hose size

  •
  • OUTLET PORT:

  •
    •
    • 3/8" NPT
    •
  •
  • *Install fuel pulse damper or use adapter for OEM pressure regulator or adapt to -AN hose fitting

  •
  • CENTER PORT:

  •
    •
    • 8AN ORB (3/4-16 O-ring)
    •
  •
  • *Plug or install pressure gauge/adapter or adapt to -AN hose and use as a feed/return port or install fuel pulse damper

What's Included

20-0112-02 Fuel Rail Kit

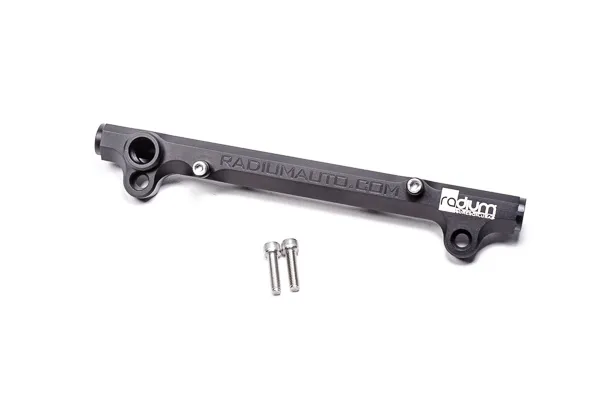

  • This basic kit includes only the items shown in the picture below. Replacement stainless steel fuel rail bolts and FPR line bolts are included. All fittings must be purchased separately.

20-0112-00 Fuel Rail Kit, OEM Configuration

This option includes everything shown in the picture below. This kit is a direct drop-in replacement for the OEM fuel rail.

  • (1)Radium Engineering Evolution X fuel rail with mounting hardware.
  • (1) 14-0144 5/16" SAE to -6AN Male fitting to adapt the incoming fuel line to -6AN male near the firewall.
  • (1) Pre-fabricated ethanol compliant 23" long -6AN PTFE hose with 90 degree swivel ends is included to replace the OEM fuel line.
  • (1) 14-0151 8AN ORB to 6AN Male Fitting to adapt the -6AN hose to fuel rail inlet port.
  • (1) Radium 14-0125 FPR Adapter is included for the 3/8" NPT outlet port permitting the reuse of the OEM pressure regulator.
  • (1) 14-0150 8AN ORB Plug is included for the center port.

Compatibility

  • 2007+ Mitsubishi Lancer Evolution X

Radium Engineering Mitsubishi Evo X Fuel Rail Kit

  • INLET PORT:

    •
    • 8AN ORB (3/4-16 O-ring)
    •
  •
  • *Can be adapted to any -AN hose size

  •
  • OUTLET PORT:

  •
    •
    • 3/8" NPT
    •
  •
  • *Install fuel pulse damper or use adapter for OEM pressure regulator or adapt to -AN hose fitting

  •
  • CENTER PORT:

  •
    •
    • 8AN ORB (3/4-16 O-ring)
    •
  •
  • *Plug or install pressure gauge/adapter or adapt to -AN hose and use as a feed/return port or install fuel pulse damper

20-0112-02 Fuel Rail Kit

  • This basic kit includes only the items shown in the picture below. Replacement stainless steel fuel rail bolts and FPR line bolts are included. All fittings must be purchased separately.

20-0112-00 Fuel Rail Kit, OEM Configuration

This option includes everything shown in the picture below. This kit is a direct drop-in replacement for the OEM fuel rail.

  • (1)Radium Engineering Evolution X fuel rail with mounting hardware.
  • (1) 14-0144 5/16" SAE to -6AN Male fitting to adapt the incoming fuel line to -6AN male near the firewall.
  • (1) Pre-fabricated ethanol compliant 23" long -6AN PTFE hose with 90 degree swivel ends is included to replace the OEM fuel line.
  • (1) 14-0151 8AN ORB to 6AN Male Fitting to adapt the -6AN hose to fuel rail inlet port.
  • (1) Radium 14-0125 FPR Adapter is included for the 3/8" NPT outlet port permitting the reuse of the OEM pressure regulator.
  • (1) 14-0150 8AN ORB Plug is included for the center port.
  • 2007+ Mitsubishi Lancer Evolution X
