Description

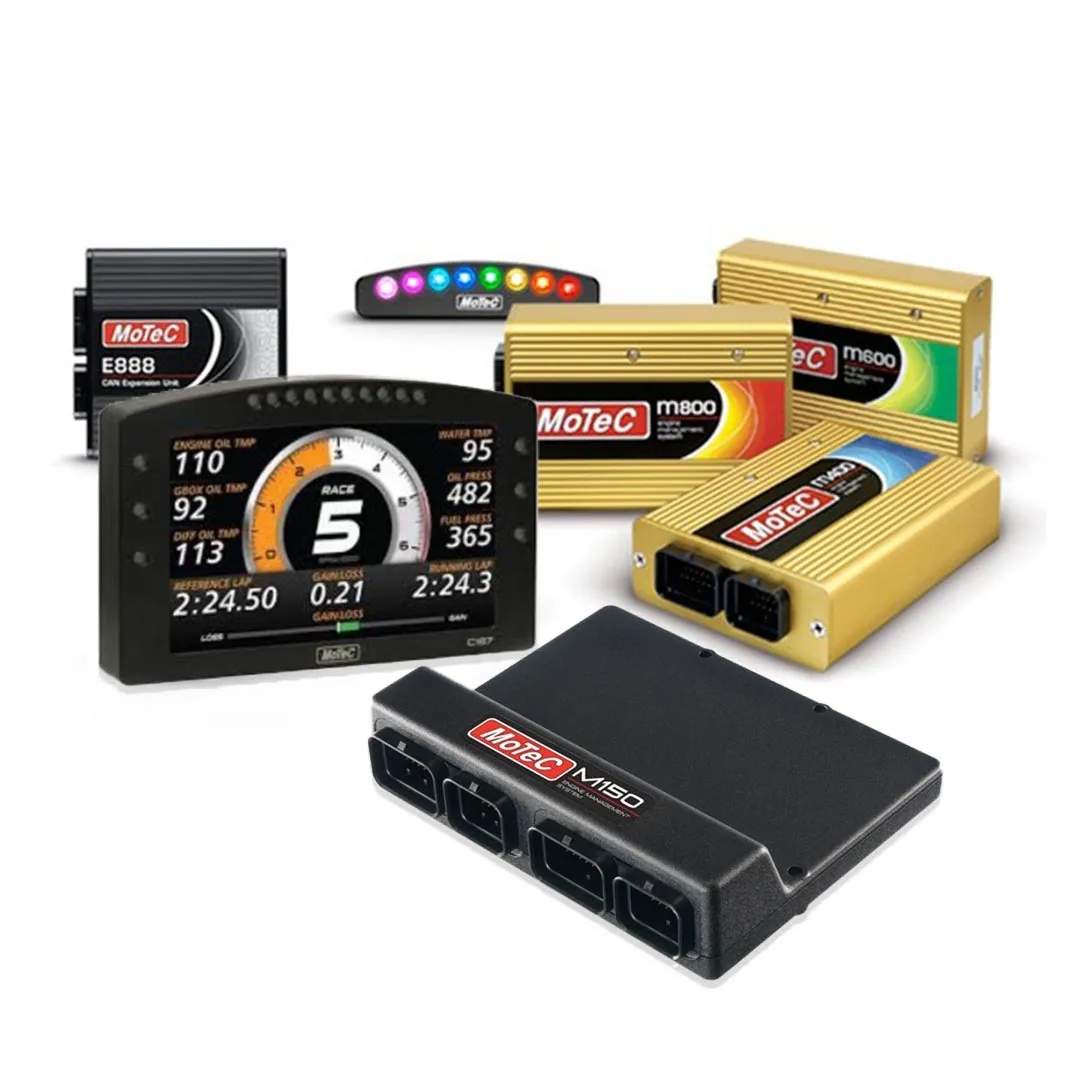

MoTeC's M1 ECU range begins a new era in engine control. The M1's unique technology redefines the meaning of customisation, delivering total control without compromise. Highly advanced security strategies make these ECU's ideal for both category managed and unrestricted applications.

Specifications

Motec | 13182 | Data Analysis

Injector

  • Direct Injector Outputs: 12
  • Low Side Injector Outputs: 6
  • Injector max hold current: 12 A
  • Injector max voltage: 90 V

Ignition

  • Outputs: 12

Auxiliary Outputs:

  • Half Bridge: 10

Inputs:

  • Universal Digital: 12
  • Digital: 4
  • Analogue Voltage: 17
  • Analogue Temperature: 6
  • Knock: 4
  • Lambda (narrow band): 2

Data:

  • CAN Bus: 3
  • RS232: 1
  • LIN: 1
  • Logging Memory: 250Mb

Physical:

  • Dimensions - 162 x 127.5 x 40.5mm
  • Weight: 540g
  • Autosport Connectors:
  • 1 x 55 Pin Green
  • 1 x 26 Pin Red
  • 1 x 55 Pin Red

Compatibility

  • Direct Injection Applications

MoTeC's M1 ECU range begins a new era in engine control. The M1's unique technology redefines the meaning of customisation, delivering total control without compromise. Highly advanced security strategies make these ECU's ideal for both category managed and unrestricted applications.

Motec | 13182 | Data Analysis

Injector

  • Direct Injector Outputs: 12
  • Low Side Injector Outputs: 6
  • Injector max hold current: 12 A
  • Injector max voltage: 90 V

Ignition

  • Outputs: 12

Auxiliary Outputs:

  • Half Bridge: 10

Inputs:

  • Universal Digital: 12
  • Digital: 4
  • Analogue Voltage: 17
  • Analogue Temperature: 6
  • Knock: 4
  • Lambda (narrow band): 2

Data:

  • CAN Bus: 3
  • RS232: 1
  • LIN: 1
  • Logging Memory: 250Mb

Physical:

  • Dimensions - 162 x 127.5 x 40.5mm
  • Weight: 540g
  • Autosport Connectors:
  • 1 x 55 Pin Green
  • 1 x 26 Pin Red
  • 1 x 55 Pin Red
  • Direct Injection Applications
