Description

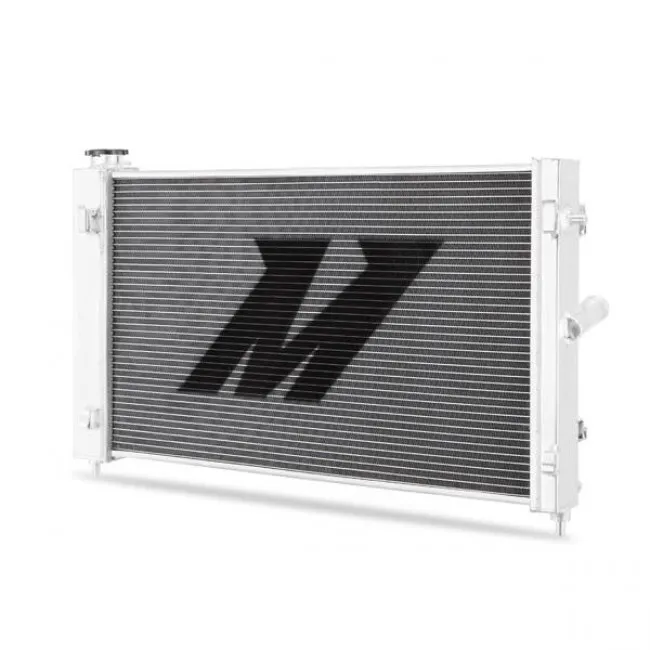

Every Mishimoto race aluminum radiator is designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly, protect your car from overheating on and off the track. Lightweight, made from 100% brazed aluminum, and cast end tanks TIG-welded for increased durability, Mishimoto race radiators will enhance the overall performance of your engine. Like all Mishimoto aluminum radiators, this race aluminum radiator comes with the signature Mishimoto Lifetime Warranty.

  • Direct fit for the 2005–2006 Pontiac GTO
  • Reduces coolant temperatures by +15°F (+6°C)
  • Large two-row brazed aluminum core increases fluid capacity by 0.64 L and provides ideal coolant temperatures on and off the track
  • All-aluminum construction with TIG-welded end tanks provides optimal heat dissipation and reliability
  • Applicable for both manual and automatic vehicles
  • Includes magnetic drain plug and 1.3 bar high-pressure radiator cap
  • Mishimoto Lifetime Warranty



TECH INFO:

  • Material - Aluminum
  • Engine Codes - LS-2 (6.0L)
  • Fits - 2005–2006 Vauxhall Monaro (5.7L/6.0L) / 2005–2006 Holden Monaro (6.0L Engine Only)
  • Overall Height - 31.95"
  • DPI - 2987
  • Drain Plug Length - 1.5mm
  • Drain Plug Thread Size - M12
  • Overall Length - 19.65"
  • Tank Wall Thickness - 0.08"
  • Outlet - 1.375"
  • Rows - 2
  • Inlet - 1.375"
  • Coolant Capacity - 3.58
  • Dual Pass - No
  • Overall Width - 6.38"
  • Core Length - 26.55"
  • Core Height - 17"
  • Core Size - 26.55" x 17.00"
  • Core Thickness - 1.96"
  • Fill Neck - 1.5"

Specifications

Compatibility

  • Pontiac GTO 2005-2006

Every Mishimoto race aluminum radiator is designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly, protect your car from overheating on and off the track. Lightweight, made from 100% brazed aluminum, and cast end tanks TIG-welded for increased durability, Mishimoto race radiators will enhance the overall performance of your engine. Like all Mishimoto aluminum radiators, this race aluminum radiator comes with the signature Mishimoto Lifetime Warranty.

  • Direct fit for the 2005–2006 Pontiac GTO
  • Reduces coolant temperatures by +15°F (+6°C)
  • Large two-row brazed aluminum core increases fluid capacity by 0.64 L and provides ideal coolant temperatures on and off the track
  • All-aluminum construction with TIG-welded end tanks provides optimal heat dissipation and reliability
  • Applicable for both manual and automatic vehicles
  • Includes magnetic drain plug and 1.3 bar high-pressure radiator cap
  • Mishimoto Lifetime Warranty



TECH INFO:

  • Material - Aluminum
  • Engine Codes - LS-2 (6.0L)
  • Fits - 2005–2006 Vauxhall Monaro (5.7L/6.0L) / 2005–2006 Holden Monaro (6.0L Engine Only)
  • Overall Height - 31.95"
  • DPI - 2987
  • Drain Plug Length - 1.5mm
  • Drain Plug Thread Size - M12
  • Overall Length - 19.65"
  • Tank Wall Thickness - 0.08"
  • Outlet - 1.375"
  • Rows - 2
  • Inlet - 1.375"
  • Coolant Capacity - 3.58
  • Dual Pass - No
  • Overall Width - 6.38"
  • Core Length - 26.55"
  • Core Height - 17"
  • Core Size - 26.55" x 17.00"
  • Core Thickness - 1.96"
  • Fill Neck - 1.5"
  • Pontiac GTO 2005-2006
