Dump cans are used in motorsports when quick fuel filling pit stops are essential. The main difference between a "dump can" and a common "fuel jug" is the vent architecture. For quick filling, air entering the can must replace the exiting fuel at the same rate. If not, a vacuum will create a flow restriction and produce a "gurgle" or "chug" effect.

Fortunately, the large 1.675" OD vent tube comes from the bottom minimizing refueling leaks. The vent tube is also typically used for filling the dump can.

DUMP CAN

The dump can is blow-molded from high density polyethylene (HDPE) which is safe for all fuel types (leaded gas, unleaded gas, diesel, AV gas, methanol, ethanol, E15, E85, etc.). There are true values momuded in "US Gallons" (shown below) on one side and and "Liters" on the opposite side.

The external rectangular shape was dimensionally designed to match industry standard (9.5" x 9.5"). This allows for easy securing and storing with other fuel jugs. The integrated vent handle has finger grips making it comfortable and ergonomic. The lip on the bottom serves as a secondary handle making refueling a painless task.

FILLER

An O-ring sealed fill cap secures to the HDPE dump can. Each billet anodized aluminum fill cap features machined knurling for positive grip.

NOTE: For race applications, the plastic pour spout can be cut to suit 2.5" and 3" dry breaks.

VENT CAP

The O-ring sealed anodized aluminum vent cap is standard with all dump cans. It features a threaded indicator that represents the fuel currently inside (leaded, unleaded, ethanol, methanol, diesel, pre-mix).

The integrated rubber flip vent valve can be used when quick filling is not required (ie: small fuel tanks).

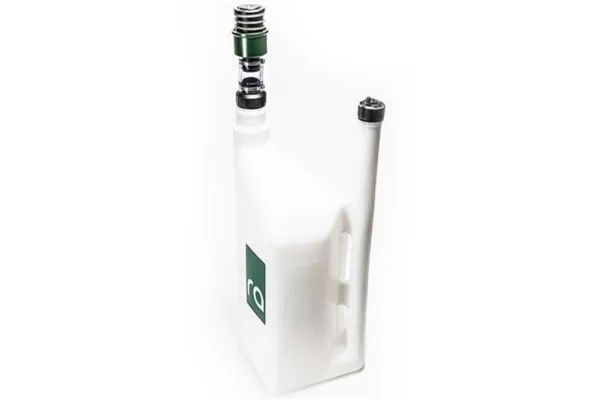

20-0697-01 QUICK FILL DUMP CAN, 6 GALLON, 1.5IN DRY BREAK

This option is compatible with Radium Engineering 1.5" female dry breaks (remote and direct fillers).

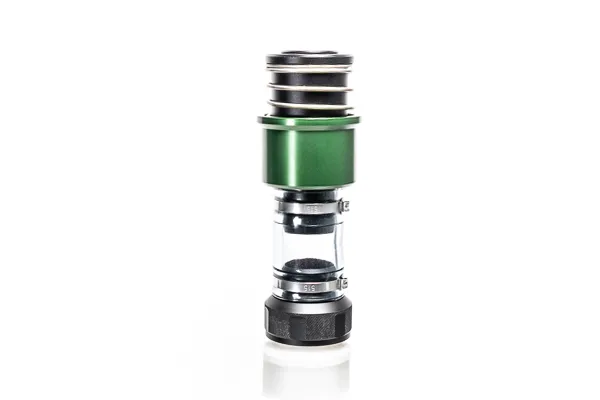

It features a clear coupler with stainless steel pinch clamps that secure the 1.5" male probe dry break.

NOTES:

1. The plastic pour spout can be cut to suit 2.5" and 3" dry breaks.
2. For maximum flow efficiency, the fuel tank (or fuel cell) should have a large vent (see Radium P/N: 20-0535).
