Description

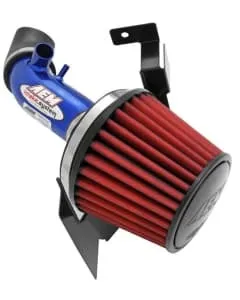

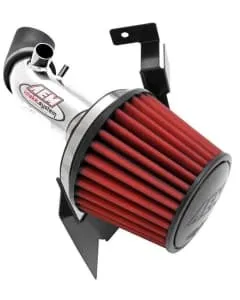

AEM Air Intake Systems are designed to produce massive horsepower and torque gains as well as better engine sound when used as a replacement for the factory airbox and air filter. AEM intake systems are designed, tuned, and dyno-tested to fit specific cars and trucks. These air intakes usually include an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration, and performance while allowing easy oil-free cleaning. Most AEM intake systems use mandrel-bent aluminum intake tubes, powder coated heat shields, and high quality hardware designed to reduce restriction and reduce intake temperature. The design and components of each intake system vary so consult the installation instructions for more information on the contents of each part number. AEM manufactures a variety of intake kit styles including short ram intakes, cold air intakes, dual-chamber intakes, Brute Force intakes for trucks and SUV's, and Brute Force HD intakes for diesel applications.
Specifications
- Product Style: AEM Short Ram Intake System
- Replacement Filter: 21-209DK
- Air Filter Colour: Red
- Air Filter Outlet Shape: Round
- Air Filter Height: 5.25 in (133 mm)
- Air Filter Material: Non-woven Synthetic
- Clamps Included: 7
- Clamp Material: Steel
- Clamp Style: Regular
- Mass Air Flow Sensor Adapter Included: Mass Air Flow Sensor Adapter Included When Required
- Intake Pipe Colour / Finish: Blue
- Intake Pipe Ports: All intake tube ports needed for the specified applications are included
- Vacuum Tubing Included: No
- Air Filter Large End Diameter: 7.5 in (191 mm)
- Colour: Blue
- Weight: 6 lb (2.7 kg)
- Product Box Length: 18.25 in (464 mm)
- Product Box Width: 14.5 in (368 mm)
- Product Box Height: 8.5 in (216 mm)
What's Included
- 1x Air Filter Assy 6.00 X 5”4.75” (21-209DK)
- 1x Short Pipe (2-4351)
- 1x Heat Shield (20-435)
- 1x Adapter, MAF/AF (2-681)
- 1x Bracket, Lancer Evo (32-3026)
- 1x Adapter Base (32-3027)
- 1x Hose, Adapter 2.50/3.00 X 3” 45 (5-273-45)
- 1x Hose, Silicone 3.00x2” Black (5-302)
- 1x Mount, Rubber 1” X 6mm (1228599)
- 1x Grommet,1/8” (784631)
- 1x Rubber Edge Trim 17” (8-3017)
- 1x Hose, 1-1/4I.D. X 1.5” Long (65005-1)
- 1x Connector, Plastic 1/8” Straight (8-103)
- 5x Bolt, Hex/Flange M6-1 X 20 (1-2038)
- 4x Washer, M6 X 12mm OD Zinc (1-3018)
- 2x Washer, 6mm Soft Mount (559999)
- 5x Nut, M6 Hex Serrated (444.460.04)
- 1x Hose Clamp,1.5 (103-BLO-2420)
- 1x Hose Clamp, 3/4” (4093-5)
- 1x 1/2” Bnd. Hose Clamp, 2.31-3.25” (9444)
- 2x 1/2” Bnd. Hose Clamp, 2.56”-3.50” (9448)
- 1x 1/2” Bnd. Hose Clamp, 2.90”-3.75” (9452)
- 1x 1/2” Bnd. Hose Clamp, 4.125-7.00” (94104)
Compatibility
- 2006 Mitsubishi Lancer EVOLUTION 2.0L L4 F/I - All
- 2005 Mitsubishi Lancer EVOLUTION 2.0L L4 F/I - All
- 2004 Mitsubishi Lancer EVOLUTION 2.0L L4 F/I - All
- 2003 Mitsubishi Lancer EVOLUTION 2.0L L4 F/I - All
