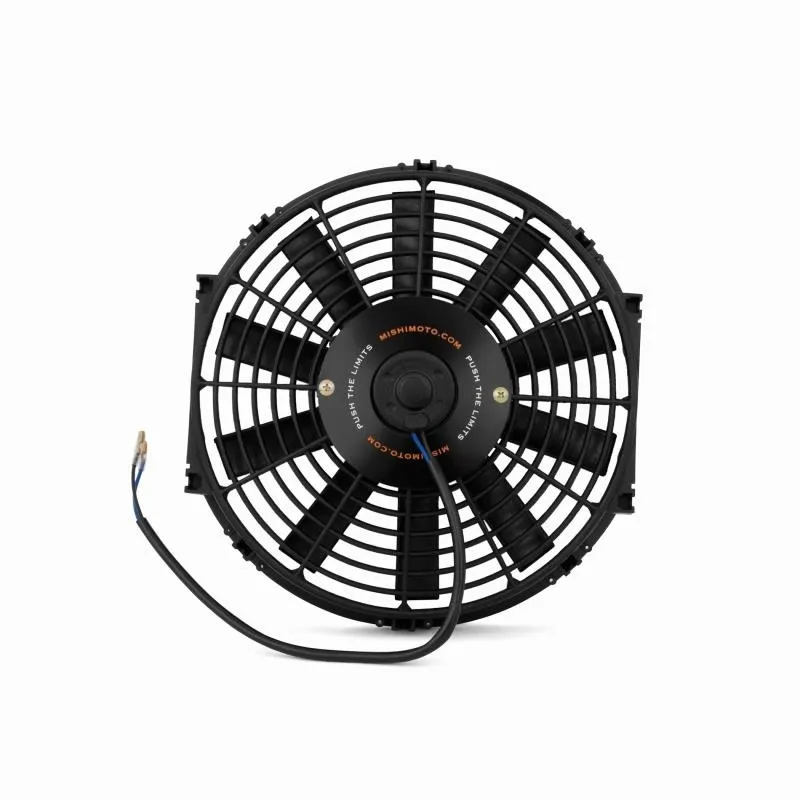

Description



This fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT)

  • High-flow fan provides 950 cfm of airflow
  • Universal fitment
  • Compact design with a diameter of 10" and an overall thickness of only 2.36" provides increased engine bay space
  • Easily reversible for use as a pusher or puller fan
  • Mishimoto Lifetime Warranty



TECH INFO:

  • Type of Ends - Female Snap-Plug Terminal
  • Material - Plastic
  • Air Temp While Tested - 72°F
  • Color - Black
  • Normal Current (amps) - 6.8
  • Volts - 12
  • Housing Diameter - 11.5
  • Blade Diameter - 256
  • Overall Thickness - 2.36"
  • Reverse - Yes
  • Blade Style - Straight
  • Inrush Current (amps) - 13.08
  • # of Blades - 10
  • Fan RPM - 2300
  • Fan Diameter - 10
  • Overall Depth - 60
  • CFM - 950


Kit Includes:
  • Mishimoto Fan
  • Mishimoto Lifetime Warranty

Specifications

CFM
950

Fan Diameter
255mm

Fan RPM
2300

Number of Blades
10

Inrush Current (Amps)
13.08

Blade count
10

Blade style
Straight

Motor can run in reverse
Yes

Type of ends
Loose

Blade Diameter
10

Housing Diameter
11.5

Normal Current (Amps)
6.8

Voltage
12

Air Temp While Tested
72°F

What's Included

  • Mishimoto Fan

  • Limited Lifetime Warranty

Compatibility

  • Universal Part



This fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT)

  • High-flow fan provides 950 cfm of airflow
  • Universal fitment
  • Compact design with a diameter of 10" and an overall thickness of only 2.36" provides increased engine bay space
  • Easily reversible for use as a pusher or puller fan
  • Mishimoto Lifetime Warranty



TECH INFO:

  • Type of Ends - Female Snap-Plug Terminal
  • Material - Plastic
  • Air Temp While Tested - 72°F
  • Color - Black
  • Normal Current (amps) - 6.8
  • Volts - 12
  • Housing Diameter - 11.5
  • Blade Diameter - 256
  • Overall Thickness - 2.36"
  • Reverse - Yes
  • Blade Style - Straight
  • Inrush Current (amps) - 13.08
  • # of Blades - 10
  • Fan RPM - 2300
  • Fan Diameter - 10
  • Overall Depth - 60
  • CFM - 950


Kit Includes:
  • Mishimoto Fan
  • Mishimoto Lifetime Warranty

CFM
950

Fan Diameter
255mm

Fan RPM
2300

Number of Blades
10

Inrush Current (Amps)
13.08

Blade count
10

Blade style
Straight

Motor can run in reverse
Yes

Type of ends
Loose

Blade Diameter
10

Housing Diameter
11.5

Normal Current (Amps)
6.8

Voltage
12

Air Temp While Tested
72°F

  • Mishimoto Fan

  • Limited Lifetime Warranty

  • Universal Part
