Description

  • Zeitronix nDash display is Preconfigured for easy Plug and Play use with the Zt-2, Zt-3 or combination of both.
  • Display and data log AFR, RPM, EGT, Vacuum/Boost, TPS, and configurable User Inputs from one or two Zt-2s
  • Run a Dual Zt-2 or Zt-3 configuration for left and right cylinder bank AFR values!
  • 4.4" Touch-Screen offers 480x272 resolution using TFT LCD technology.
  • 24-bit full color display with contrast ratio of 350:1
  • Dimensions are 5” x 3” x 0.75”, weight is only 0.5 lbs, (127mm x 77mm x 19mm, 275 grams)
  • Full OBDII support for display of parameters such as Mass Air Flow, Spark Advance, Coolant Temperature, and many more! (OBDII is not required for use with the Zt-2 and Zt-3.)
  • Generic OBDII, Enhanced Ford, Chrysler and GM drivers.
  • For additional two channels nDash analog inputs are mapped to Zeitronix sensors.
  • Data logging support onto removable memory card -- no laptop or PDA required.
  • Auto Adjusting backlight, night mode, and low power standby.
  • Calculate Horsepower, Torque, 0 to 60 Performance, MPG and set configurable trip counters.
  • Diagnose and clear check engine light error codes.
  • OBDII and Plug and Play Zeitronix Zt-2 cables included.
  • N-Dash Zt-2 license included
  • Simple and secure windshield-mounted display.



Data Logging


  • Log Zt-2, Zt-3 data and OBDII data on optional MMC/SD memory cards (up to 4GB in size).
  • Supports Full OBDII for 1996 and newer vehicles (Zt-2 parameters from any vehicle)
  • Log and View up to 24 parameters at once for hours at a time
  • Zt-2 to N-Dash connector cable included
  • Connect two to log left and right cylinder banks in our Dual Zt-2 configuration

Specifications

What's Included

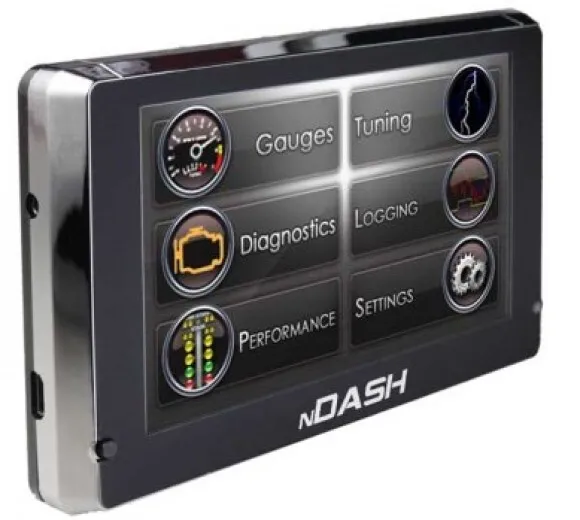

  • Zeitronix nDash Display: Full color, touch screen display.
  • Windshield Mount: Sticks to your windshield using a suction cup and lever. The lever increases the suction when mounting and then functions as a quick release when removing the display. Direction and angles are fully adjustable.
  • Zt-2 Cable: Connects to the Zt-2 Serial Data Cable and to back of DashDAQ Display. The Orange and Brown wiring allow for a Second Zt-2 to be connected! (Dual-Zt-2 connector available separately)
  • OBDII Cable: Connect to your vehicles OBDII port. Both the Zt-2 cable and OBDII cable can be used simultaneously.
  • USB Cable: Use this to connect the Zeitronix-DashDAQ display to a computer for software updates and new features.

Compatibility

  • Universal Part
  • Zeitronix nDash display is Preconfigured for easy Plug and Play use with the Zt-2, Zt-3 or combination of both.
  • Display and data log AFR, RPM, EGT, Vacuum/Boost, TPS, and configurable User Inputs from one or two Zt-2s
  • Run a Dual Zt-2 or Zt-3 configuration for left and right cylinder bank AFR values!
  • 4.4" Touch-Screen offers 480x272 resolution using TFT LCD technology.
  • 24-bit full color display with contrast ratio of 350:1
  • Dimensions are 5” x 3” x 0.75”, weight is only 0.5 lbs, (127mm x 77mm x 19mm, 275 grams)
  • Full OBDII support for display of parameters such as Mass Air Flow, Spark Advance, Coolant Temperature, and many more! (OBDII is not required for use with the Zt-2 and Zt-3.)
  • Generic OBDII, Enhanced Ford, Chrysler and GM drivers.
  • For additional two channels nDash analog inputs are mapped to Zeitronix sensors.
  • Data logging support onto removable memory card -- no laptop or PDA required.
  • Auto Adjusting backlight, night mode, and low power standby.
  • Calculate Horsepower, Torque, 0 to 60 Performance, MPG and set configurable trip counters.
  • Diagnose and clear check engine light error codes.
  • OBDII and Plug and Play Zeitronix Zt-2 cables included.
  • N-Dash Zt-2 license included
  • Simple and secure windshield-mounted display.



Data Logging


  • Log Zt-2, Zt-3 data and OBDII data on optional MMC/SD memory cards (up to 4GB in size).
  • Supports Full OBDII for 1996 and newer vehicles (Zt-2 parameters from any vehicle)
  • Log and View up to 24 parameters at once for hours at a time
  • Zt-2 to N-Dash connector cable included
  • Connect two to log left and right cylinder banks in our Dual Zt-2 configuration
  • Zeitronix nDash Display: Full color, touch screen display.
  • Windshield Mount: Sticks to your windshield using a suction cup and lever. The lever increases the suction when mounting and then functions as a quick release when removing the display. Direction and angles are fully adjustable.
  • Zt-2 Cable: Connects to the Zt-2 Serial Data Cable and to back of DashDAQ Display. The Orange and Brown wiring allow for a Second Zt-2 to be connected! (Dual-Zt-2 connector available separately)
  • OBDII Cable: Connect to your vehicles OBDII port. Both the Zt-2 cable and OBDII cable can be used simultaneously.
  • USB Cable: Use this to connect the Zeitronix-DashDAQ display to a computer for software updates and new features.
  • Universal Part
